M800S/M80/E80 Series Connection and Setup Manual
30 Adjust S-analog Screen
540
IB-1501269-J

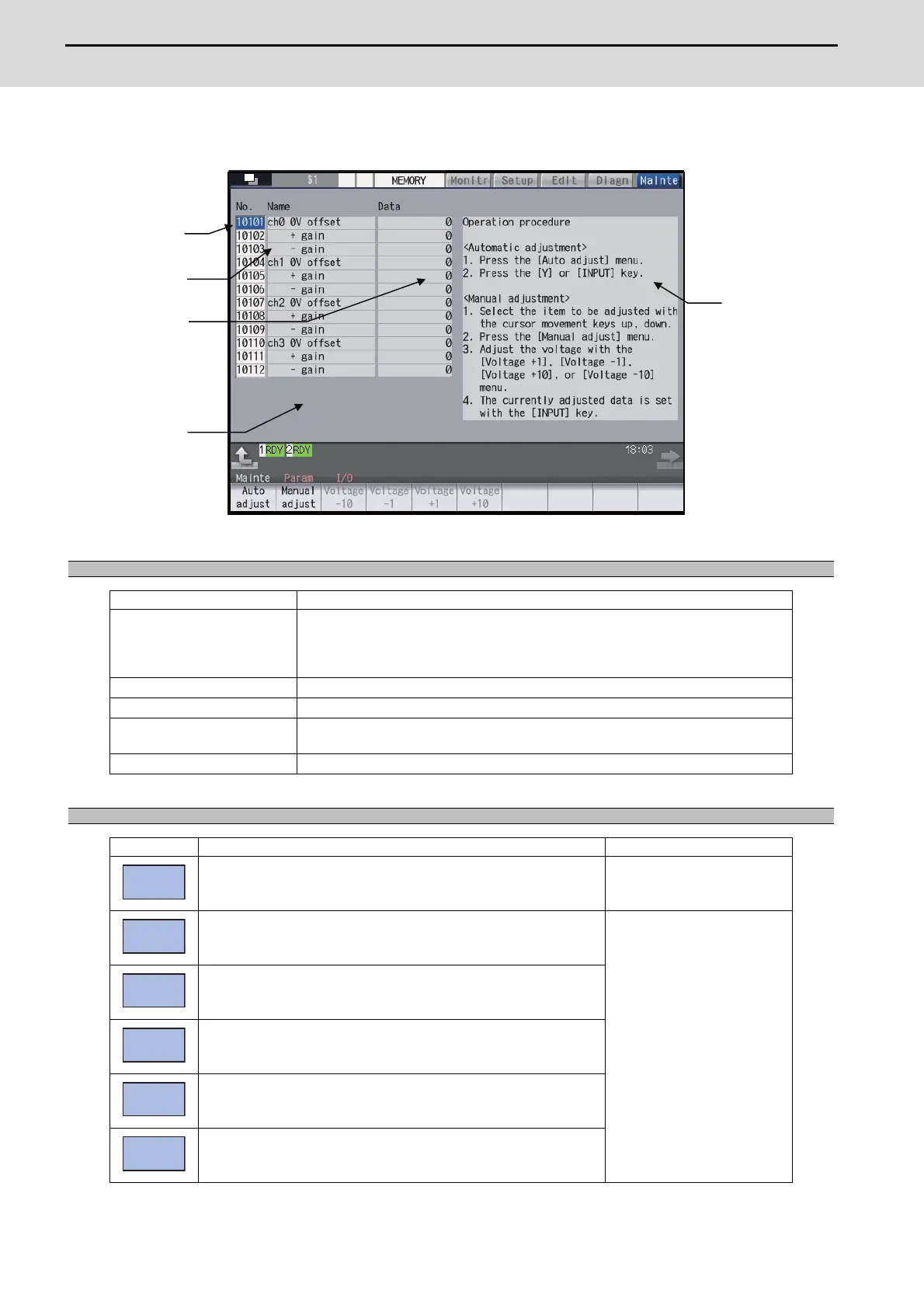

The spindle analog output adjustment is carried out on this screen.
Display items
Display item Details
(1) Parameter No.
This is a number to be used when inputting/outputting the parameters.
For manual adjustments, this uses the [ ↑ ] [ ↓ ] keys to move the cursor to the setting item
to be adjusted.
The cursor does not display during automatic adjustments.
(2) Adjustment item name This displays the names of the spindle analog adjustment items.
(3) Adjustment data This displays the setting data for each adjustment item.
(4) Current adjust data
This displays data which is being adjusted manually. (Display only during a manual
adjustment.)
(5) Operation procedure This displays the operation procedures for automatic and manual adjustments.
Menus
Menu Details Reference
This carries out automatic adjustment of the spindle analog output.
Performing Automatic
Adjustments
This carries out manual adjustment of the spindle analog output.
Performing Manual Adjustments
This is used during manual adjustments to adjust downward in decrements
of 10.
This is used during manual adjustments to adjust downward in decrements
of 1.
This is used during manual adjustments to adjust upward in increments of
1.
This is used during manual adjustments to adjust upward in increments of
10.
To Next Page
