M800S/M80/E80 Series Connection and Setup Manual
33 Data Backup and Restoration
560
IB-1501269-J
[Note]
(1) If an error occurs during the backup execution, the display will be as follows:
- Operation message : "File access error"
- Execution state : "Error" for the file on which an error has occurred
- Selected area : Clear
(2) Even when the data protection key (for memory card or SD) is valid, the data can be backed up in the memory card
or DS.

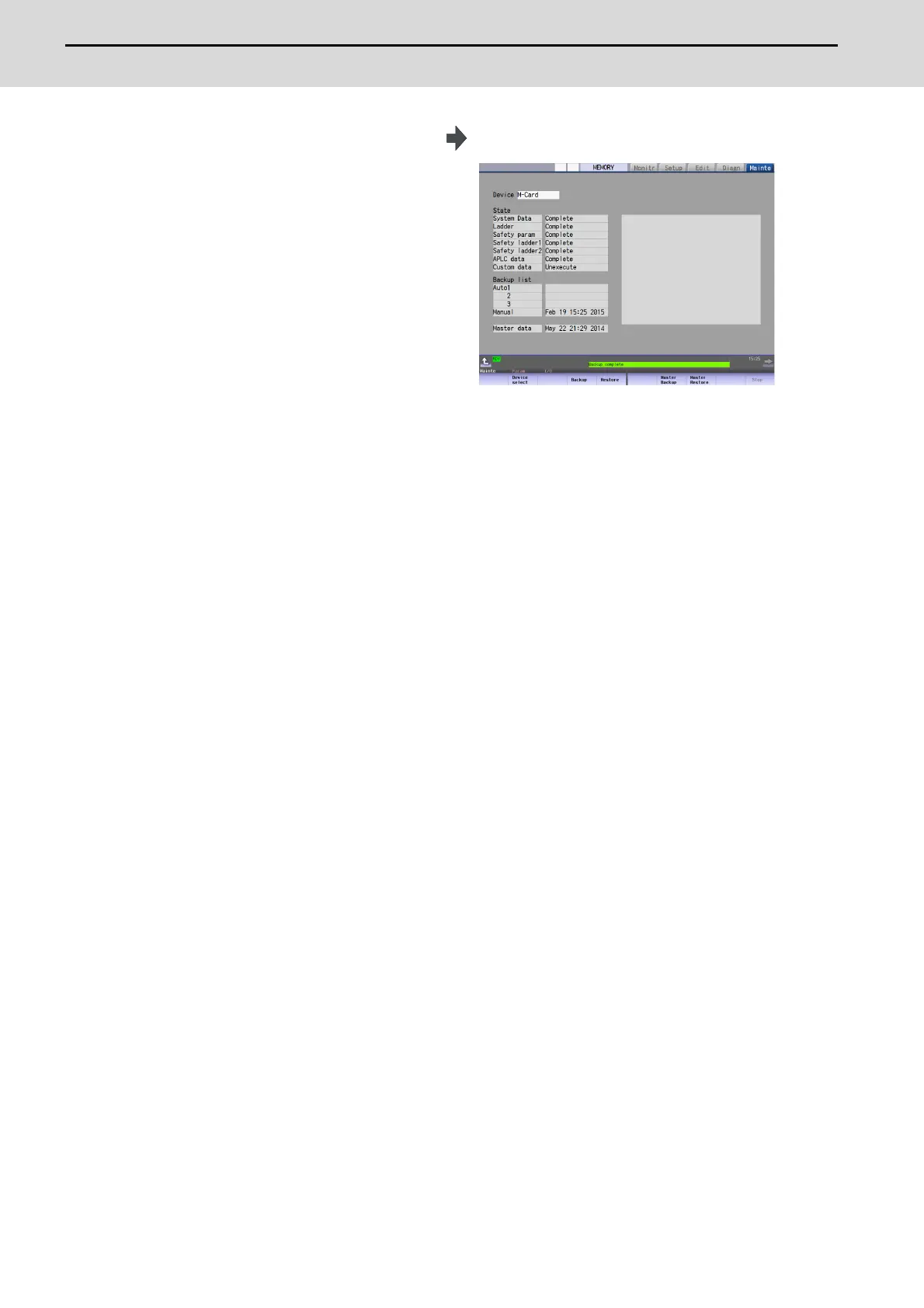

(3) The backup is completed without error. The states of backup-complete files turn to "Complete",
the date displayed in "Backup list" will be updated.
<Note>
- If the APLC release specification is invalid, the APLC data
cannot be backed up and "Unexecute" is displayed.

Mitsubishi M80 series Specifications

General

Type	CNC Control Unit
Power Supply	24V DC
Interpolation	Linear, circular, helical
Fieldbus	CC-Link
Operating Temperature	0 to 45°C
Interface	USB, RS-232
Processor	RISC processor
Ethernet	Yes (100BASE-TX/10BASE-T)
