M800S/M80/E80 Series Connection and Setup Manual
4 General Specifications
45
IB-1501269-J

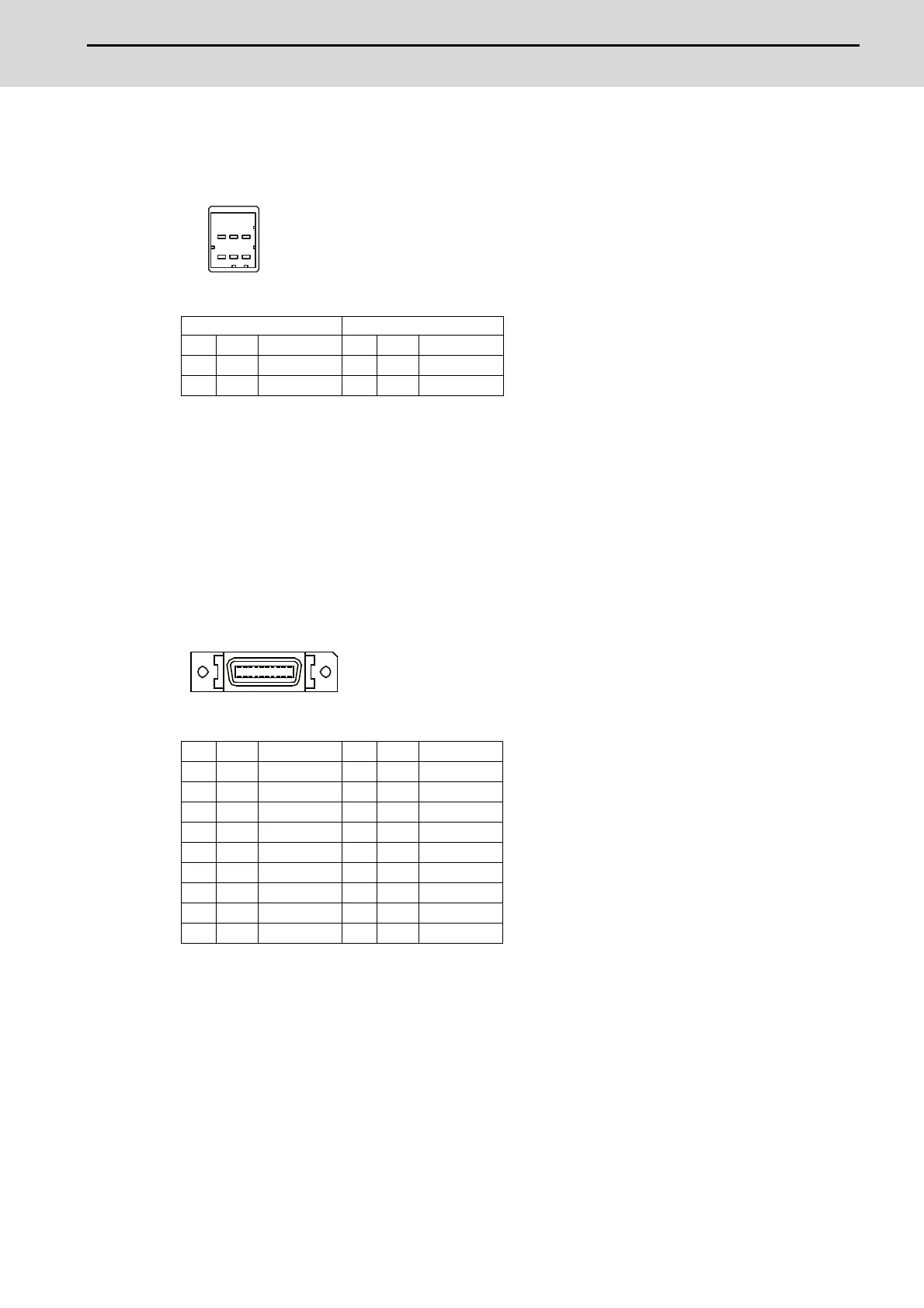

(12) RIO1 (Remote I/O 2.0 communication 1st channel)
(13) RIO2 (Remote I/O 2.0 communication 2nd channel)
Up to 64 remote I/O stations can be connected.
<Cable side connector type>
Connector : 1-1318119-3
Contact : 1318107-1
Recommended manufacturer : Tyco Electronics
(14) MENUKY (Menu key I/F)
(15) ENC (Encoder input 1ch, 5V manual pulse generator input 2ch)
Synchronous feed encoder or 5V manual pulse generator can be connected to this connector.
- Connect connector case with FG pattern.
<Cable side connector type>
Plug : 10120-3000PE
Shell : 10320-52F0-008
Recommended manufacturer : 3M
(Note) When using the jackscrew M2.6-type 10320-52A0-008 for the shell, do not fasten the screws
too tightly otherwise the connector and the PCB may be damaged.
(Manufacturer recommended tightening torque: 0.20±0.05Nꞏm)
AB
1 I/O TXRXD 1 I/O TXRXD*
2 NC 2 0V
3 FG 3 NC
1 0V 11 0V
2 I ENC1Z 12 IENC1Z*
3 I ENC1B 13 IENC1B*
4 I ENC1A 14 IENC1A*
5 0V 15 0V
6 O+5V 16 O+5V
7 IHA2A 17 IHA2B
8 IHA1A 18 IHA1B
9 NC 19 NC
10 O+5V 20 O+5V
To Next Page
