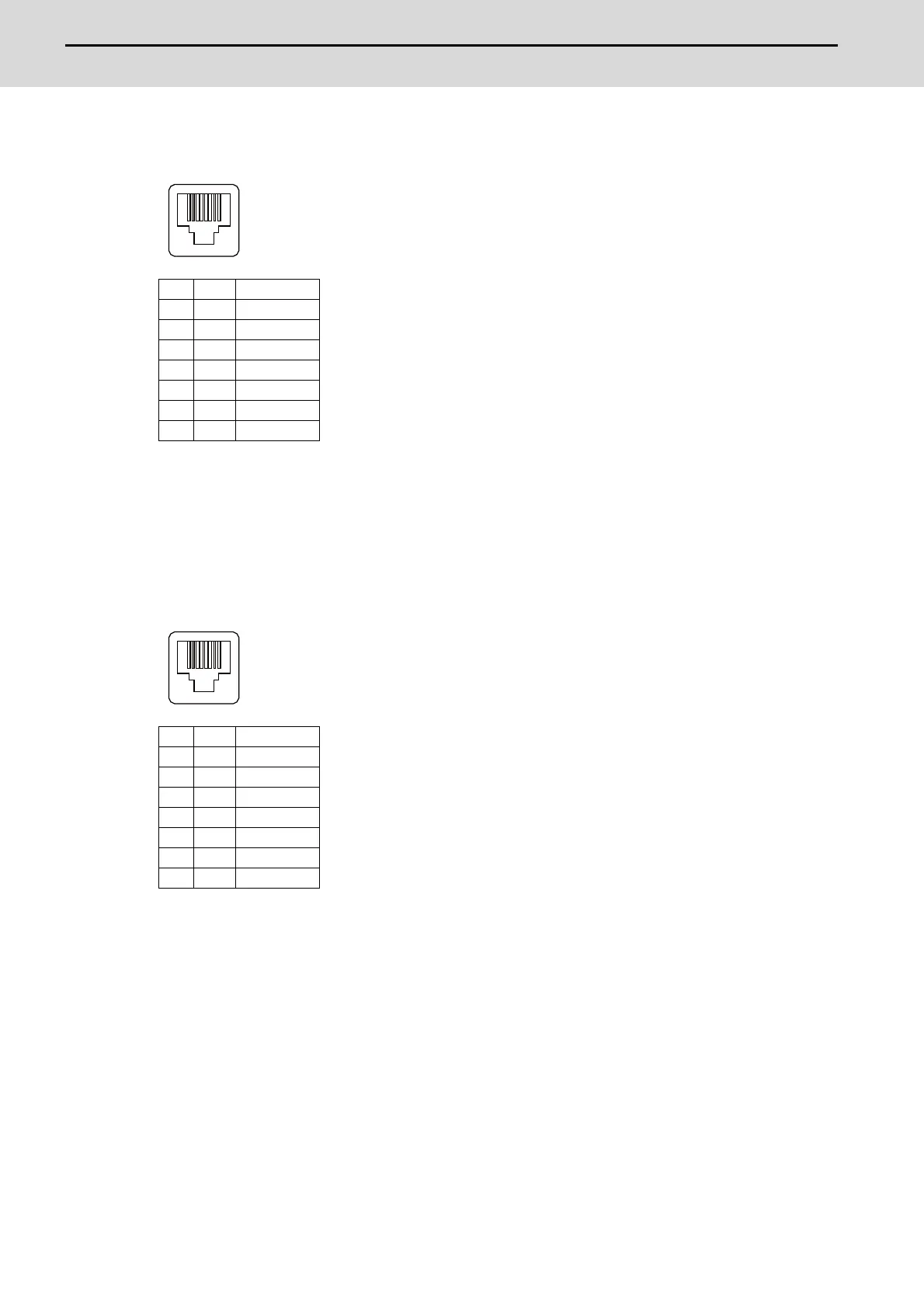

(18) LAN1 (Ethernet communication)
- Connect connector case with FG pattern.
- Use J303 cable when directly connecting a device such as a personal computer to the unit.
<Cable side connector type>
Connector : J00026A0165
Recommended manufacturer : Japan Telegärtner
(19) LAN2 (Ethernet communication)
- Connect connector case with FG pattern.
- Use J303 cable when directly connecting a device such as a personal computer to the unit.
<Cable side connector type>
Connector : J00026A0165
Recommended manufacturer : Japan Telegärtner
(20) FG (FG terminal)
(21) LCD (Display unit signal I/F)
(22) EXT_P (Communication expansion unit I/F)
(23) TP (Touch panel I/F)
1 I/O TXRXD0+
2 I/O TXRXD0-
3 I/O TXRXD1+
4 I/O TXRXD2+
5 I/O TXRXD2-
6 I/O TXRXD1-
7 I/O TXRXD3+
8 I/O TXRXD3-
1 I/O RD-
2 I/O RD+
3 I/O TD-
4 I/O TCT
5 I/O TCT
6 I/O TD+
7 I/O RCT
8 I/O RCT
