M800S/M80/E80 Series Connection and Setup Manual
4 General Specifications
57
IB-1501269-J

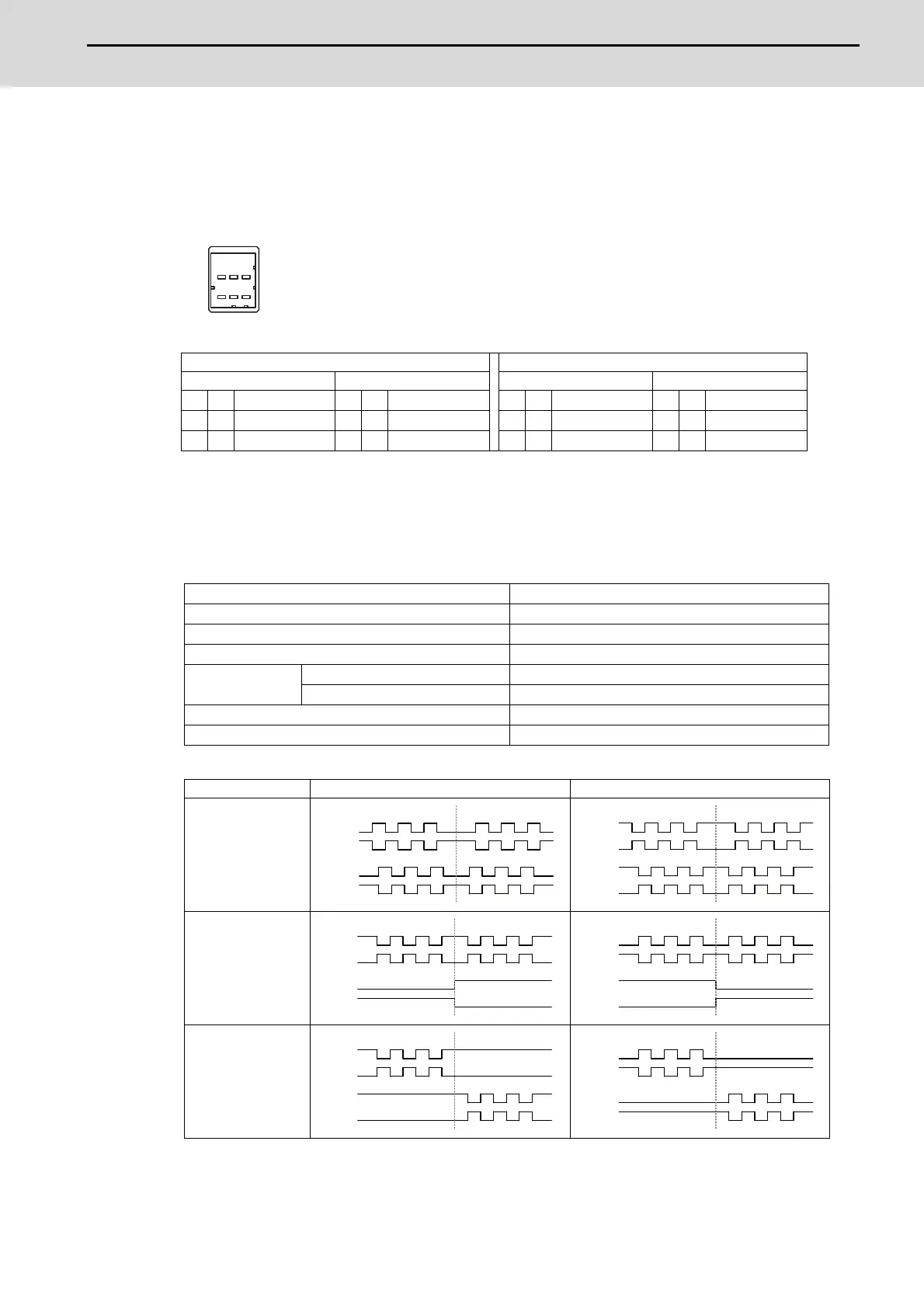

(12) RIO1 (Remote I/O 2.0 communication 1st channel)
(13) RIO2 (Remote I/O 2.0 communication 2nd channel)
For E80, RIO1 and RIO2 connectors can be used as interfaces to output pulses. With this function, you can connect
a pulse-controlled inverter with RS422 interface to E80.
(Note) When you use a function with pulse output, remote I/O unit cannot be connected to the RIO1 and RIO2
connectors.
<Cable side connector type>
Connector : 1-1318119-3
Contact : 1318107-1
Recommended manufacturer : Tyco Electronics
Pulse output specifications
(Note) The output signal logic type can be selected with the logic selecting function.
RIO1 RIO2
AB AB
1 O A/PULSE/CW 1 O A*/PULSE*/CW* 1 O B/SIGN/CCW 1 OB*/SIGN*/CCW*
2 NC 2 0V 2 NC 2 0V
3 FG 3 NC 3 FG 3 NC
Number of control axes One axis
Pulse output mode (Note) A phase/B phase, PULSE/SIGN, CW/CCW
Pulse output frequency 1 to 4,000,000 pulses per second
Pulse output signal RS422 differential driver output
Signal voltage
Differential output voltage 2.0 V or greater
Common mode output voltage 3.0 V or less
Output current 250 mA in maximum
Cable wire length 30 meters or less
Pulse output mode Positive logic Negative logic
A phase/B phase
PULSE/SIGN
CW/CCW
*
B
B*
Forward rotation Reverse rotation
A
A*
B
B*
Forward rotation Reverse rotation
PULSE
SIGN
PULSE*
SIGN*
Forward rotation Reverse rotation
PULSE
SIGN
PULSE*
SIGN*
Forward rotation Reverse rotation
CW
CCW
CW*
CCW*
Forward rotation Reverse rotation
CW
CCW
CW*
CCW*
Forward rotation Reverse rotation
