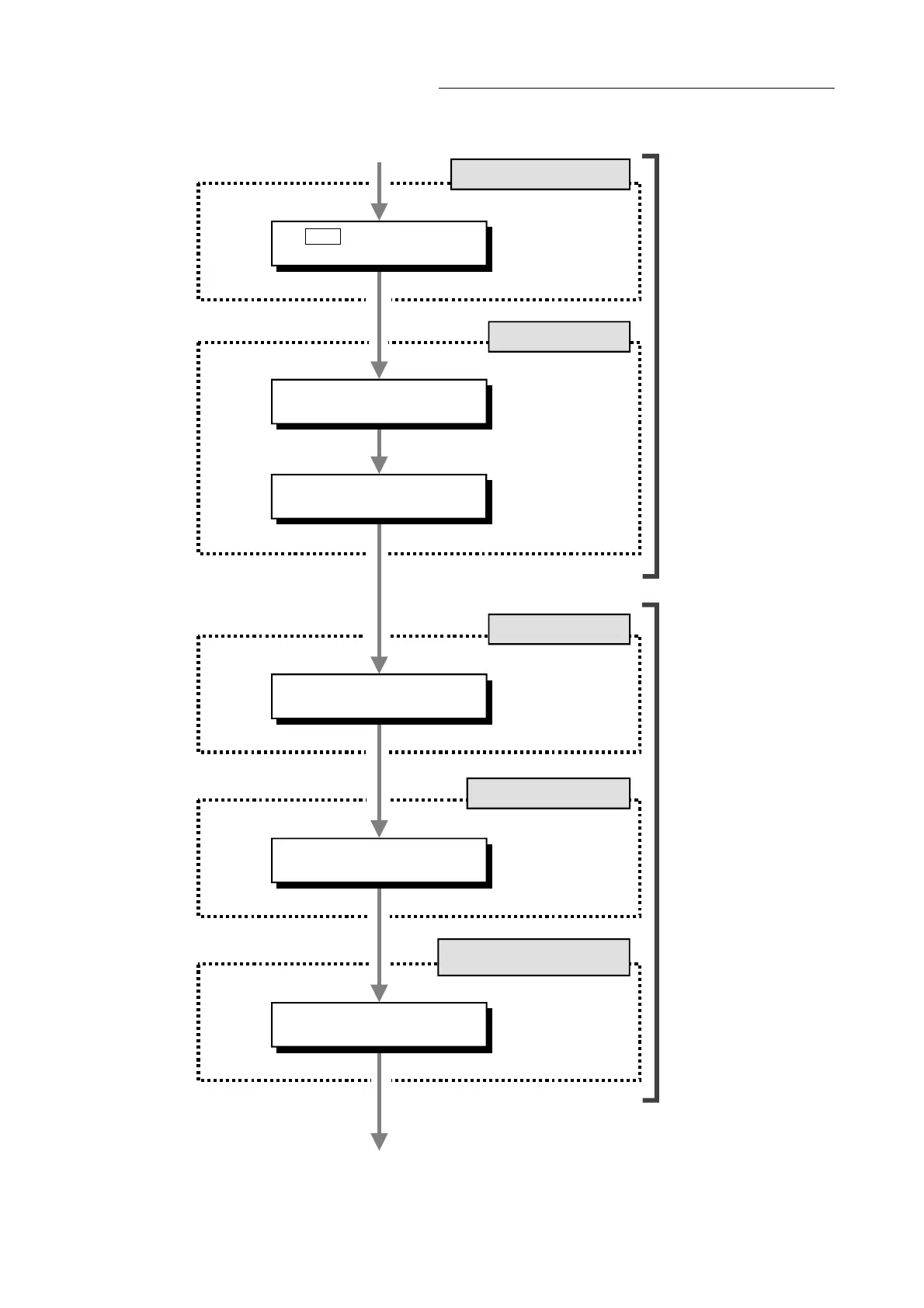

Chapter 6 Sequence Program Used for Positioning Control
Continued from previous page
No.9
No.12
JOG operation program
No.15
Manual pulse generator
operation program
No.10
Positioning start program
No.11
M code OFF program
Refer to Section 6.5.2
Refer to Section 6.5.3
Refer to Section 11.2.4
Refer to Section 11.4.4
Program to turn the
M code ON signal OFF
Start details setting program
Start program
JOG operation program
Manual pulse generator
operation program
Continued on next pa
g
e
No.14
No.13
Inching operation program
Refer to Section 11.3.4
Inching operation program
No.14
Program required to carry out
• "OPR control"
• "Major positioning control"
• "High-level
positioning control"
• "Expansion control"
Program required to carry out
"manual control"
Positioning start No.
setting program
Cd.3
