11 - 24
Chapter 11 Manual Control
11.4 Manual pulse generator operation
11.4.1 Outline of manual pulse generator operation
Manual pulse generator operation
In manual pulse generator operations, pulses are input to the QD77MS from the
manual pulse generator. This causes the same number of input command to be
output from the QD77MS to the servo amplifier, and the workpiece is moved in the
designated direction.
The following shows and example of manual pulse generator operation.
1)
When the "
Cd.21
Manual pulse generator enable flag" is set to "1", the BUSY signal
turns ON and the manual pulse generator operation is enabled.
2)
The workpiece is moved corresponding to the number of pulses input from the manual
pulse generator.
3)
The workpiece movement stops when no more pulses are input from the manual pulse
generator.
4)
When the "
Cd.21
Manual pulse generator enable flag" is set to "0", the BUSY signal
turns OFF and the manual pulse generator operation is disabled.
[QD77MS4 operation example]
Manual pulse
generator
operation stops
t
BUSY signal [XC, XD, YE, XF]
Manual pulse
generator input
Start complete signal
[X10, X11, X12, X13]
Manual pulse generator operation enabled
0
OFF
ON
OFF
1) 2) 3) 4)
1
0
Cd. 21 Manual pulse
generator enable flag
1
2
(Note): Refer to Section 3.3 for input/output signal of QD77MS16.
[Precautions]
1: If the input from the manual pulse generator stops, the machine will decelerate to a stop within 25 ms.
2: The start complete signal does not turn ON in manual pulse generator operation.

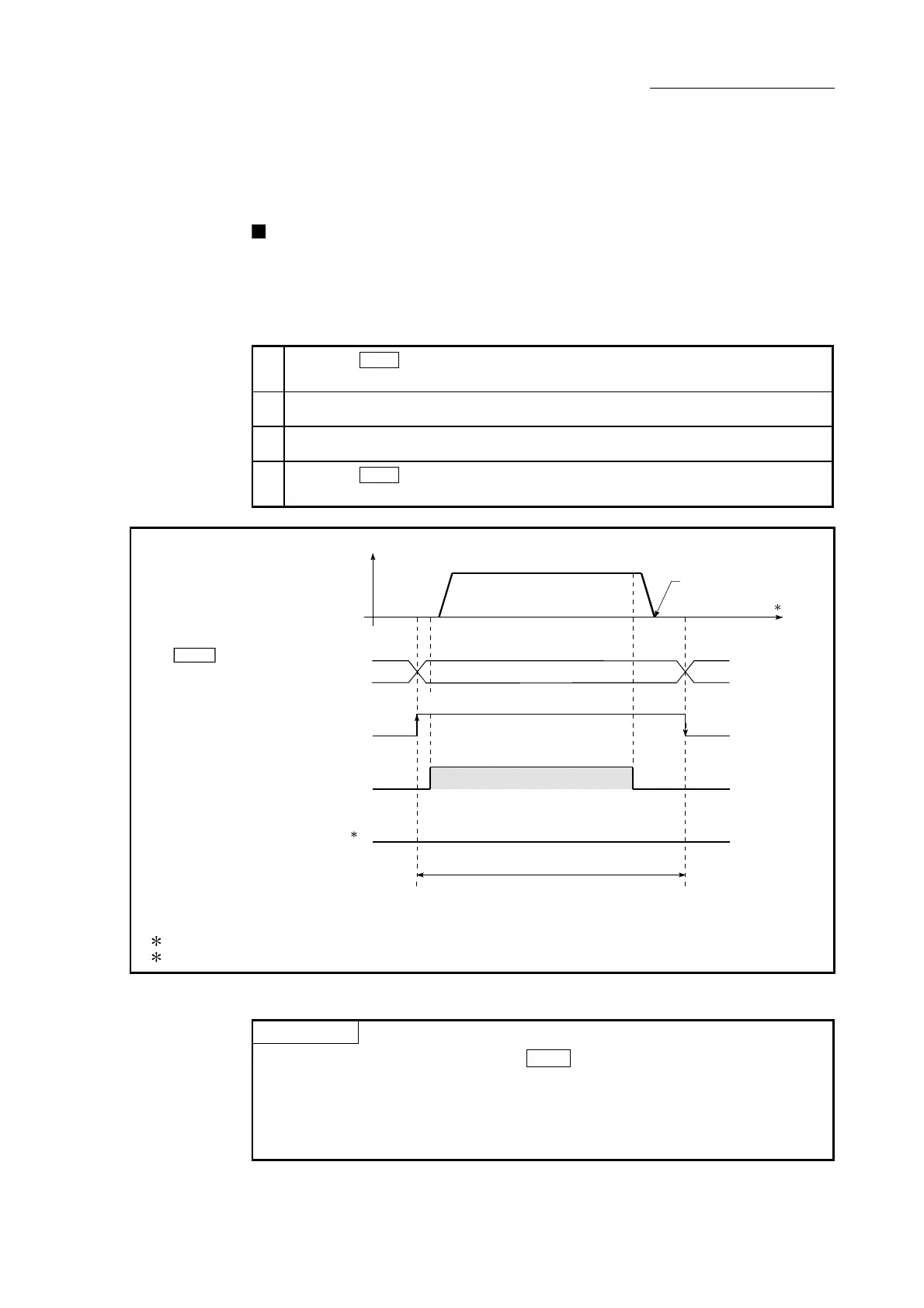

Fig. 11.16 Manual pulse generator operation
Important
Create the sequence program so that "
Cd.21
Manual pulse generator enable flag"
is always set to "0" (disabled) when a manual pulse generator operation is not
carried out.
Mistakenly touching the manual pulse generator when the manual pulse generator
enable flag is set to "1" (enable) can cause accidents or incorrect positioning.
