Appendix 3 Connection with external device
Appendix 3.1 Connector
Mounted onto an external input signal connector of the QD77MS and used for wiring
an external device. The "external device connector" includes the following 4 types.

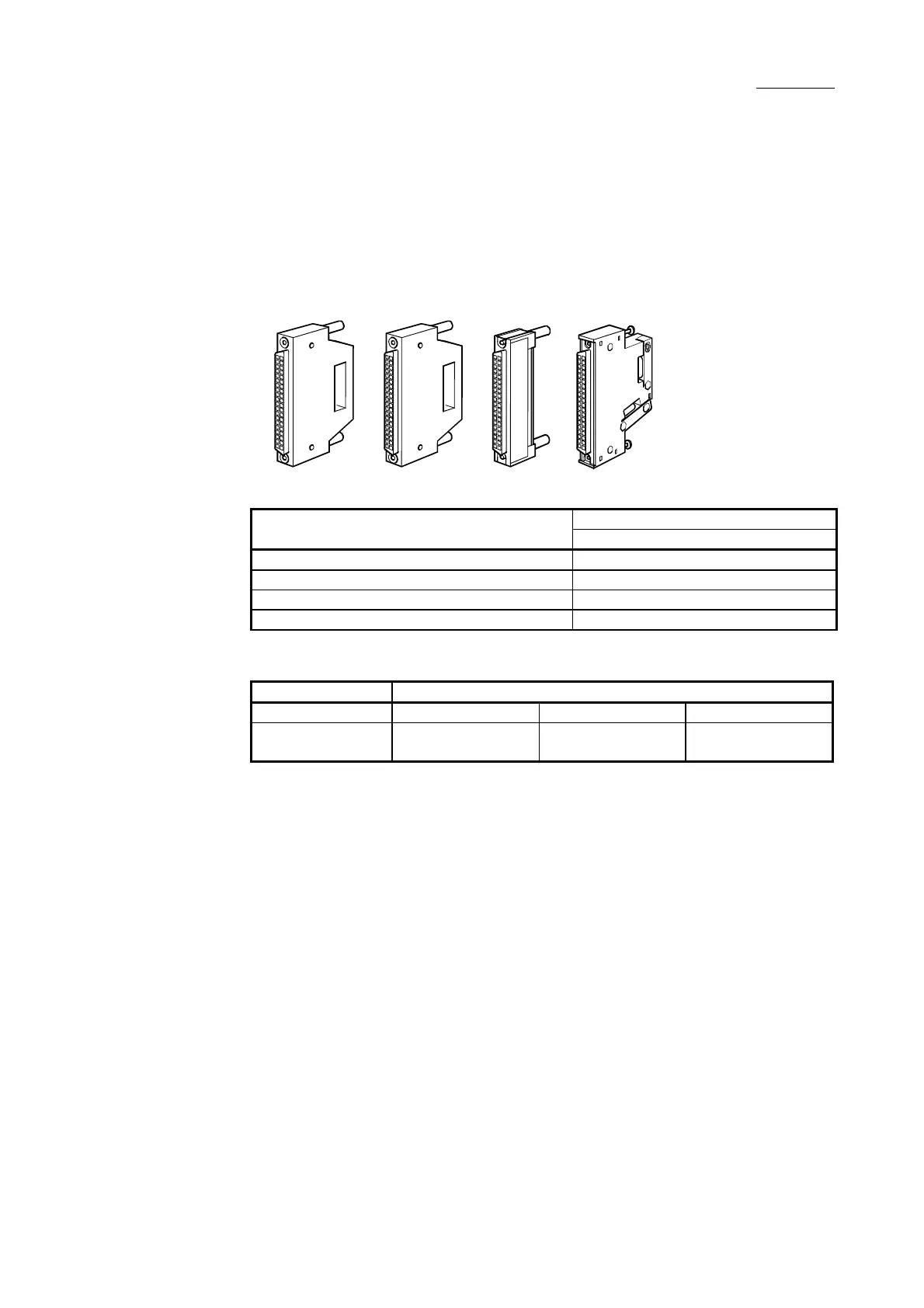

(1) Appearance
A6CON1 A6CON2 A6CON3 A6CON4
(2) Connector type
Model
Type
Connector
Soldering type, useable for straight out A6CON1
Crimp-contact type, useable for straight out A6CON2
Pressure-displacement type A6CON3
Soldering type, useable for straight out and diagonal out A6CON4
(3) Specifications of the connector
Part name Specification
Applicable connector A6CON1, A6CON4 A6CON2 A6CON3
Applicable wire size
0.3 mm
2
AWG24 to AWG28
AWG28 (twisted)/
AWG30 (single wire)
(Note): The external input signal connector has been prepared. Please purchase them by customer.
Specialized tool
• Pressure-bonding tool for A6CON2
Model name: FCN-363T-T005/H
• Pressure welding tool for A6CON3
Model name: FCN-367T-T012/H (locator plate)
: FCN-707T-T001/H (cable cutter)
: FCN-707T-T101/H (hand press)
• Contact for the specialized tool: Fujitsu component LTD.
