8 - 14
Chapter 8 OPR Control
8.2.7 OPR method (5): Scale origin signal detection method
The following shows an operation outline of the "scale origin signal detection method"
OPR method.
POINT
Set "0: Need to pass motor Z-phase after the power supply is switched on." in
"Function selection C-4 (PC17)". If "1: Not need to pass motor Z-phase after the
power supply is switched on." is set, the error "Z-phase passing parameter invalid"
(error code: 231) will occur at the start of scale origin signal detection method OPR.
Operation chart
1)
The machine OPR is started.
(The machine begins the acceleration designated in "
Pr.51 OPR acceleration time selection", in the direction
designated in "
Pr.44 OPR direction". It then moves at the " Pr.46 OPR speed" when the acceleration is
completed.)
2) The machine begins decelerating when the near-point dog ON is detected.
3)
After deceleration stop, the machine moves in the opposite direction against of OPR at the " Pr.46 OPR
speed
".
4) During movement, the machine begins decelerating when the first zero signal is detected.
5)
After deceleration stop, the operation moves in direction of OPR at the " Pr.47 Creep speed", and then stops
at the detected nearest zero signal.
6)
The OPR complete flag ( Md.31 Status: b4) turns from OFF to ON, and the OPR request flag ( Md.31 Status:
b3
) turns from ON to OFF.
After 3), when the zero signal is in the near-point dog
position, deceleration stop (4)) is started at the zero signal
without waiting for the near-point dog OFF.
Zero signal
ON
1)
2)
OPR direction
POINT
Pr.44
V
6) 3)5)
4)
OFF
Near-point dog
Hardware limit switch
Pr.46
Pr.47
OPR speed
Creep speed

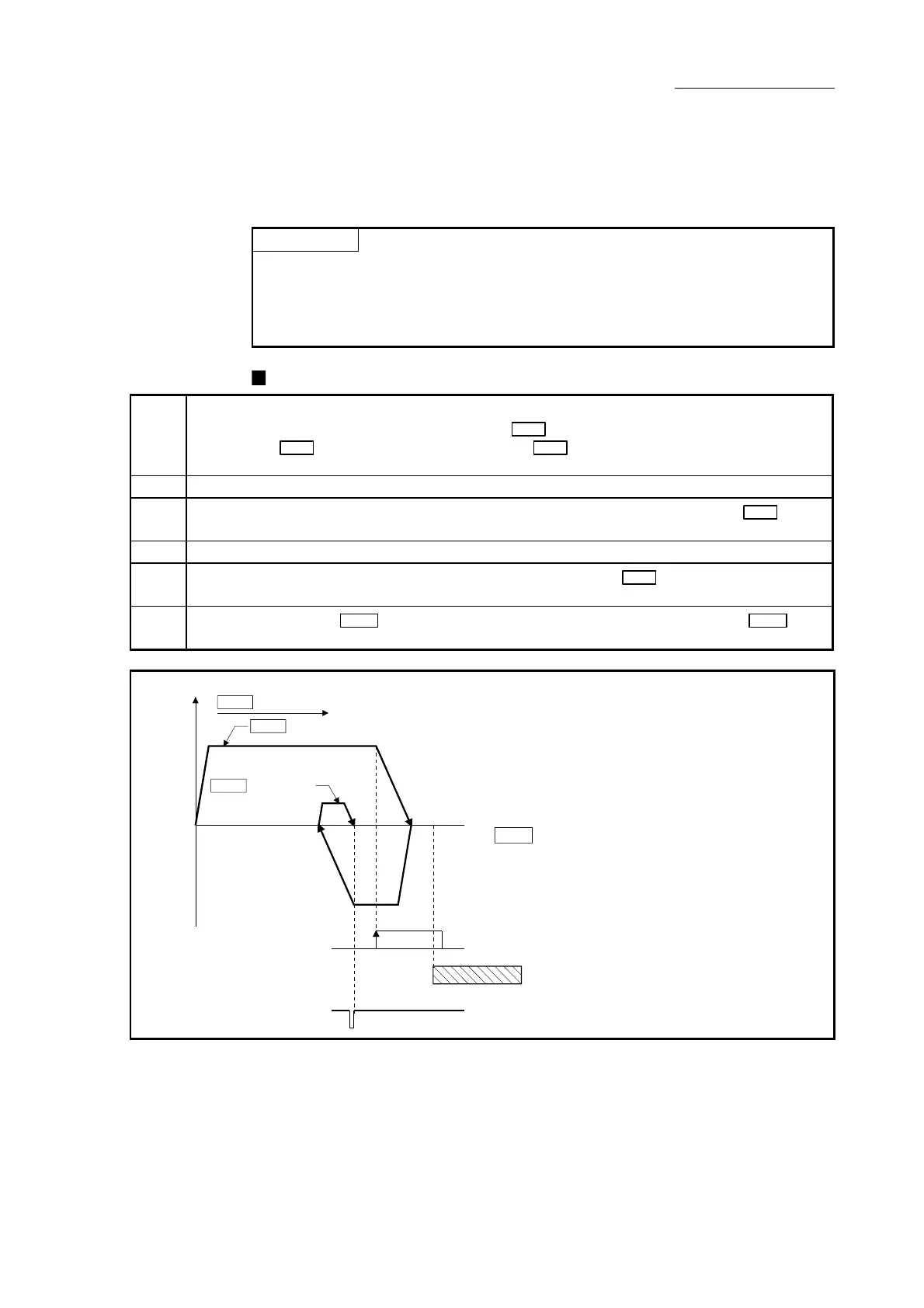

Fig. 8.10 Scale origin signal detection method machine OPR
