13 - 53
Chapter 13 Control Sub Functions
[1] Control details
After setting the following two items, carry out the speed change to change the
acceleration/deceleration time during the speed change.
•
Set change value of the acceleration/deceleration time (" Cd.10 New acceleration
time value", " Cd.11 New deceleration time value")
•
Setting acceleration/deceleration time change to enable (" Cd.12 Acceleration/
deceleration time change during speed change, enable/disable selection")

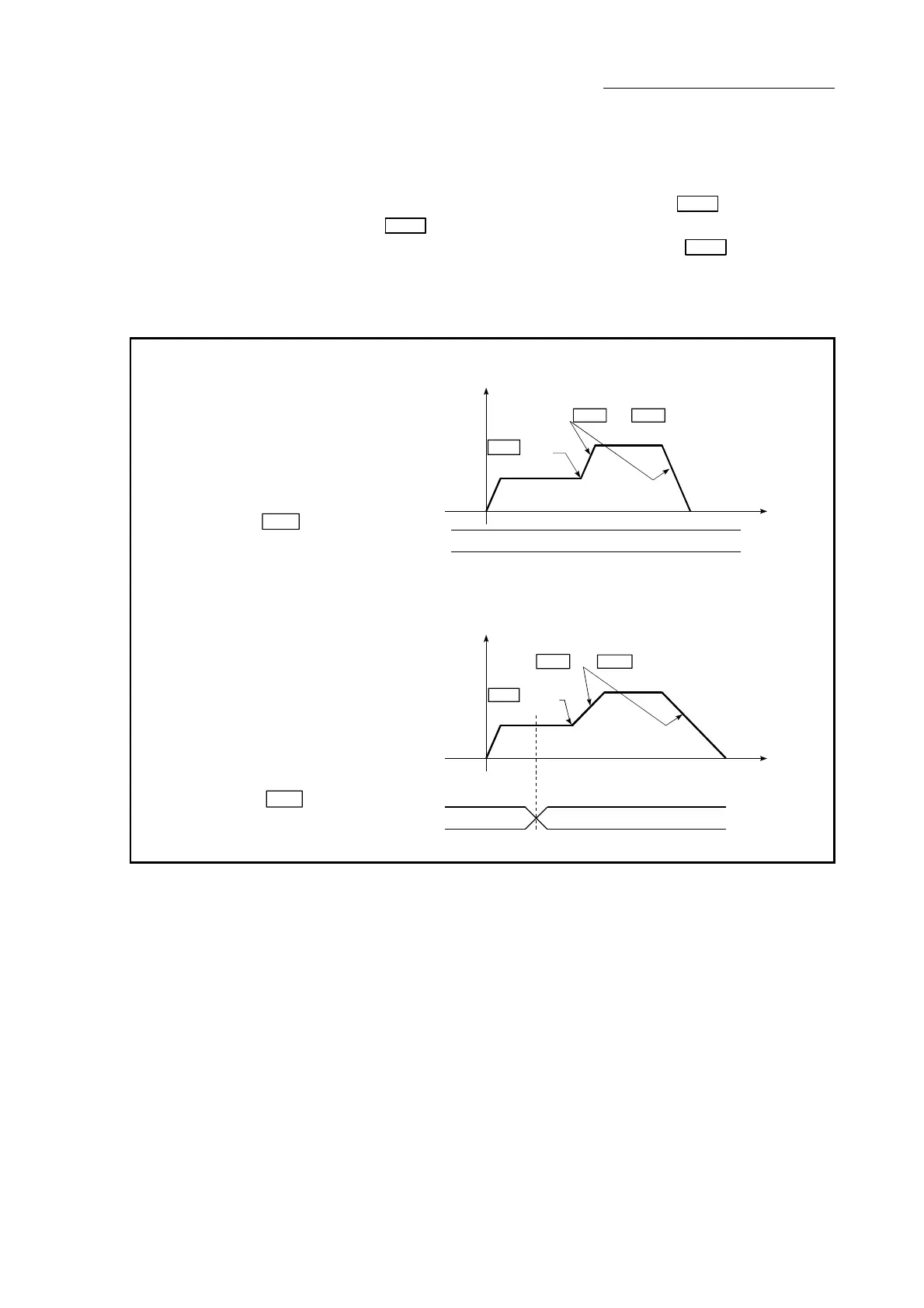

The following drawing shows the operation during an acceleration/deceleration
time change.
Cd.12 Acceleration/deceleration
time change during
speed change, enable/
disable selection
Cd.15 Speed
change request
t
V
Operation with the acceleration/deceleration
time set in Da. 3 and Da. 4 .
Disabled
[For an acceleration/deceleration time change disable setting]
Cd.12 Acceleration/deceleration
time change during
speed change, enable/
disable selection
Cd.15 Speed
change request
Disabled
Enabled
t
V
Operation with the acceleration/deceleration
time ( Cd. 10 and Cd. 11 ) set in the buffer memory.
[For an acceleration/deceleration time change enable setting]
Fig. 13.30 Operation during an acceleration/deceleration time change
