Chapter 13 Control Sub Functions
[2] "Acceleration/deceleration method setting" control details and
setting
In the "acceleration/deceleration method setting", the acceleration/deceleration
processing method is selected and set. The set acceleration/deceleration
processing is applied to all acceleration/deceleration. (except for inching
operation, manual pulse generator operation and speed-torque control.)
The two types of "acceleration/deceleration processing method" are shown
below.
(1) Trapezoidal acceleration/deceleration processing method
This is a method in which linear acceleration/deceleration is carried out
based on the acceleration time, deceleration time, and speed limit value set
by the user.
t
V

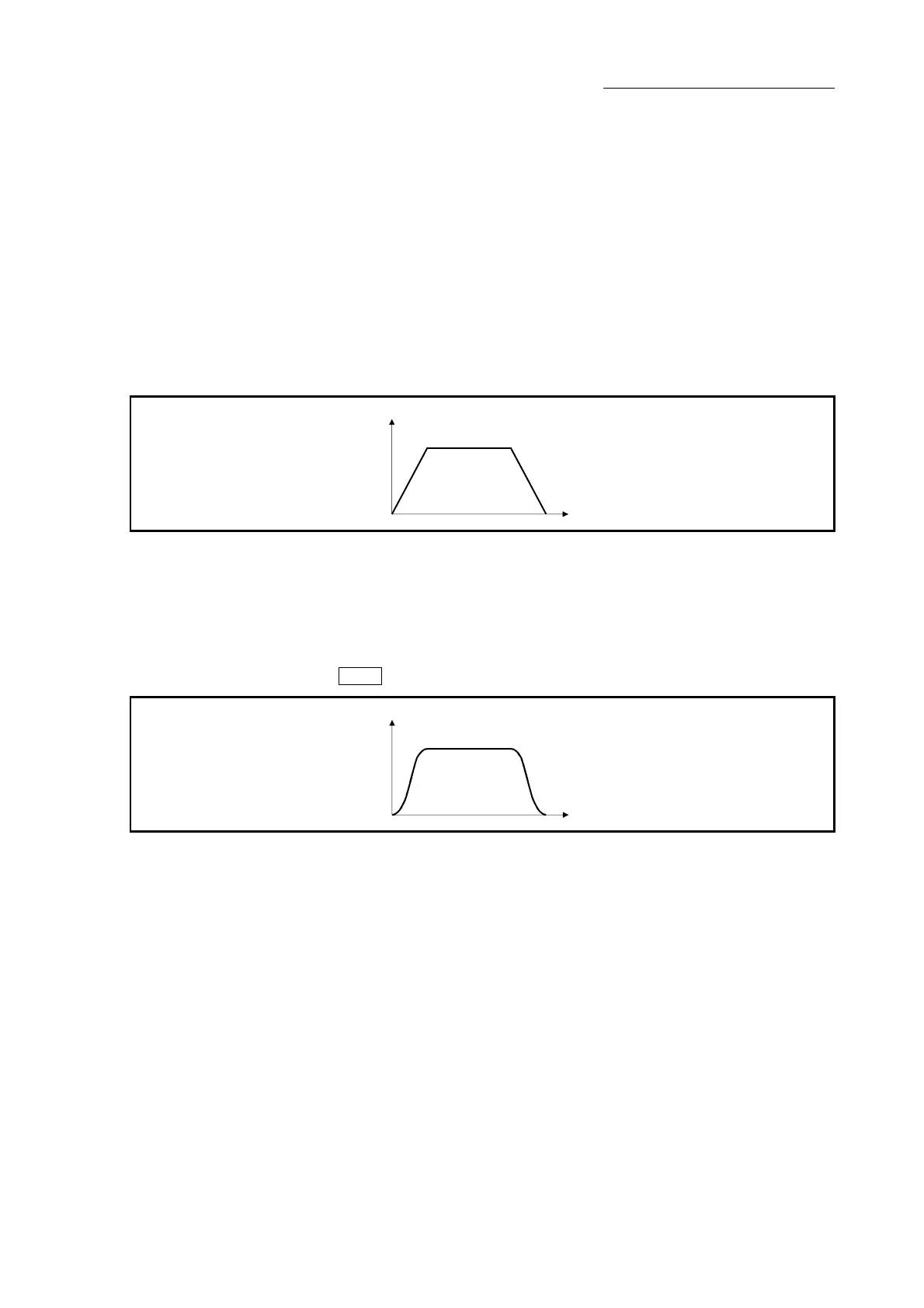

Fig. 13.45 Trapezoidal acceleration/deceleration processing method
(2) S-curve acceleration/deceleration processing method
In this method, the motor burden is reduced during starting and stopping.
This is a method in which acceleration/deceleration is carried out gradually,
based on the acceleration time, deceleration time, speed limit value, and
"
Pr.35
S-curve ratio" (1 to 100%) set by the user.
t
V
Fig. 13.46 S-curve acceleration/deceleration processing method
