2.21.5 LC100-M8 vertical dot matrix display
LC100-M8 board is produced in two versions:
LC100-M8B Blue DOT matrix display
LC100-M8R Red DOT matrix display
LC100-M8 displays are used as a cabin displays and can be used as a landing units. When used as a cabin display
it is connected to CAN1 bus, and used as a landing call units it is connected to CAN2 bus (connector XC12).
Every landing call unit is addressed, addressing is done trough addressing menue.
To ensure that the landig calls are procesed through landing units parameter A-9 must be set.
Configuration of the units is done through parameters P-M-L module TYPE-P.

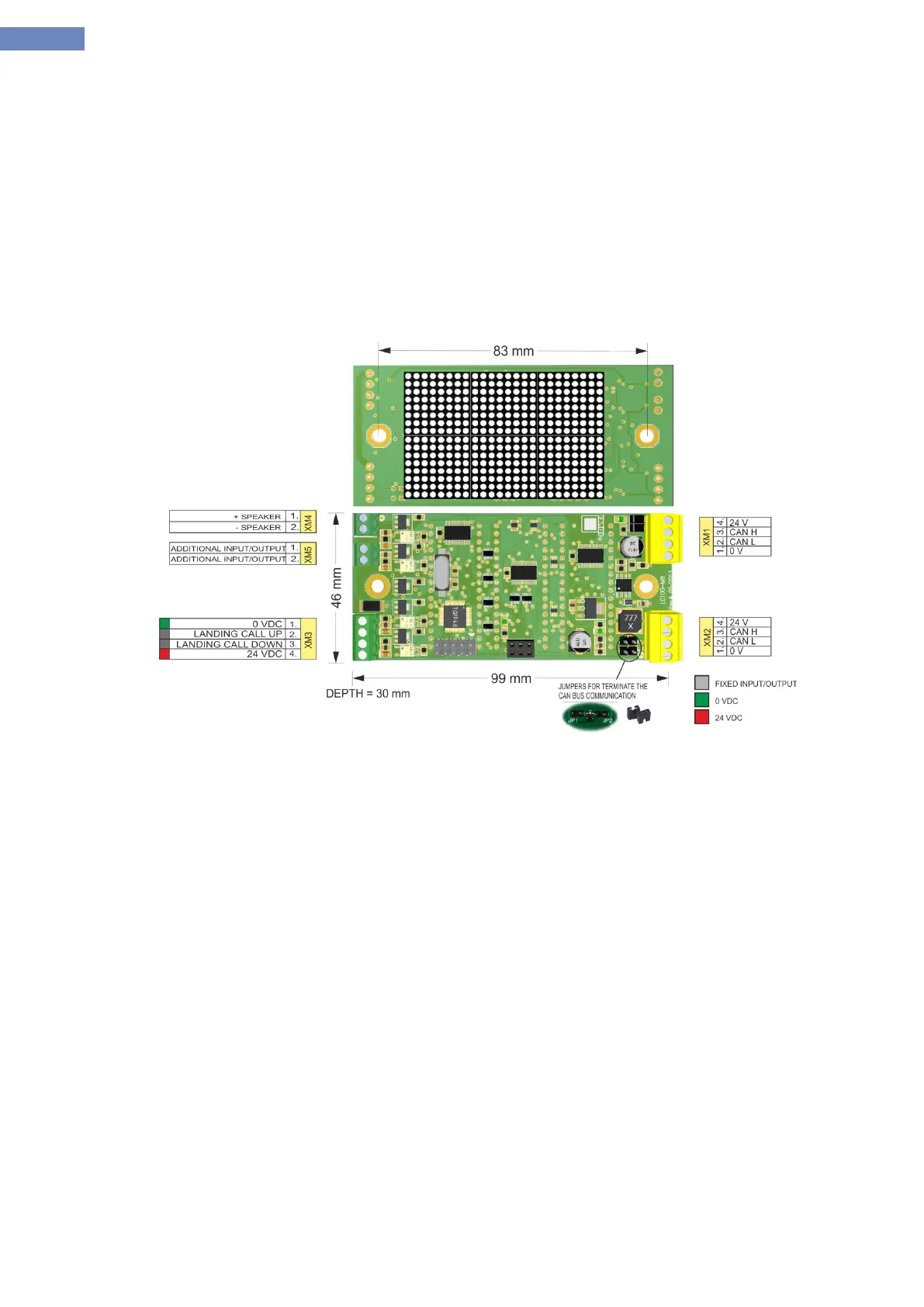

Picture 22 - LC100-M8 dot matrix display
