LC100 Instruction manual
4/6 Parameters
4/12 Door
Type D

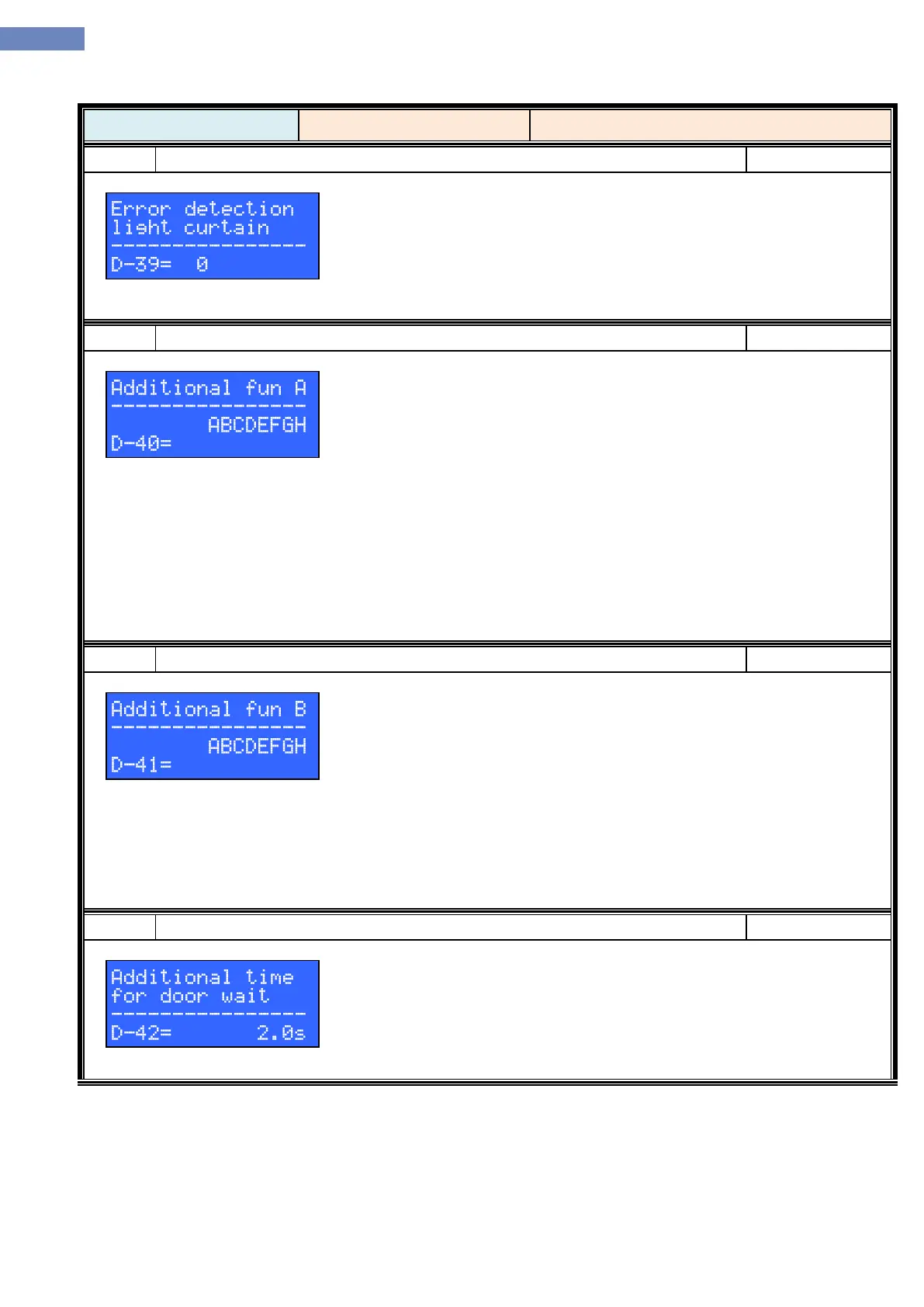

D-39
Error detection light curtain (EN81-20)
0-250
Parameter is used to enable/disable light curtain error detection.
Detection works on way that look input FI-263/FI-273 and cabin
calls. If they have cabin call and don’t have active inputs more seted
value. Controler detect light curtain error and start close door in nudging.
D-40
Additional funcitions of door A
A – Work in case of light curtain error detected with input FI-336.
B – Work in case of light curtain error detected with D-37 parameter.
Disabled – keep opened door in the station
Enabled – start closing doors with nudging
C –
D – Enable testing procedure of safety cabin and locking contact.
E – Locking device checking point
Disable – checking locking contact through signal door B in second phase
Enable – checking locking contact through signal locking contact in
second phase
F – Disable opening door B if door A are open. (Priority in door opening have
door A)
G –
H –
D-41
Additional functions of door B
A – Work in case of light curtain error detected with input FI-337.
B – Work in case of light curtain error detected with D-38 parameter.
Disabled – keep opened door in the station
Enabled – start closing doors with nudging.
C –
D –
E –
F – Disable opening door A if door B are open. (Priority in door opening have
door B)
G –
H –
D-42
Additioonal time for door wait
0-250s
When function FI-340 or FI-341 are active, with this parameter set
how much door will be opened.
