Troubleshooting Waveforms: Clocks 6-5
6.2.3 12 MHz Clock

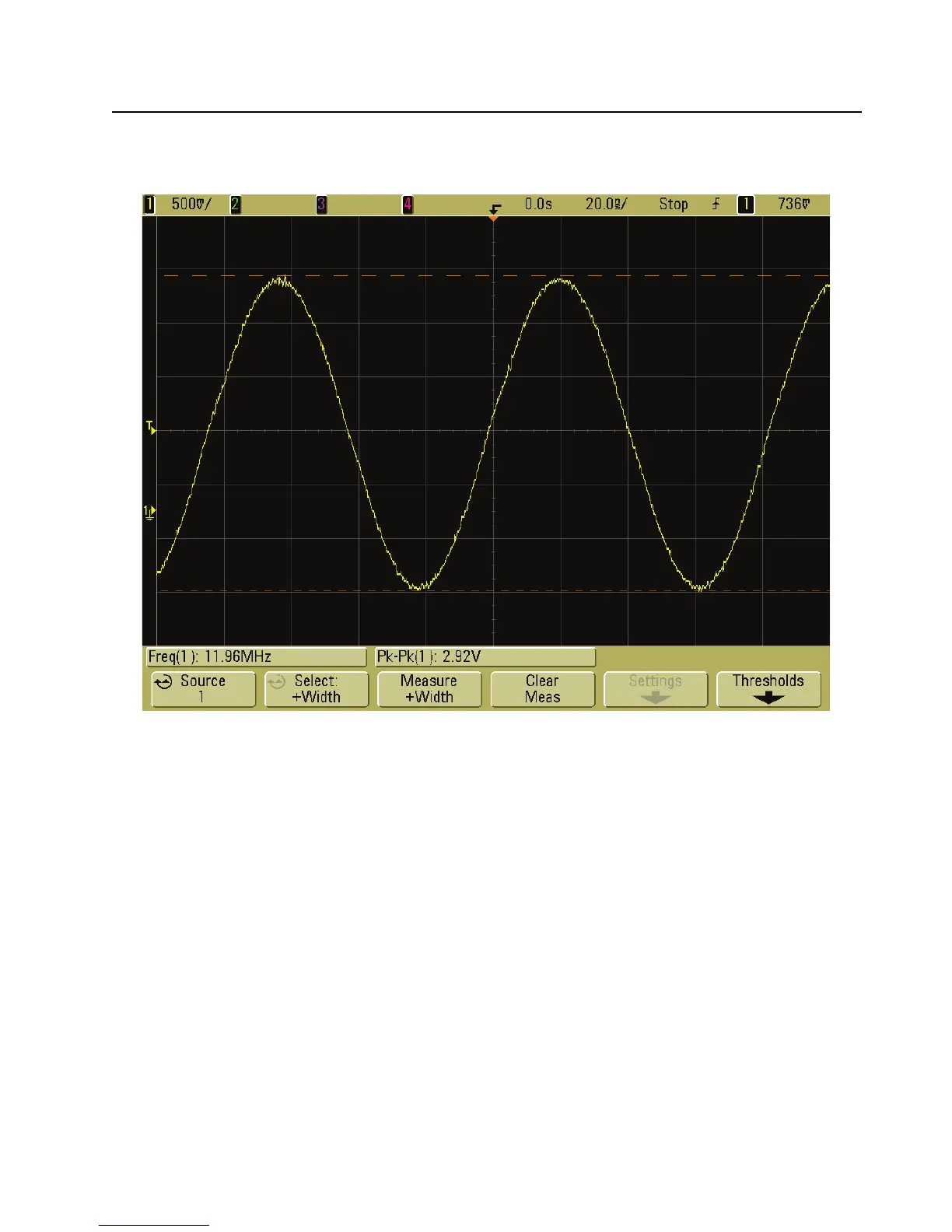

Trace 1: Trace recorded at R6602.
Figure 6-3. 12 MHz Clock Waveform
