Troubleshooting Waveforms: SPI 6-19
6.6.2 CLK INV

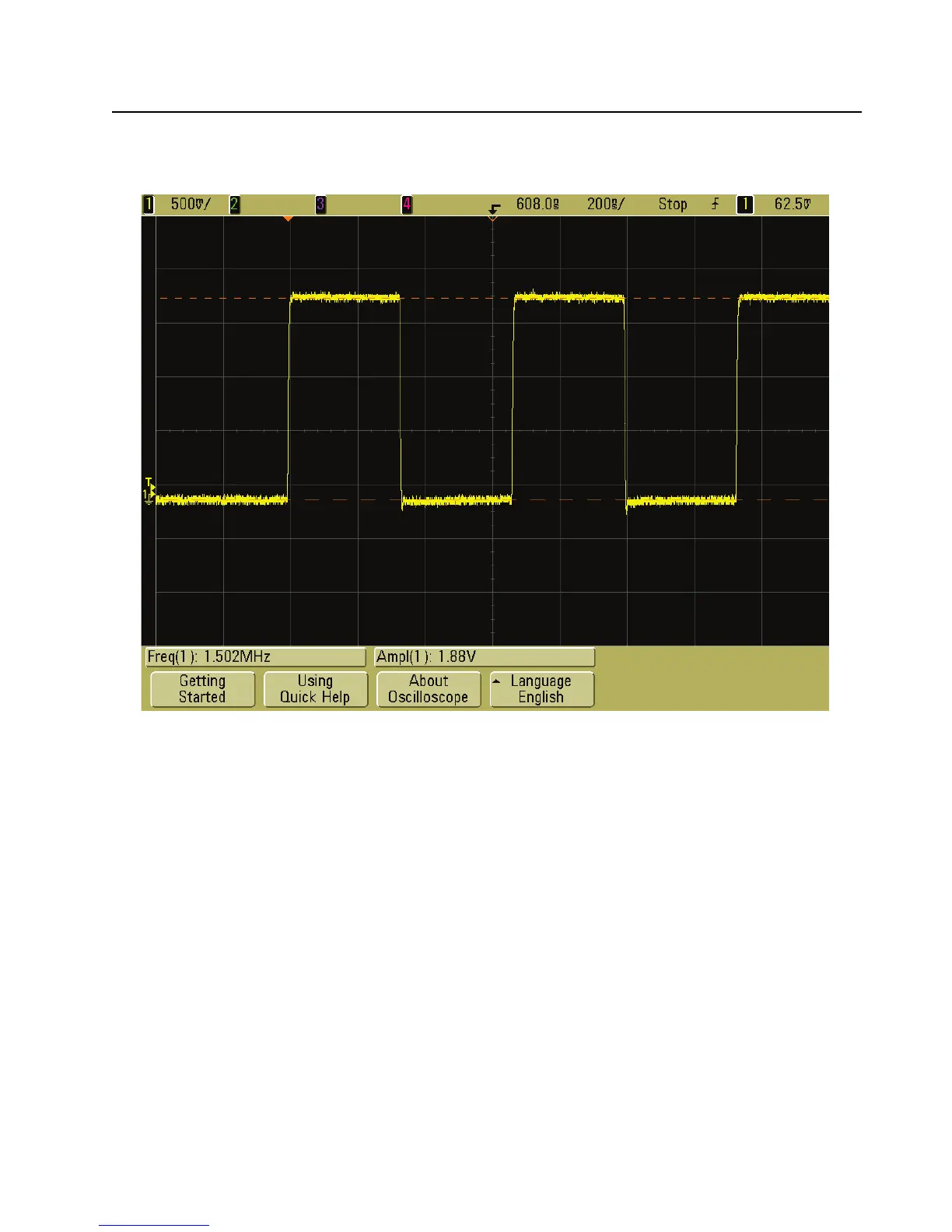

Trace 1: Trace recorded at R2325.
Figure 6-17. SPI – CLK INV Waveform
