6-6 Troubleshooting Waveforms: Clocks
6.2.4 16.8 MHz Clock

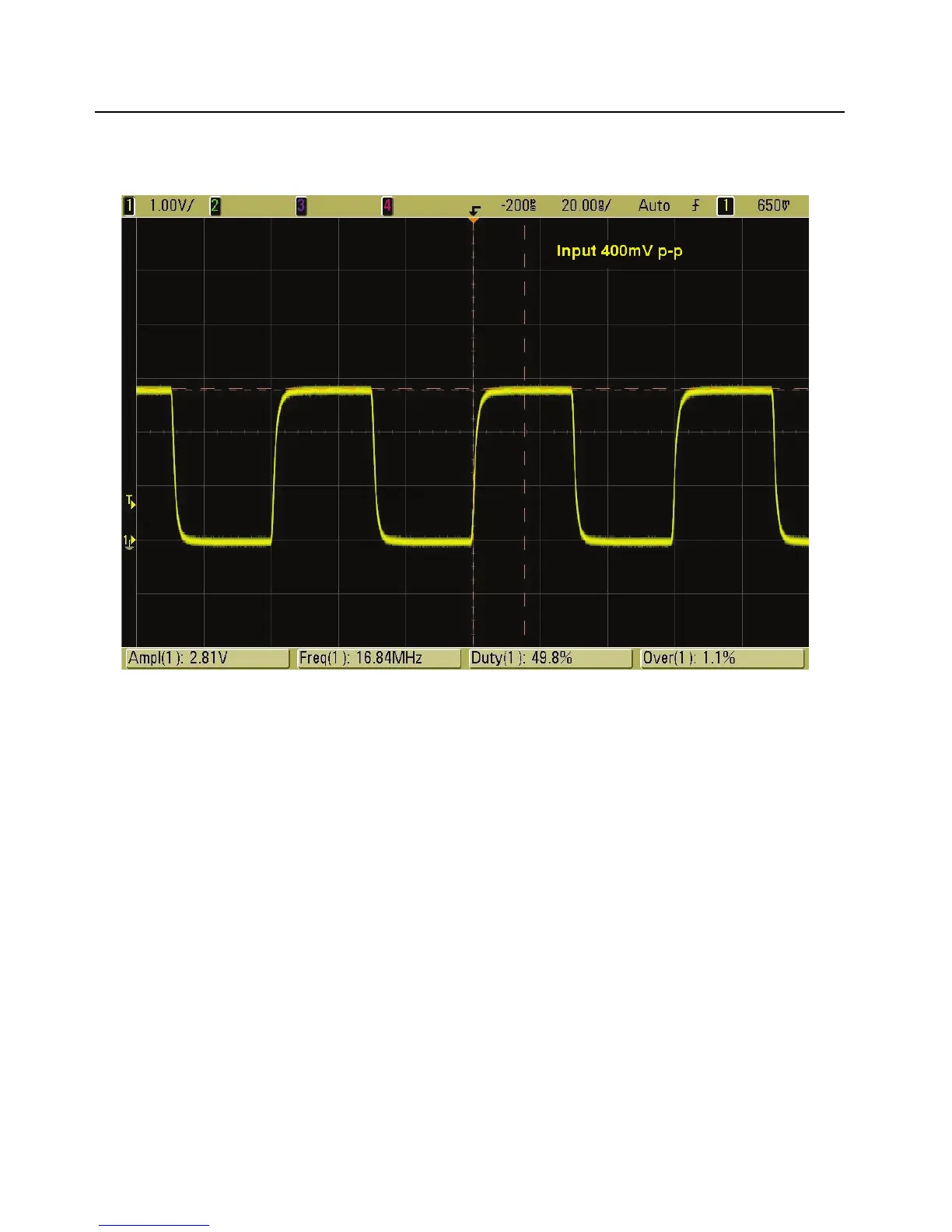

Trace 1: Trace recorded at Pin 3 of J1001.
Figure 6-4. 16.8 MHz Clock Waveform
