6-8 Troubleshooting Waveforms: Audio SSI
6.3 Audio SSI
6.3.1 Red Tx

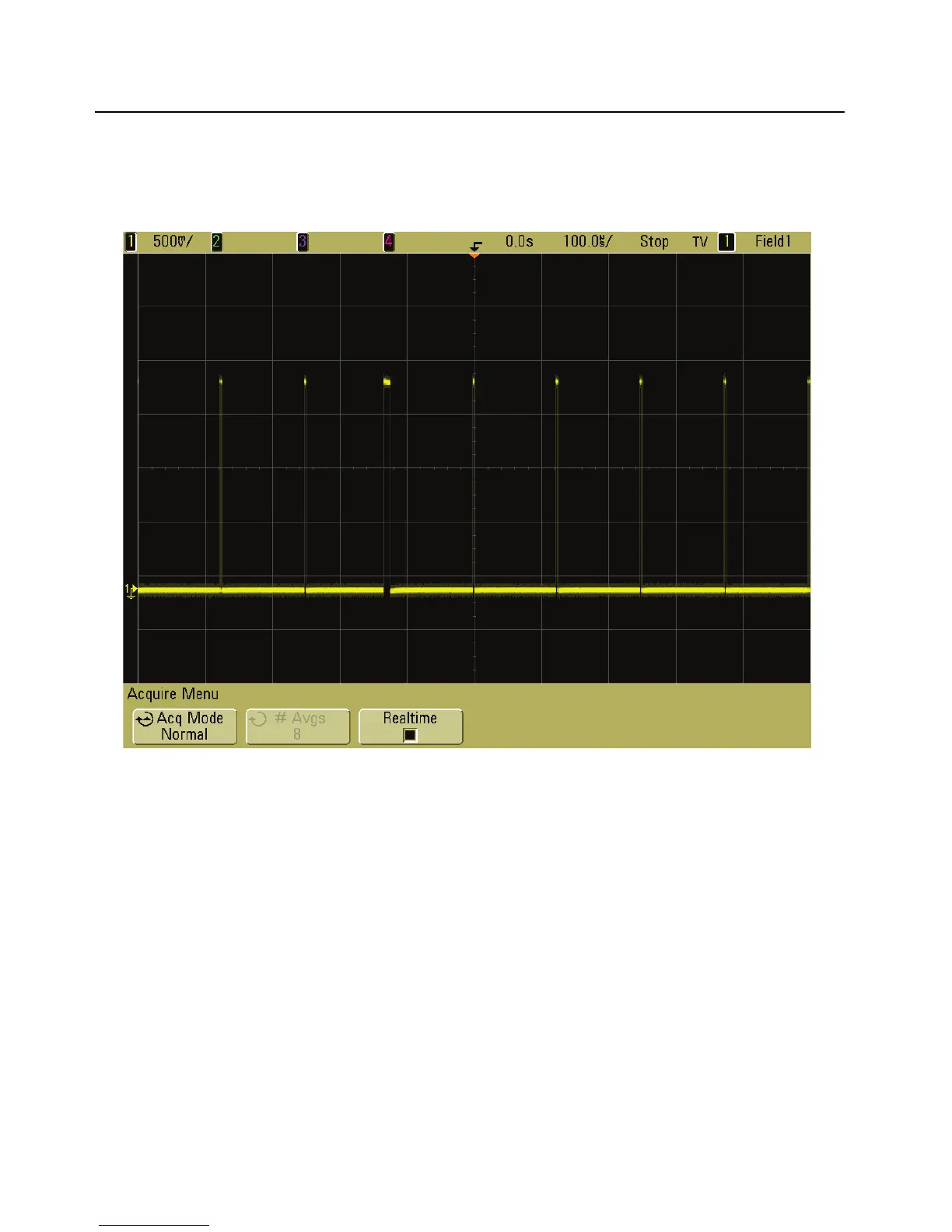

Trace 1: Trace recorded at R3016.
Figure 6-6. Audio SSI – Red Tx Waveform
