6-28 Troubleshooting Waveforms: GCAI
6.9.3 GPIO4

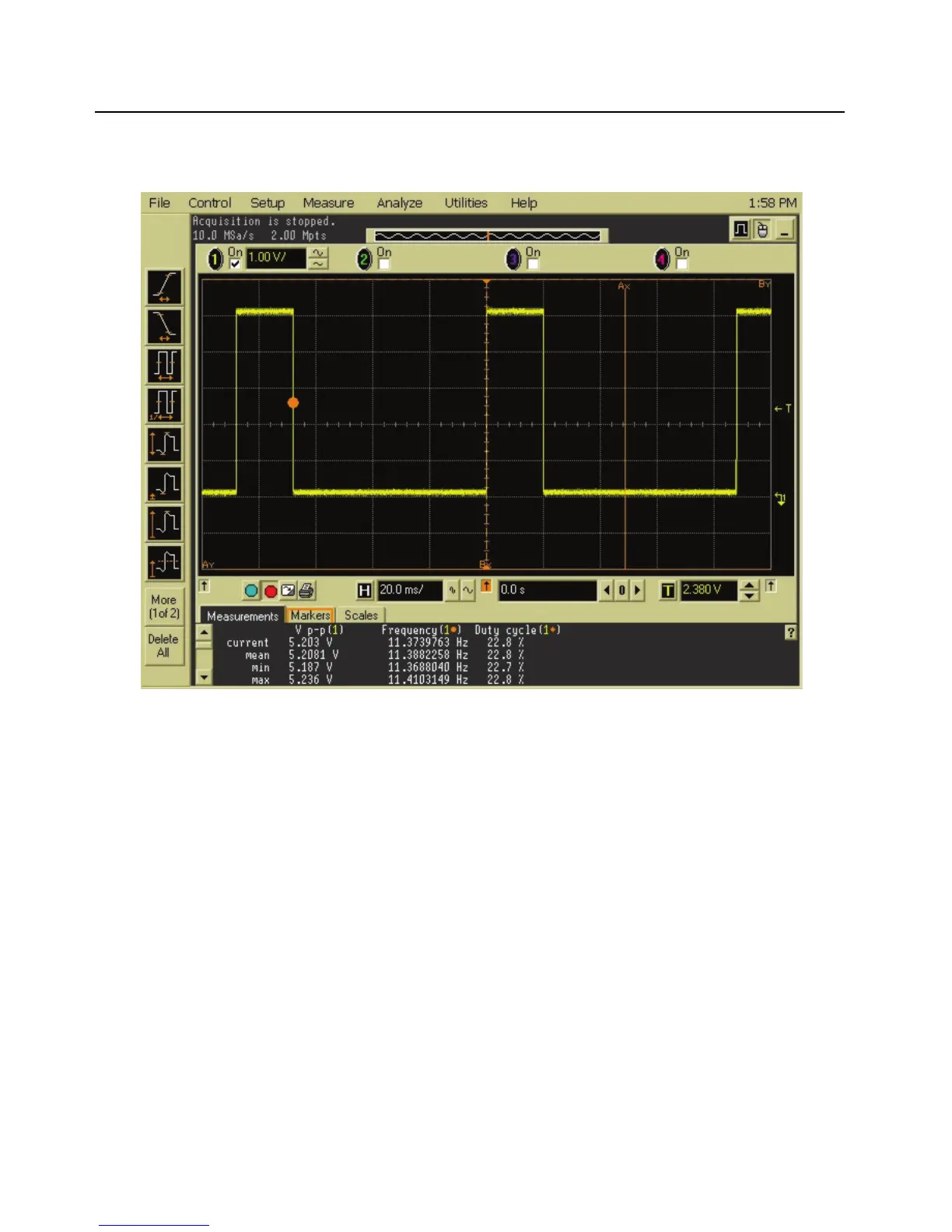

Trace 1: Trace recorded at Pin 60 of J3001.
Figure 6-26. GCAI – GPIO4 Waveform
