Troubleshooting Waveforms: TX SSI 6-17
6.5.3 FSync.

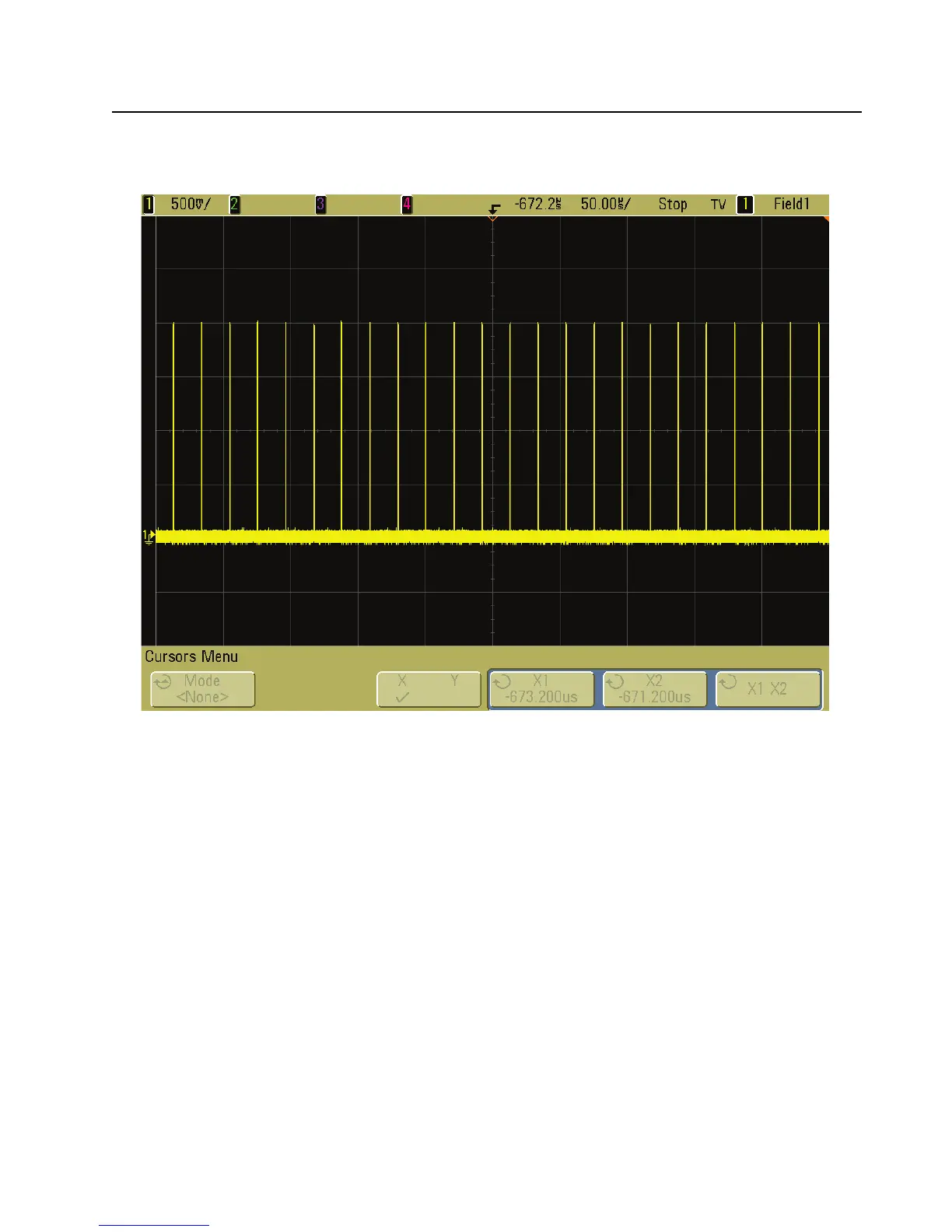

Trace 1: Trace recorded at R1007.
Figure 6-15. TX SSI – FSync. Waveform
