6-38 Troubleshooting Waveforms: FLASH CONTROL
6.13.4 OE

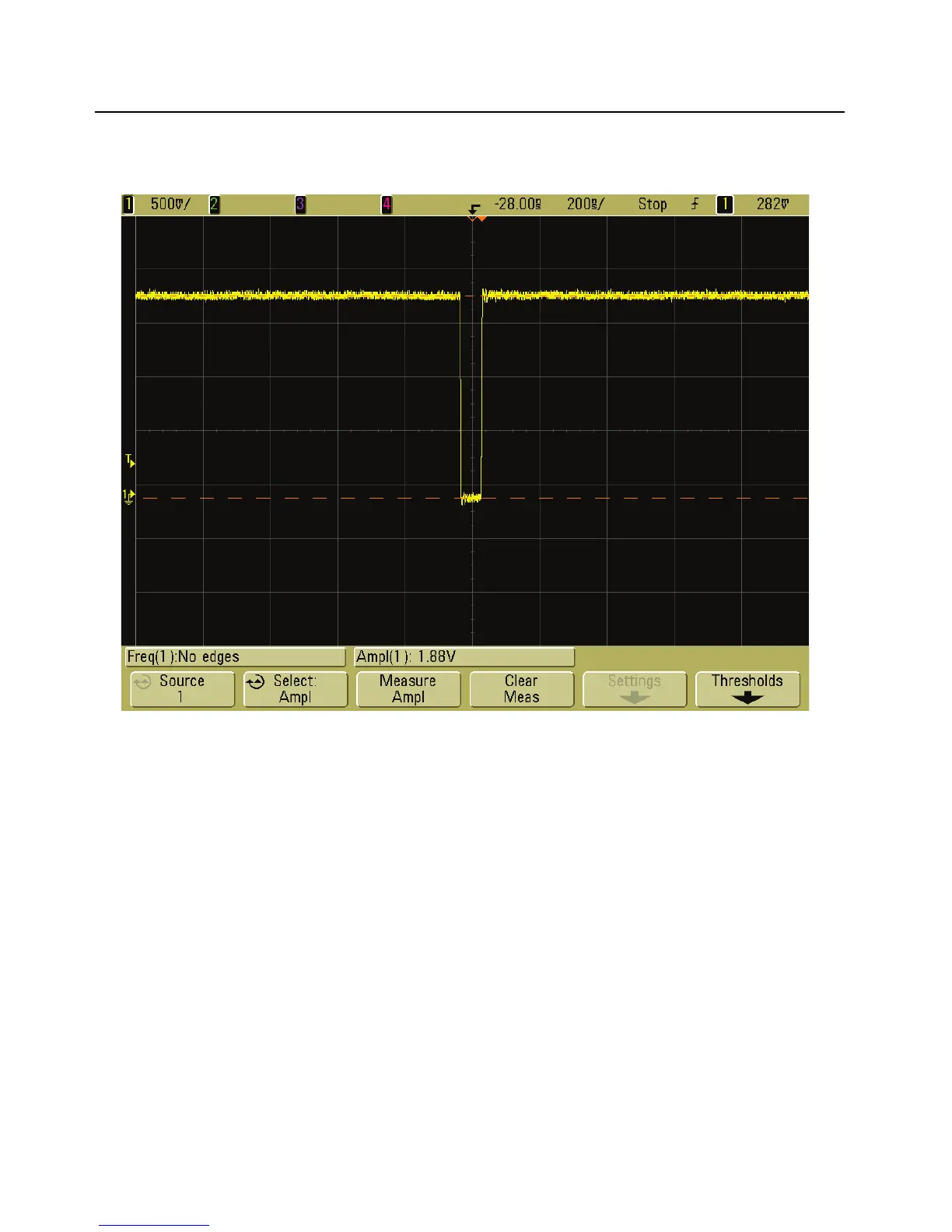

Trace 1: Trace recorded at R6312.
Figure 6-36. FLASH CONTROL – OE Waveform
