Troubleshooting Waveforms: UART 6-31
6.11 UART
6.11.1 RX

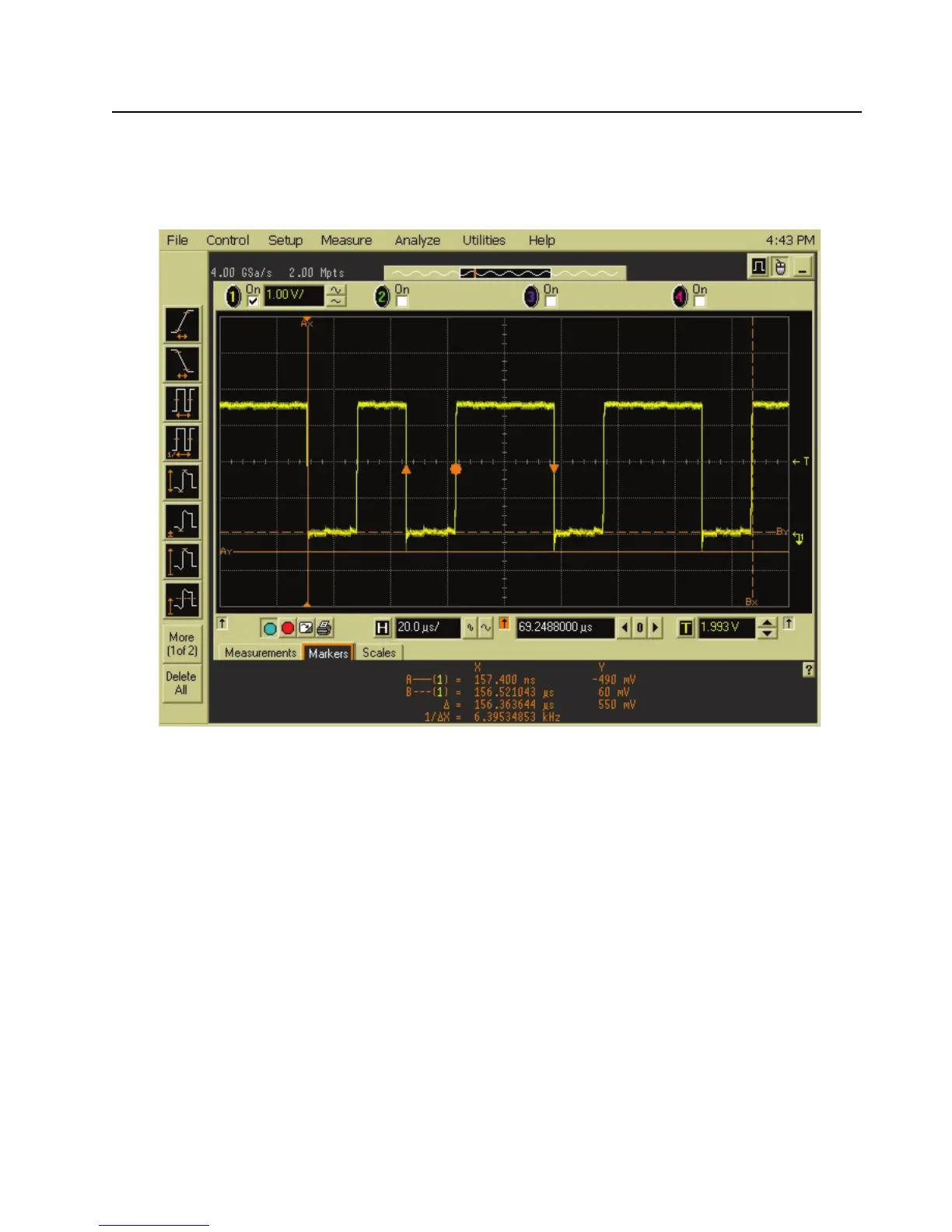

Trace 1: Trace recorded at F_Boot_Rx.
Figure 6-29. UART – RX Waveform
