Motorola APX 7000 Detailed Service Manual

3-72 Theory of Operation: Global Positioning System (GPS)
• The GPS TX output (U2206 pin J6 for MHLN6977 and pin F5 for MHLN7035), connects to
OMAP UART2_RX (U6302 pin R9) – TP2205
• The GPS RX input (U2206 pin K6 for MHLN6977 and pin E3 for MHLN7035) connects to
OMAP UART2_TX (U6302 pin M18) – TP2206
NOTE:
• SAW filter FL1301 is used by all APX7000/ APX 7000XE radios with expander board
HLN7035A.
.

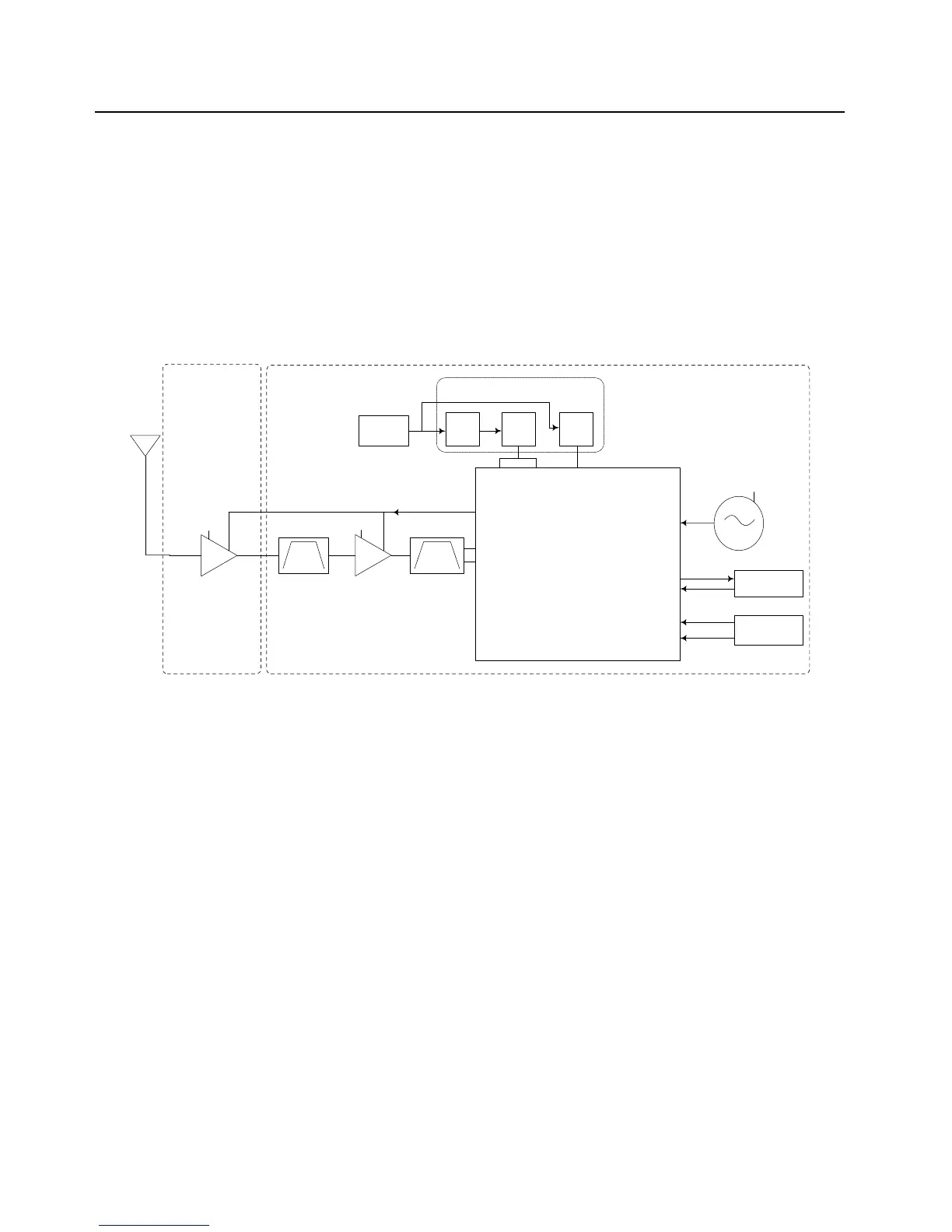

Figure 3-55. GPS Block Diagram (VHF/700–800 MHz) – Expander Board MHLN6977A
RF-Vocon-Exp
Interconnect
RF Board
Ant
LNA
3.0V
Unbalanced
SAW
LNA
GPS_2.8V
LNA Enable
3.6V
(VSW_3.6)
2.8V 1.8V 1.2V
GPS_2.8V
[OMAP 1710]
UART2_Rx (R9)
RF Vcc I/O Vcc Core Vdd
UART2_Tx (M18)
IO74 (E2)
IO91 (D12)
FDOUT (H1)
RFA_INP (A5)
RFA_INM (B5)
REF_CLK_IN (D4)
MISO_TXD0 (J6)
MOSI_RXD0 (K6)
LOW_REF_CLKI (D1)
NRESET (C1)
SiRF GSCi-5001
GPS IC
Reset
32kHz RTC
GPS Rx
GPS Tx
TCXO
26MHz
<0.5ppm
External Regulators
Expansion Board
Balanced
SAW

Motorola APX 7000 Specifications

General

Digital Technology	P25 Phase 1 and Phase 2
Emergency Button	Yes
Frequency Range	136-174 MHz (VHF), 380-470 MHz (UHF Range 1), 450-520 MHz (UHF Range 2), 764-870 MHz (700/800 MHz)
Display	Color LCD
Encryption	AES, DES
Water Resistance	IP67
GPS	Yes
Bluetooth	Yes
Operating Temperature	-30°C to +60°C
Weight	391 g (with standard battery)
