8-106 Schematics, Boards Overlays, and Parts Lists: Transceiver (RF) Boards: UHF1/VHF

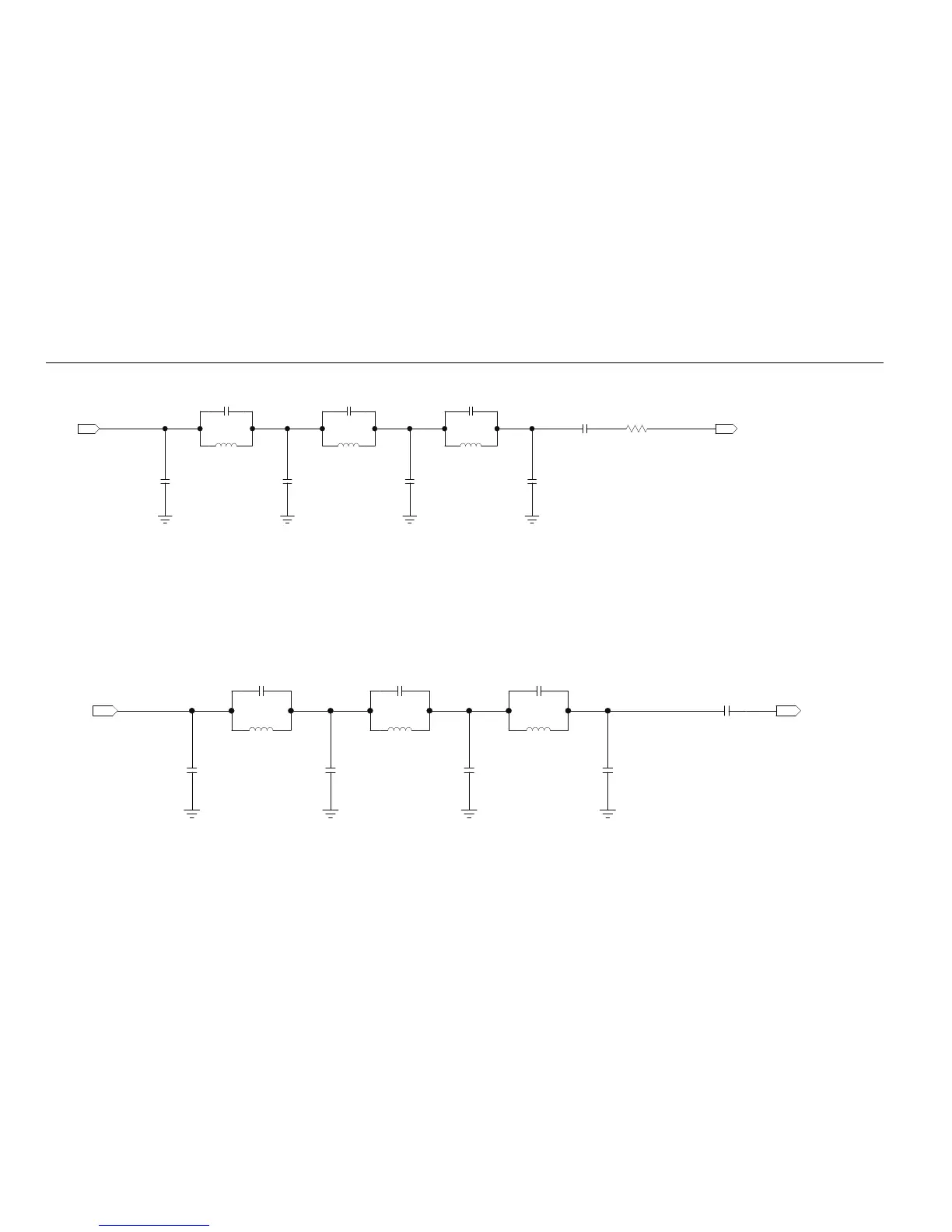

Figure 8-43. MNUT4000A/C/E UHF1 Harmonic Filter Circuit
Figure 8-44. MNUT4000A/C/E VHF MHz Harmonic Filter Circuit
RF_OUT_2
IN
C1803
C1804
L1803
3.9PF
3.9PF
10.2NH
C1807
6.8PF
C1820
C1821
L1809
10.2NH
3.9PF
9.1PF
R1801
C1827
C1822
HF_OUT_2
4.7PF
100PF
0
OUT
C1826
L1811
2.7PF
10.2NH
43.41NH
5.1PF
C1226
8.2PF
C1220
C1204
L1203
C1221
C1227
C1222
21
L1211
C1203
L1209
C1207
RF_OUT_1
11PF
24PF
HF_OUT_1
330PF
24PF
43.41NH
9.1PF
43.41NH
OUT
IN
6.2PF
