Troubleshooting Waveforms: Audio SSI 6-11
6.3.4 BCLK

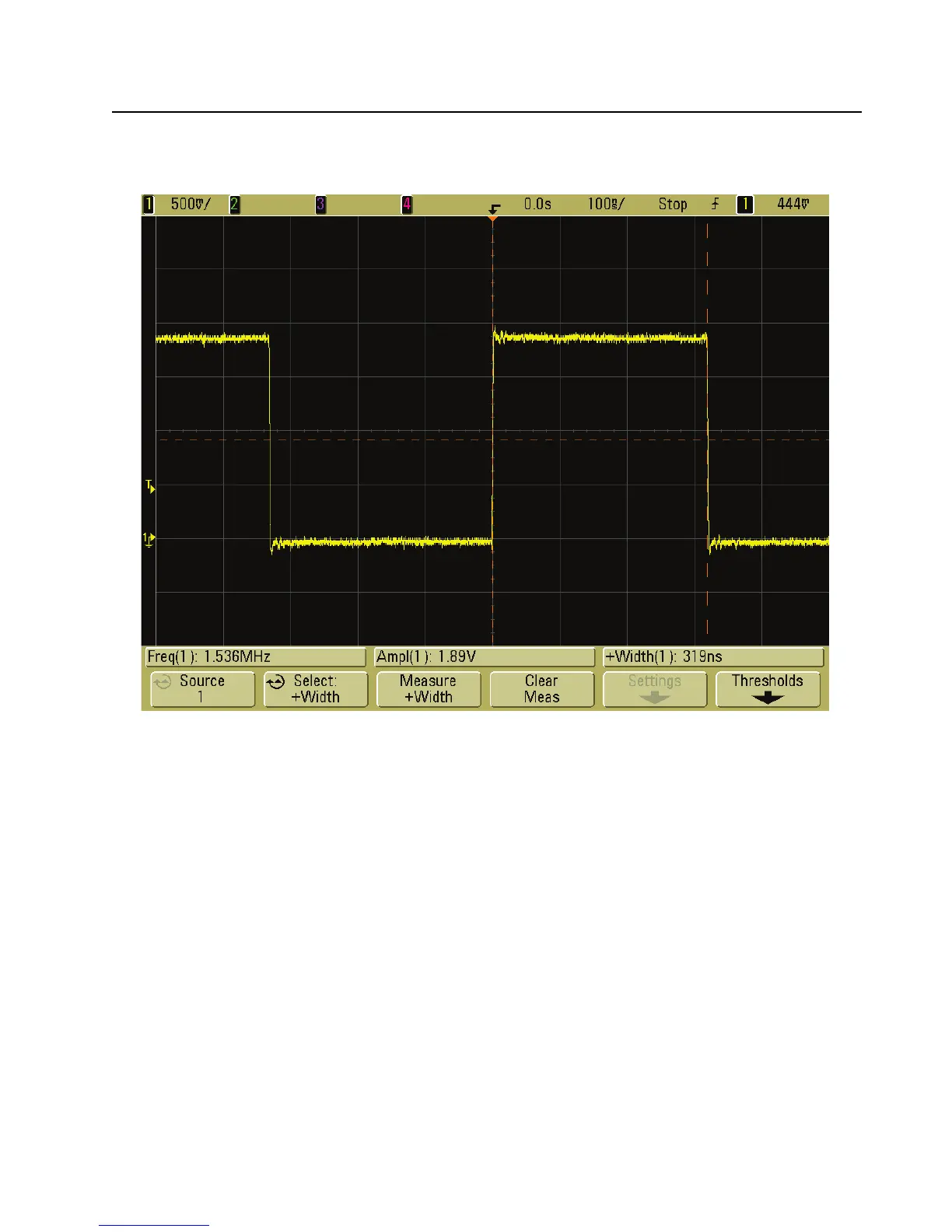

Trace 1: Trace recorded at R3006.
Figure 6-9. Audio SSI – BCLK. Waveform
