6-44 Troubleshooting Waveforms: Removable Memory
6.14.3 MMC2 D1

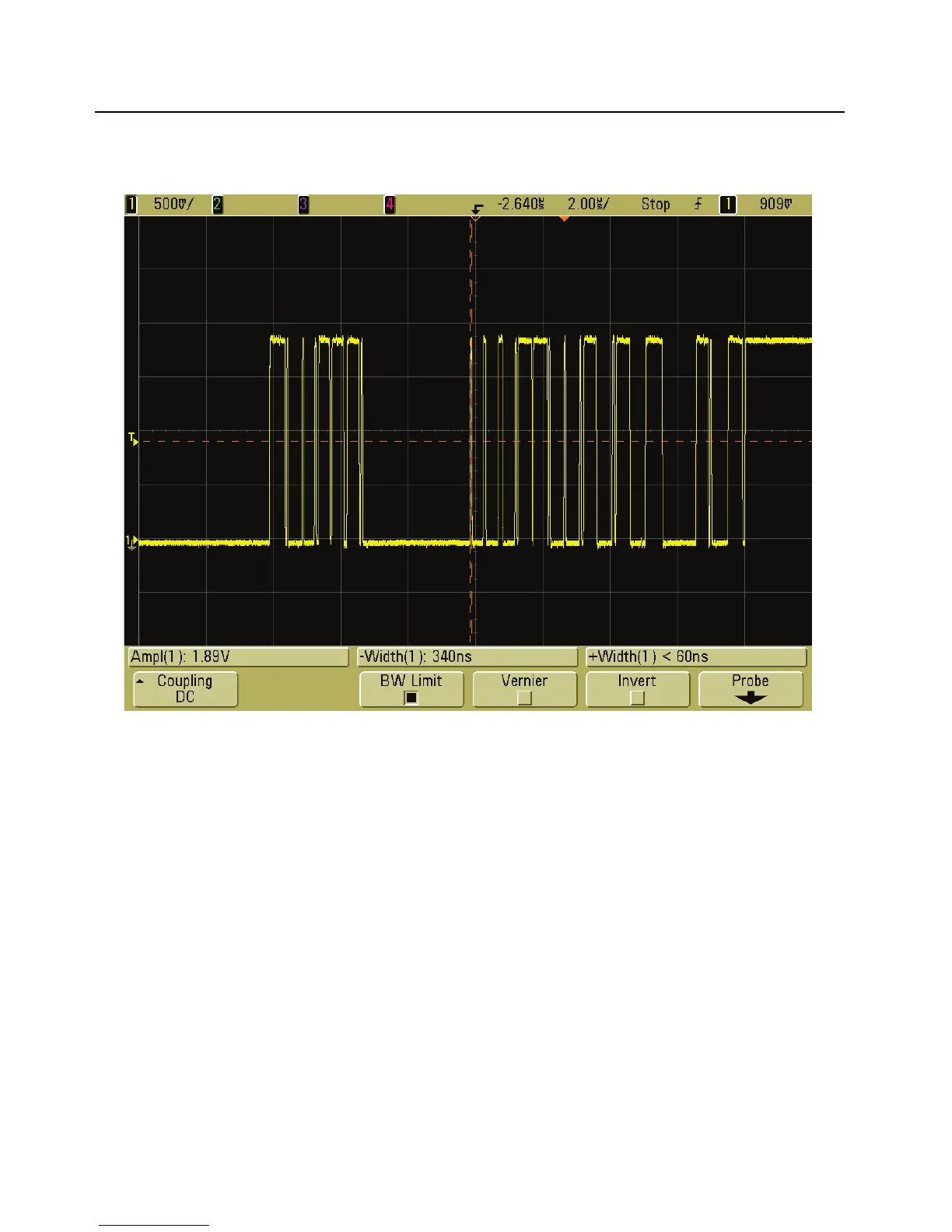

Trace 1: Trace recorded at Pin 17 of J4001.
Figure 6-42. Removable Memory – MMC2 D1 Waveform
