6-18 Troubleshooting Waveforms: SPI
6.6 SPI
6.6.1 CLK

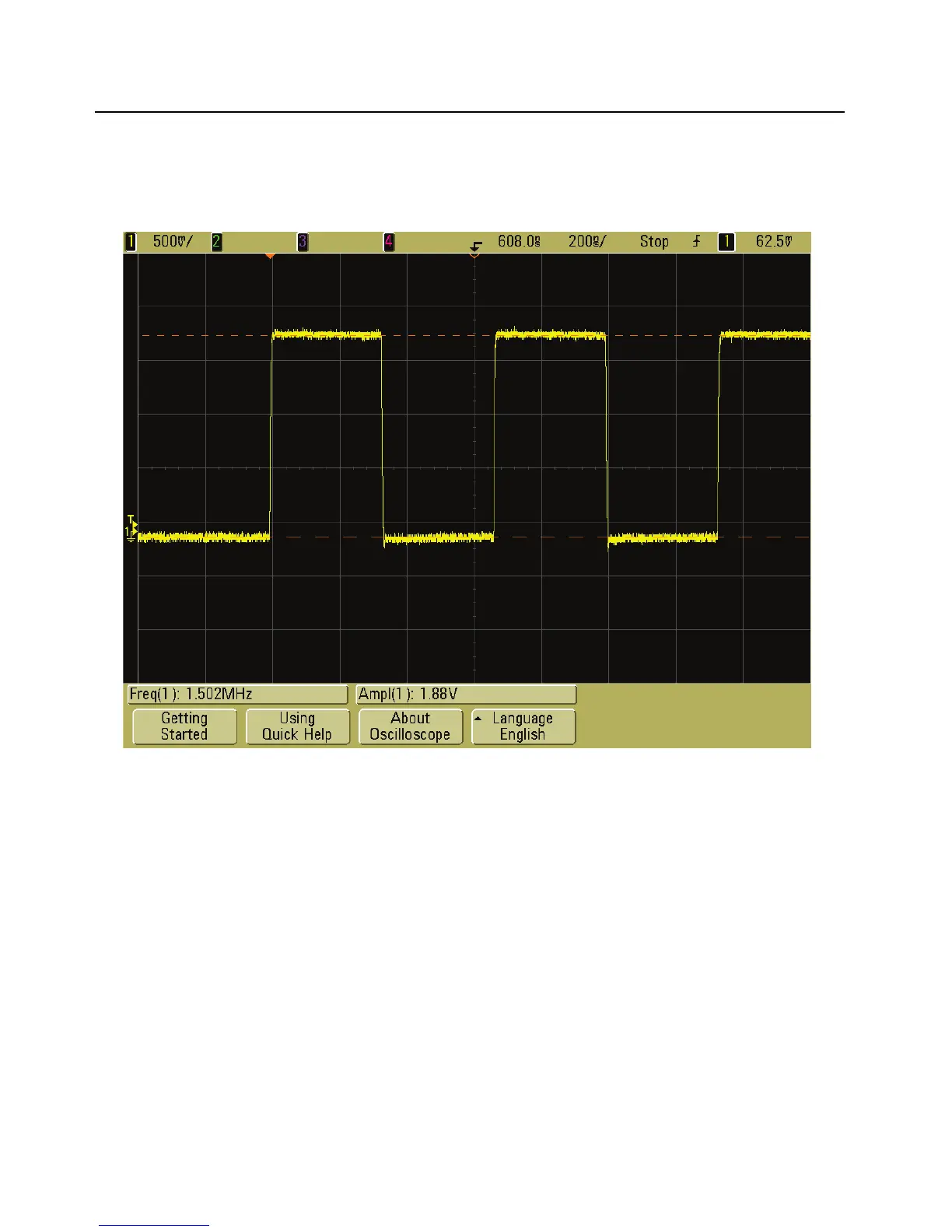

Trace 1: Trace recorded at R6605.
Figure 6-16. SPI – CLK Waveform
