8-226 Schematics, Boards Overlays, and Parts Lists: Transceiver (RF) Boards: UHF2/VHF

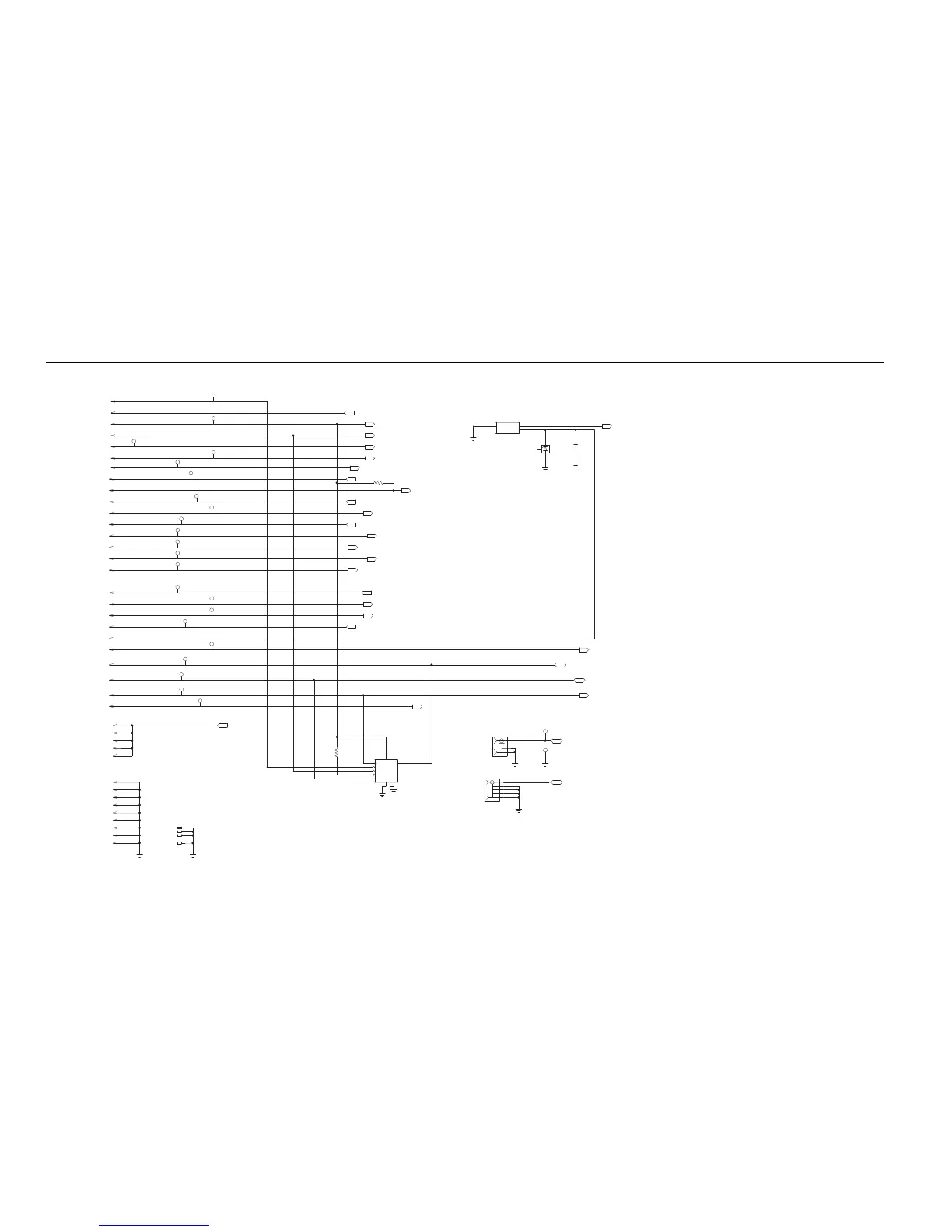

Figure 8-103. MNUT4004A/C/E Miscellaneous Connector Circuit

P101

M104

M105

M106

M103

DNP

DIG_CTRL_SSI_TRIGGER

DIG_CTRL_IO49

DIG_DATA_SSI_RX_FS

DC_LIN_1_875V_D

DIG_CTRL_RSTB

DIG_CTRL_TX_INHIBIT_TYPE_1

DIG_DATA_SSI_RX_DOUTA

DIG_CTRL_SPI_EEPROM_PE

DIG_BATTERY_DATA

DIG_CTRL_SPI_TRIDENT_PE

DIG_TX_SSI_CLK

DIG_DATA_SPI_MISO

DIG_SPI_CLK

DIG_SYNCB

RF_GPS

DIG_CTRL_LOCK

DIG_CTRL_SPI_ABACUS_PE

DC_SW1_3_6V

DIG_DATA_SPI_MOSI

CLK_SSI_RX

ANA_CTRL_ISET

DIG_CTRL_SPI_DAC_PE

CLK_16_8_MHZ

DIG_DATA_TX_SSI

DIG_TX_SSI_FS

DC_FUSED_B+

111

1111

TP125

TP120

TP124

TP114

TP113

TP115

TP116

TP103

TP101

TP105

TP104

TP102

TP111

TP112

TP106

TEST_POINT

DC_LIN_2_775V

TEST_POINT

TP126

TP109

TP117

TP118

TP108

TP110

TP107

TEST_POINT

OUT

R103

10K

OUT

HOLD

VCC

VSS

GND

U101

M95320R

R101

10K

OUT

PIN1

PIN2

PIN3

M101

VR101

C101

DC_BATT

MMBZ5250B

330PF

20V

CONTACT

OUT

TP123

TP122

J102

J101

TEST_POINT

RF_AUX

RF_ANT
