Troubleshooting Waveforms: TX SSI 6-15
6.5 TX SSI
6.5.1 CLK.
Trace 1: Trace recorded at R1008.

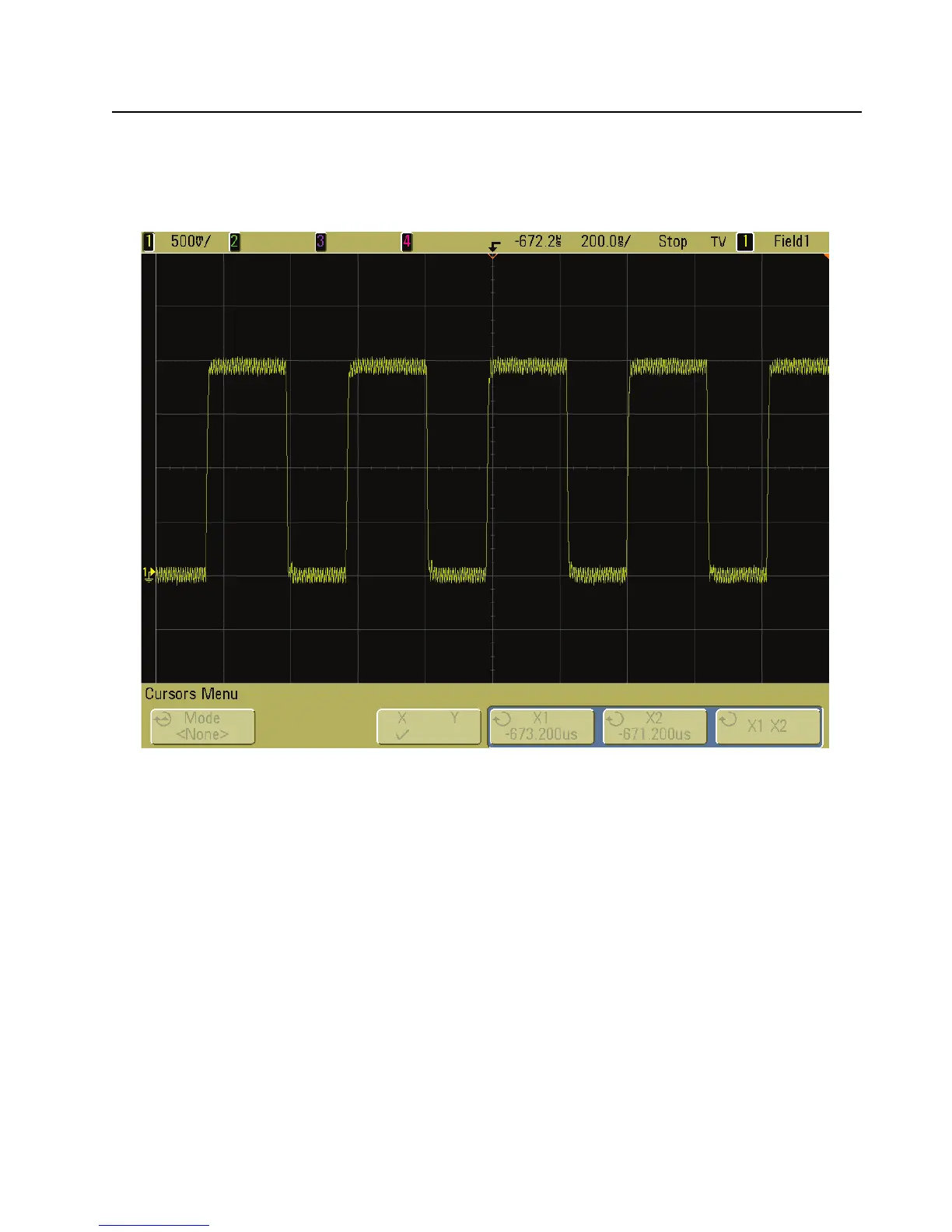

Figure 6-13. TX SSI – TX CLK. Waveform
