6.16 GPS
6.16.1 GPS TCXO (26 MHz TCXO)

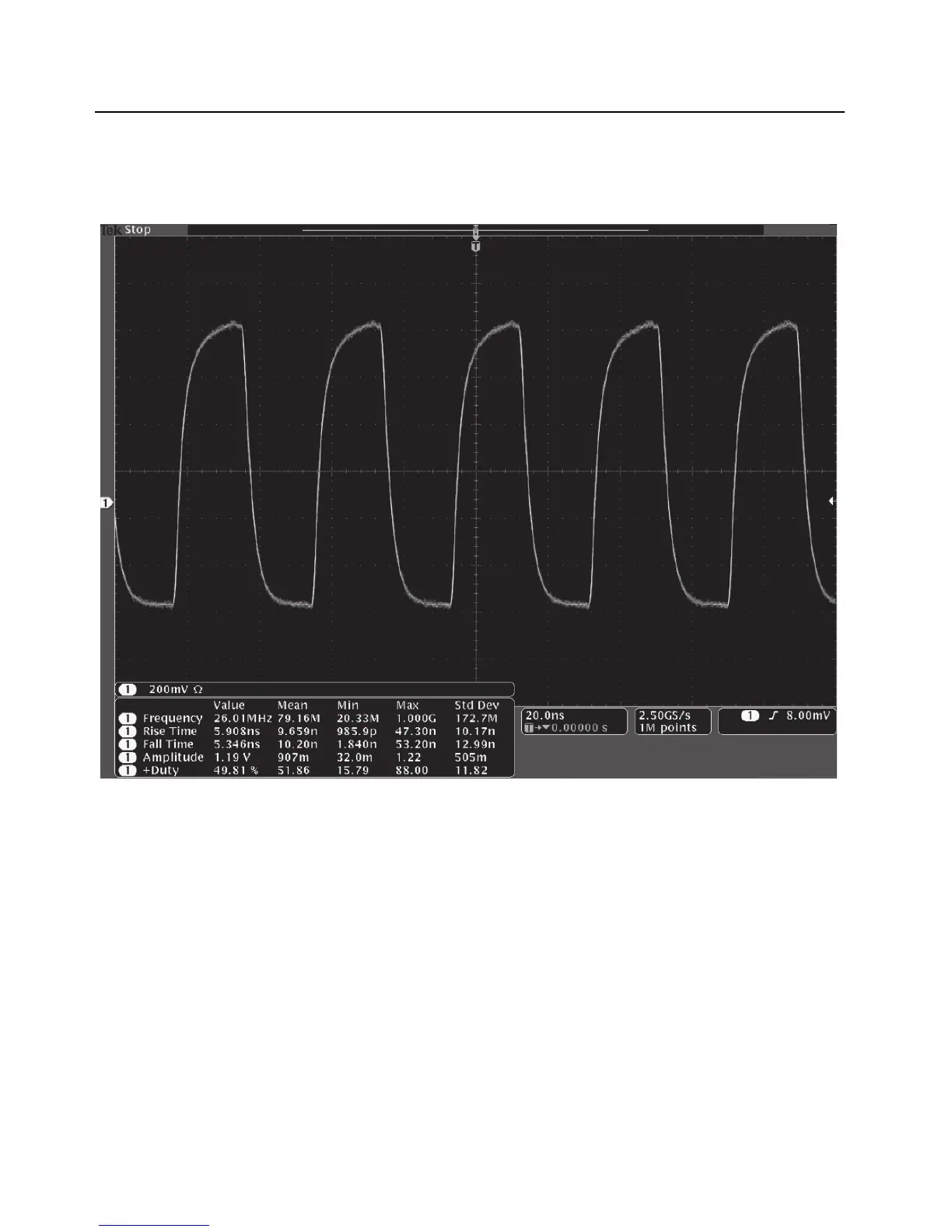

Trace 1: Trace recorded at C2238.
Figure 6-50. GPS TCXO Waveforms
