6-10 Troubleshooting Waveforms: Audio SSI
6.3.3 Sync.
Trace 1: Trace recorded at R3005.

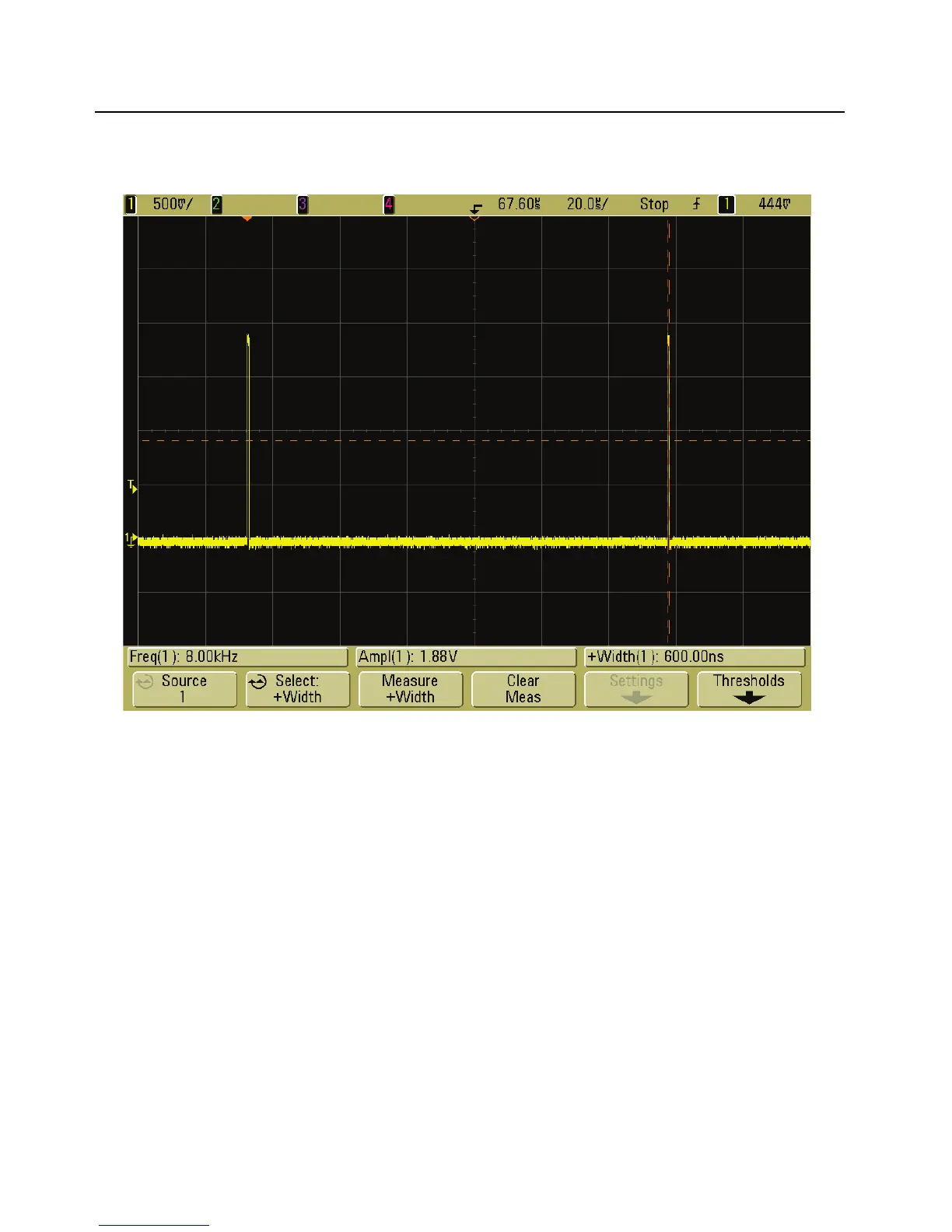

Figure 6-8. Audio SSI – Sync. Waveform
