6-42 Troubleshooting Waveforms: Removable Memory
6.14 Removable Memory
6.14.1 MMC2 CMD

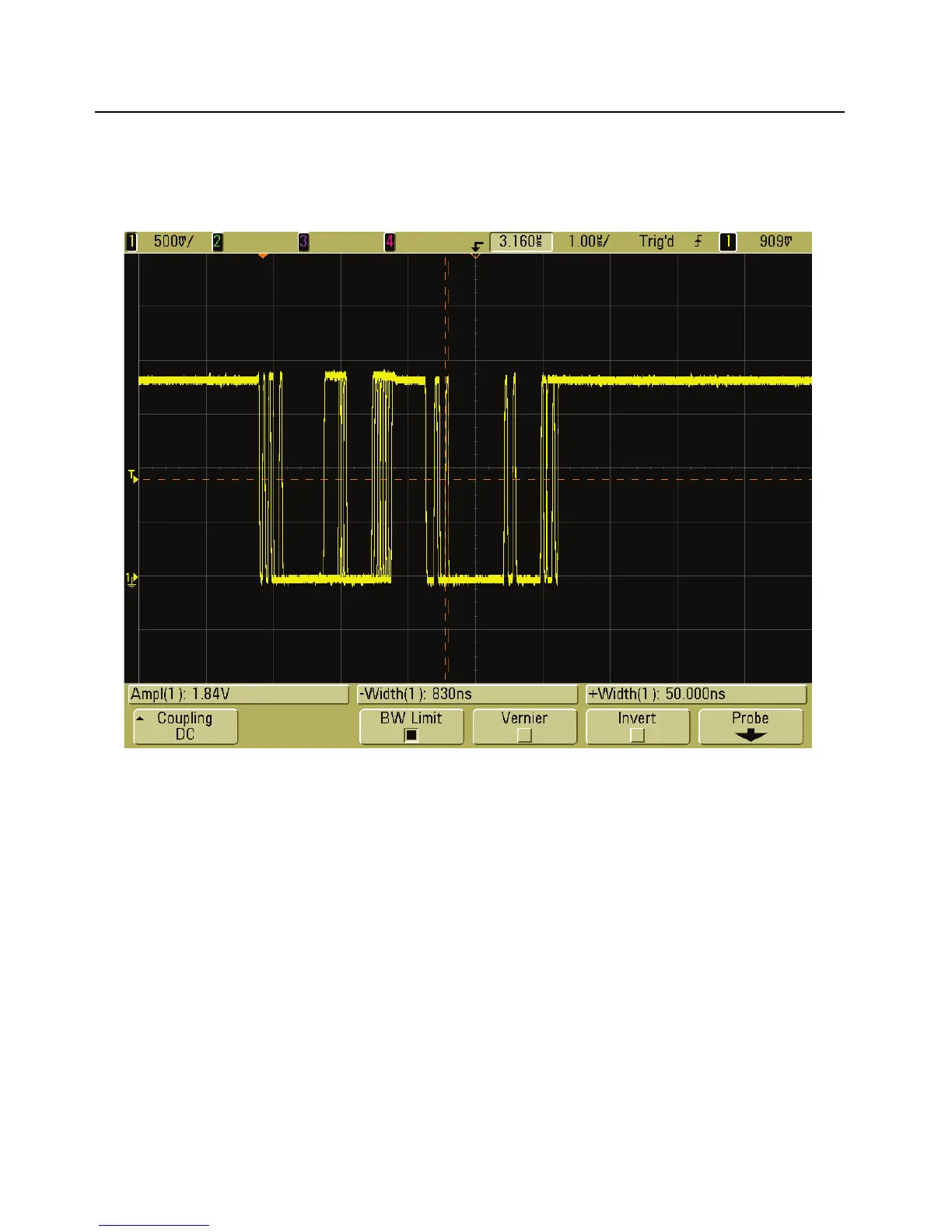

Trace 1: Trace recorded at Pin 23 of J4001.
Figure 6-40. Removable Memory – MMC2 CMD Waveform
