Troubleshooting Waveforms: SPI 6-21
6.6.4 MOSI
Trace 1: Trace recorded at R6603.

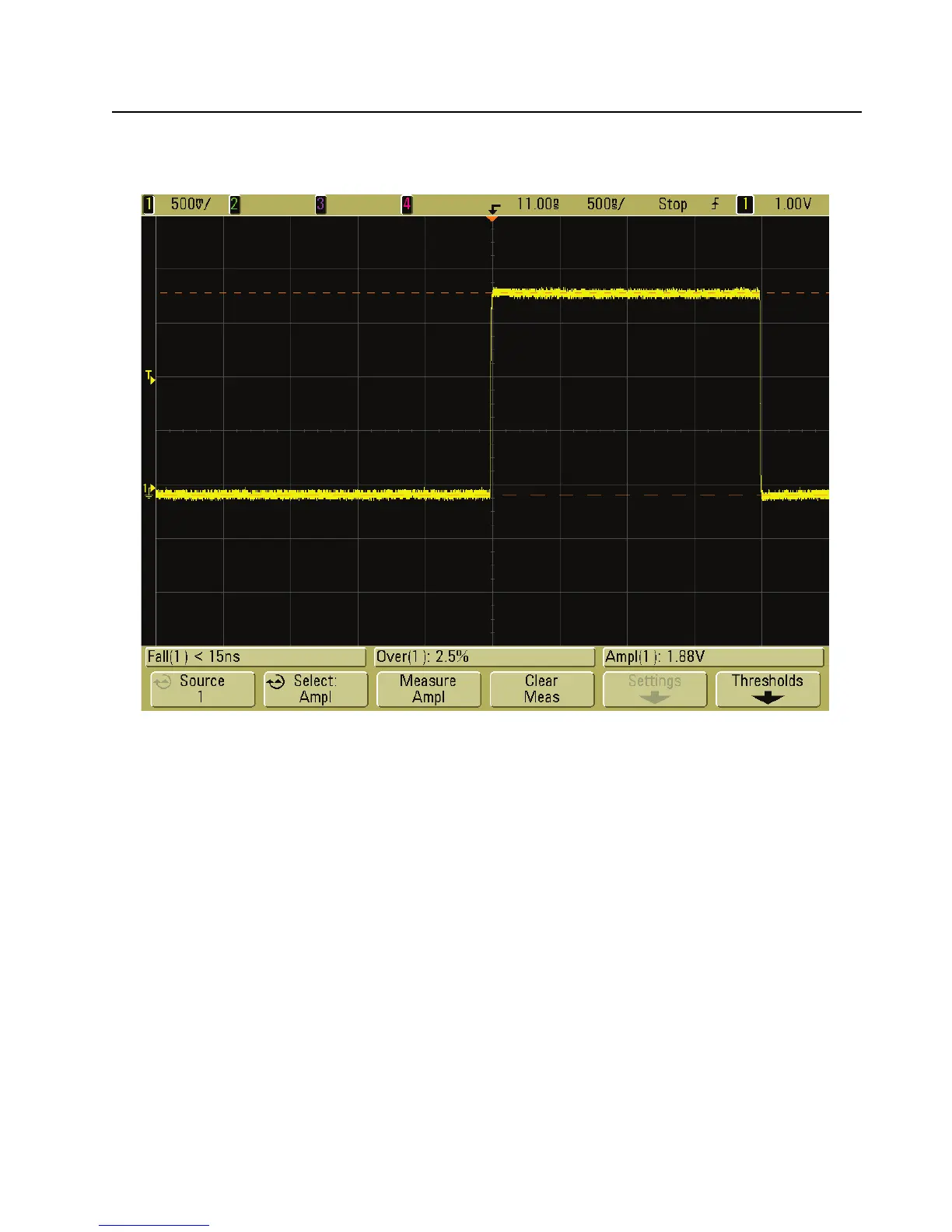

Figure 6-19. SPI – MOSI Waveform
