6-40 Troubleshooting Waveforms: FLASH CONTROL
6.13.6 WAIT

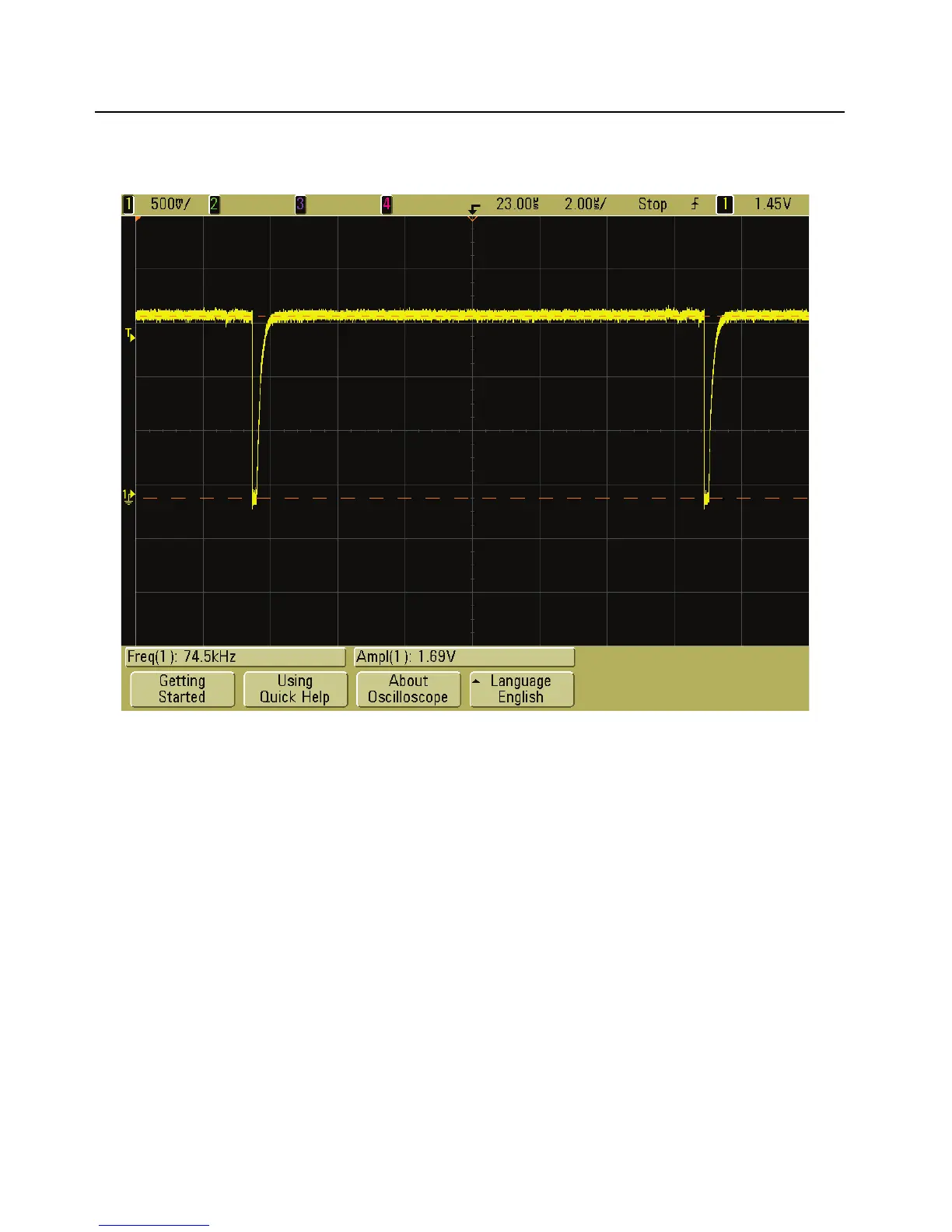

Trace 1: Trace recorded at R6316.
Figure 6-38. FLASH CONTROL – WAIT Waveform
