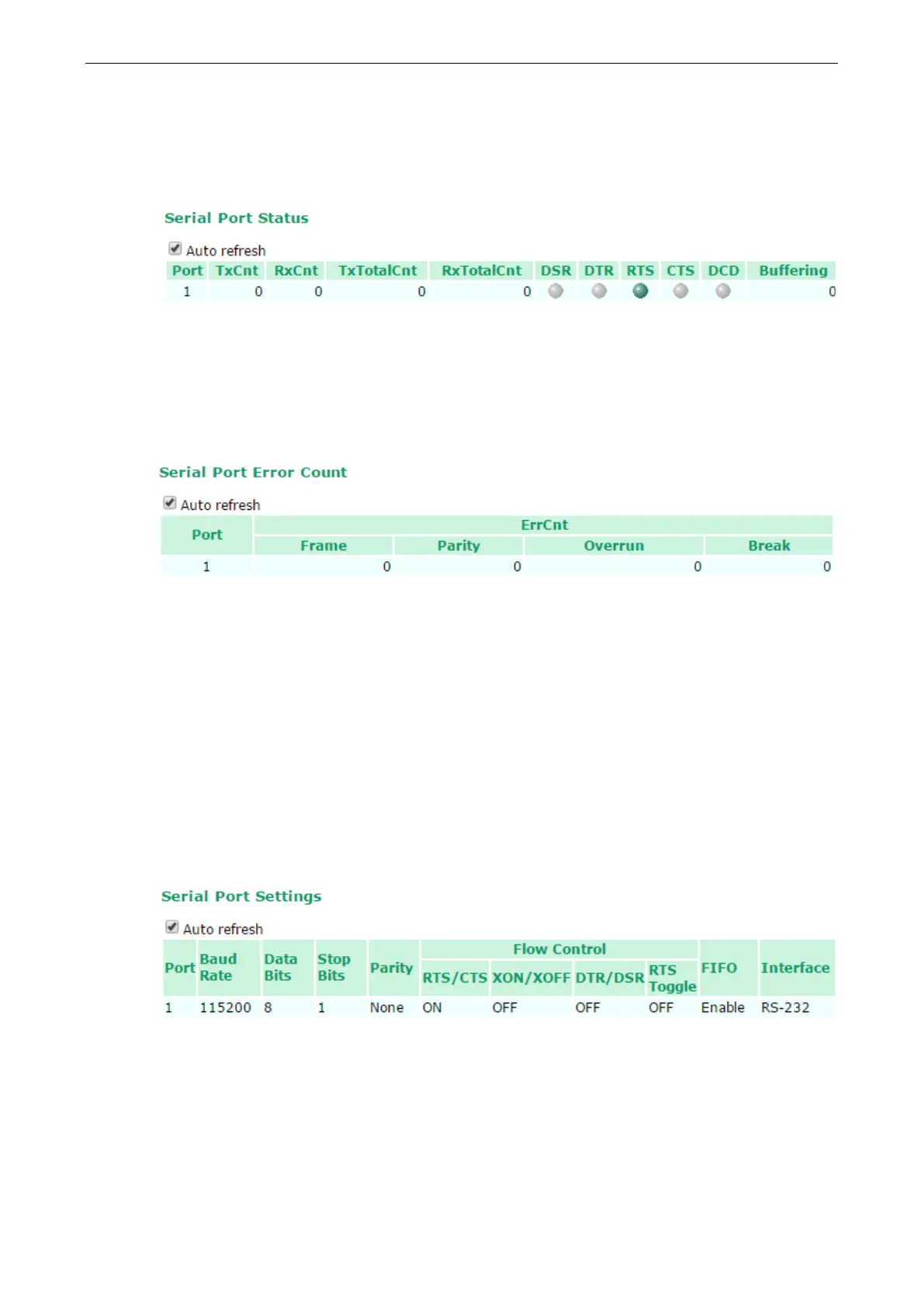

Serial Port Status
Go to Serial Port Status under Serial Status to view the current status of each serial port.
Serial Port Status

Buffering.
Monitor port-buffering usage (bytes) of each serial port.
Serial Port Error Count
Go to Serial Port Error Count under Serial Status to view the error count for each serial port.
Frame: Framing error indicates that the received character did not have a valid stop bit.
Parity: Parity error indicates that the received data character does not match the parity selected.
Overrun: The NPort is unable to hand-receive data to a hardware buffer because the input rate exceeds the
NPort’s ability to handle the data.
Break: Break interrupt indicates that the received data input was held low for longer than a full-word
transmission time. A full-word transmission time is defined as the total time to transmit the start, data, parity,
and stop bits.
Serial Port Settings
Go to Serial Port Settings under Serial Status to view a summary of the settings for each serial port.

Moxa Technologies NPORT 6150 Specifications

General

Display	-
Baud rate	921.6 Kbit/s
Data bits	5, 6, 7, 8
Isolation	1.5 kV
Stop bits	1, 1.5, 2
RS-232 signals	CTS, DCD, DSR, DTR, GND, RTS, Rx, Tx
RS-422 signals	GND, RxD+, RxD-, TxD+, TxD-
RS-485 signals	Data+, Data-, GND, RxD+, RxD-, TxD+, TxD-
Flow Control type	RTS/CTS, XON/XOFF
Flow control support	Yes
Serial interface type	RS-232, RS-422, RS-485
Serial ports quantity	1
Ethernet LAN data rates	10, 100 Mbit/s
Surge protection voltage	0.5 kV
Mean time between failures (MTBF)	2097705 h
Cabling technology	10/100Base-T(X)
USB 2.0 ports quantity	0
Built-in processor	No
Input voltage	12 - 48 V
Power consumption	285 mA
Power source type	DC
Storage temperature (T-T)	-40 - 75 °C
Maximum operating altitude	2000 m
Operating temperature (T-T)	0 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Supported network protocols	ICMP, IPv4/v6, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1/V2c/V3, HTTP, SMTP, ARP, PPPoE
Security algorithms	AES, DES, SSH, SSL/TLS
Product color	Black, Blue, Grey
Housing material	Metal
Sustainability certificates	RoHS

Weight and Dimensions

Weight	700 g
Dimensions (WxDxH)	67 x 100.4 x 29 mm
