Moxa Technologies NPORT 6150 User Manual

NPort 6000 Series Software Installation/Configuration
13-4

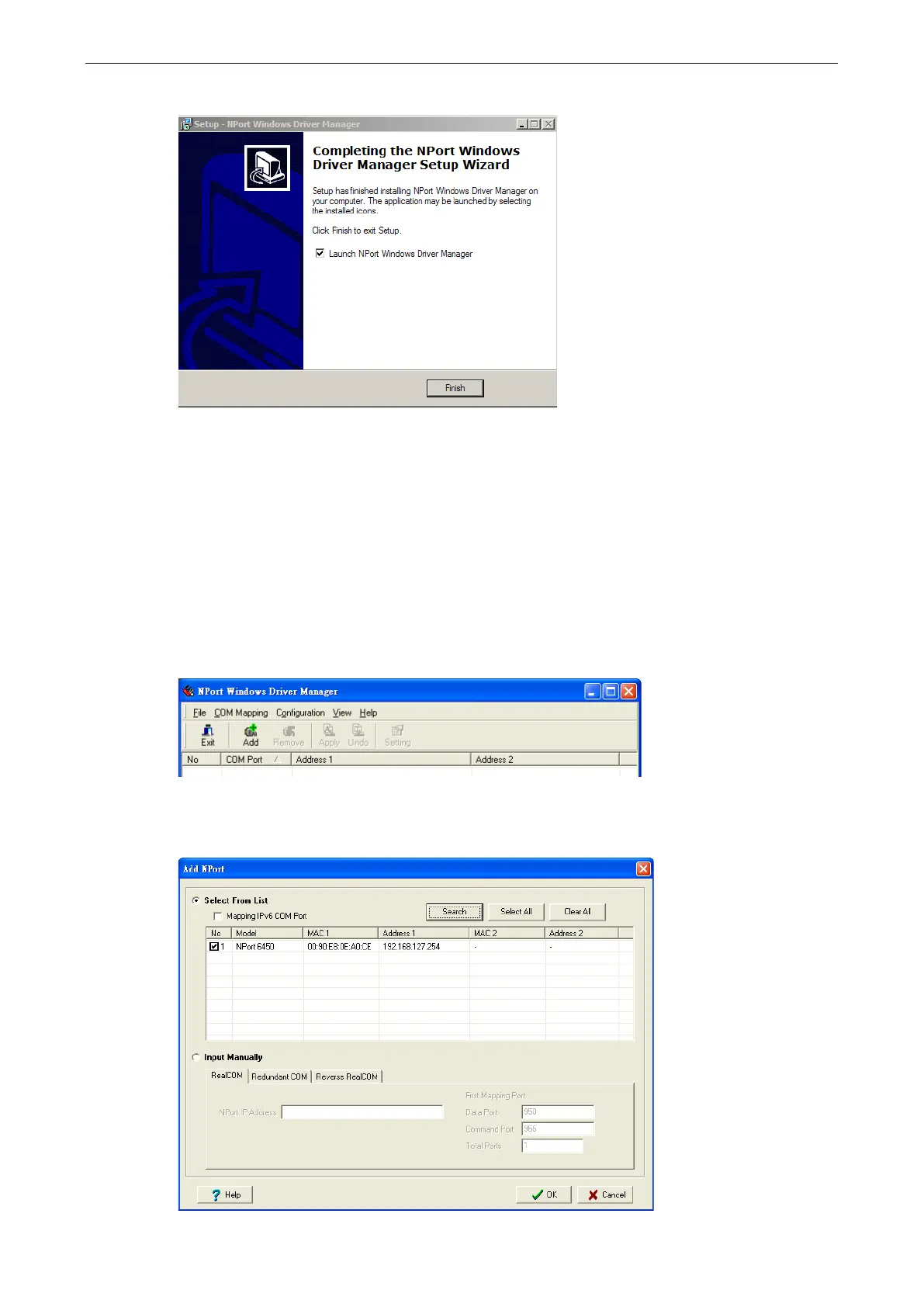

6. Click Finish to complete the installation of the NPort Windows Driver Manager.
Using NPort Windows Driver Manager
Real COM Mode
After you install NPort Windows Driver Manager, you can set up the NPort 6000’s serial ports as remote COM
ports for your PC host. Make sure that the serial port(s) on your NPort 6000 are set to Real COM mode when
mapping COM ports with the NPort Windows Driver Manager.
1. Go to Start  NPort Windows Driver Manager  NPort Windows Driver Manager to start the COM
mapping utility.
2. Click the Add icon.
3. Click Rescan to search for NPort device servers. From the list that is generated, select the server to which
you will map COM ports, and then click OK. The default IPv4 address will be changed to IPv6 address when
Mapping IPv6 COM Port is checked.

Moxa Technologies NPORT 6150 Specifications

General

Display	-
Baud rate	921.6 Kbit/s
Data bits	5, 6, 7, 8
Isolation	1.5 kV
Stop bits	1, 1.5, 2
RS-232 signals	CTS, DCD, DSR, DTR, GND, RTS, Rx, Tx
RS-422 signals	GND, RxD+, RxD-, TxD+, TxD-
RS-485 signals	Data+, Data-, GND, RxD+, RxD-, TxD+, TxD-
Flow Control type	RTS/CTS, XON/XOFF
Flow control support	Yes
Serial interface type	RS-232, RS-422, RS-485
Serial ports quantity	1
Ethernet LAN data rates	10, 100 Mbit/s
Surge protection voltage	0.5 kV
Mean time between failures (MTBF)	2097705 h
Cabling technology	10/100Base-T(X)
USB 2.0 ports quantity	0
Built-in processor	No
Input voltage	12 - 48 V
Power consumption	285 mA
Power source type	DC
Storage temperature (T-T)	-40 - 75 °C
Maximum operating altitude	2000 m
Operating temperature (T-T)	0 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Supported network protocols	ICMP, IPv4/v6, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1/V2c/V3, HTTP, SMTP, ARP, PPPoE
Security algorithms	AES, DES, SSH, SSL/TLS
Product color	Black, Blue, Grey
Housing material	Metal
Sustainability certificates	RoHS

Weight and Dimensions

Weight	700 g
Dimensions (WxDxH)	67 x 100.4 x 29 mm
