NPort 6000 Series Introducing Serial Port Operation Modes
4-6

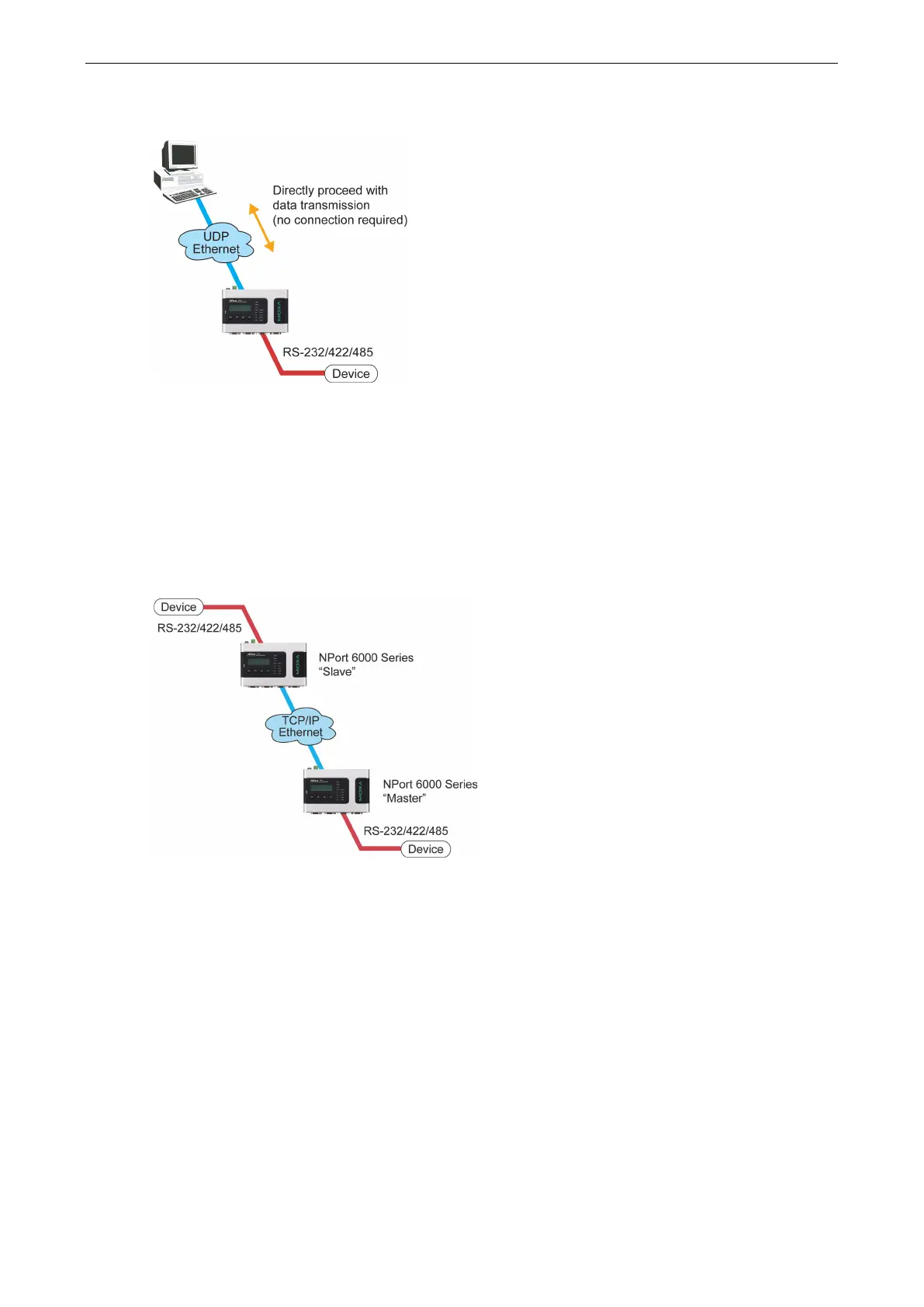

UDP Mode
Compared to TCP communication, UDP is faster and more efficient. In UDP mode, you can unicast or
multi-unicast data from a serial device to one or multiple host computers; and the serial device can receive data
from one or multiple host computers. These traits make UDP mode especially suited for message display
applications.
Pair Connection and Secure Pair Connection
Modes
In Pair Connection mode, two NPort 6000 servers work together to remove the 15-meter distance limitation
imposed by the RS-232 interface. One server is arbitrarily designated the master and the other as the slave—it
does not matter which is which as long as there is one of each. One server is connected from its RS-232 port
to the COM port of a PC or another type of computer, such as a handheld PDA that has a serial port; the other
server is connected to the serial device through its RS-232 port.
The two servers are then connected to each other over the network.

Moxa Technologies NPORT 6150 Specifications

General

Display	-
Baud rate	921.6 Kbit/s
Data bits	5, 6, 7, 8
Isolation	1.5 kV
Stop bits	1, 1.5, 2
RS-232 signals	CTS, DCD, DSR, DTR, GND, RTS, Rx, Tx
RS-422 signals	GND, RxD+, RxD-, TxD+, TxD-
RS-485 signals	Data+, Data-, GND, RxD+, RxD-, TxD+, TxD-
Flow Control type	RTS/CTS, XON/XOFF
Flow control support	Yes
Serial interface type	RS-232, RS-422, RS-485
Serial ports quantity	1
Ethernet LAN data rates	10, 100 Mbit/s
Surge protection voltage	0.5 kV
Mean time between failures (MTBF)	2097705 h
Cabling technology	10/100Base-T(X)
USB 2.0 ports quantity	0
Built-in processor	No
Input voltage	12 - 48 V
Power consumption	285 mA
Power source type	DC
Storage temperature (T-T)	-40 - 75 °C
Maximum operating altitude	2000 m
Operating temperature (T-T)	0 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Supported network protocols	ICMP, IPv4/v6, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1/V2c/V3, HTTP, SMTP, ARP, PPPoE
Security algorithms	AES, DES, SSH, SSL/TLS
Product color	Black, Blue, Grey
Housing material	Metal
Sustainability certificates	RoHS

Weight and Dimensions

Weight	700 g
Dimensions (WxDxH)	67 x 100.4 x 29 mm
