Moxa Technologies NPORT 6150 User Manual

NPort 6000 Series Software Installation/Configuration
13-2
Overview
The Documentation & software CD included with your NPort 6000 is designed to make the installation and
configuration procedure easy and straightforward. This auto-run CD includes NPort Windows Driver Manager
(for COM mapping), Device Search Utility (to broadcast search for all NPort 6000’s accessible over the network),
the NPort 6000 User’s Manual, and the NPort firmware upgrade utility.
NPort Windows Driver Manager
Installing NPort Windows Driver Manager
NPort Windows Driver Manager is intended for use with NPort 6000 serial ports that are set to Real COM mode.
The software manages the installation of drivers that allow you to map unused COM ports on your PC to serial
ports on the NPort 6000. These drivers are designed for use with Windows 98/ME/2000/XP/2003. When the
drivers are installed and configured, devices that are attached to serial ports on the NPort 6000 will be treated
as if they were attached to your PC’s own COM ports.
1. Click the INSTALL COM Driver button in the NPort Installation CD auto-run window to install the NPort
Windows Driver. Once the installation program starts running, click Yes to proceed.

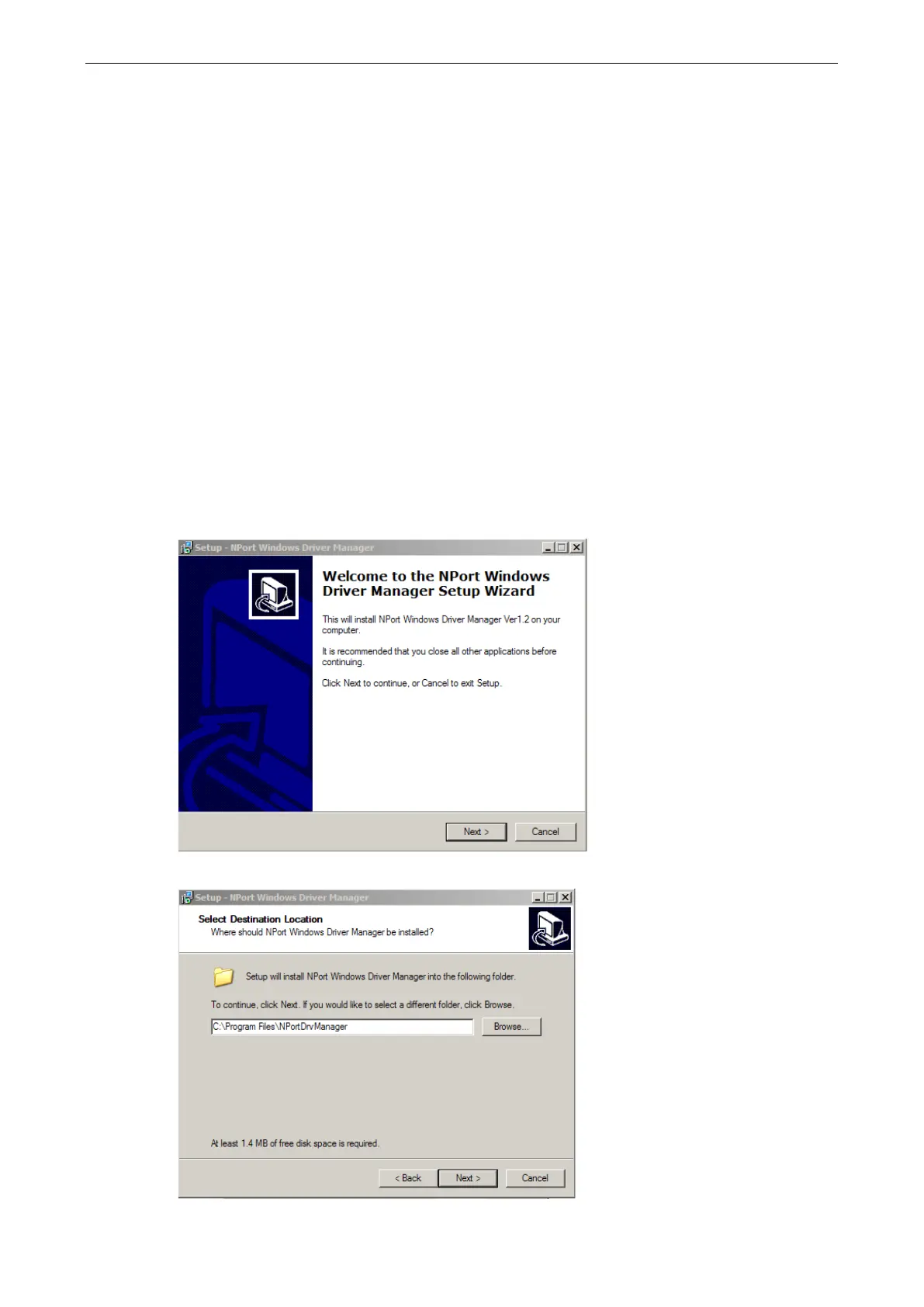

2. Click Next when the Welcome screen opens to proceed with the installation.
Click Next to install program files to the default directory, or click Browse to select an alternate location.

Moxa Technologies NPORT 6150 Specifications

General

Display	-
Baud rate	921.6 Kbit/s
Data bits	5, 6, 7, 8
Isolation	1.5 kV
Stop bits	1, 1.5, 2
RS-232 signals	CTS, DCD, DSR, DTR, GND, RTS, Rx, Tx
RS-422 signals	GND, RxD+, RxD-, TxD+, TxD-
RS-485 signals	Data+, Data-, GND, RxD+, RxD-, TxD+, TxD-
Flow Control type	RTS/CTS, XON/XOFF
Flow control support	Yes
Serial interface type	RS-232, RS-422, RS-485
Serial ports quantity	1
Ethernet LAN data rates	10, 100 Mbit/s
Surge protection voltage	0.5 kV
Mean time between failures (MTBF)	2097705 h
Cabling technology	10/100Base-T(X)
USB 2.0 ports quantity	0
Built-in processor	No
Input voltage	12 - 48 V
Power consumption	285 mA
Power source type	DC
Storage temperature (T-T)	-40 - 75 °C
Maximum operating altitude	2000 m
Operating temperature (T-T)	0 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Supported network protocols	ICMP, IPv4/v6, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1/V2c/V3, HTTP, SMTP, ARP, PPPoE
Security algorithms	AES, DES, SSH, SSL/TLS
Product color	Black, Blue, Grey
Housing material	Metal
Sustainability certificates	RoHS

Weight and Dimensions

Weight	700 g
Dimensions (WxDxH)	67 x 100.4 x 29 mm
