NPort 6000 Series Configuration with the Web Console
5-10

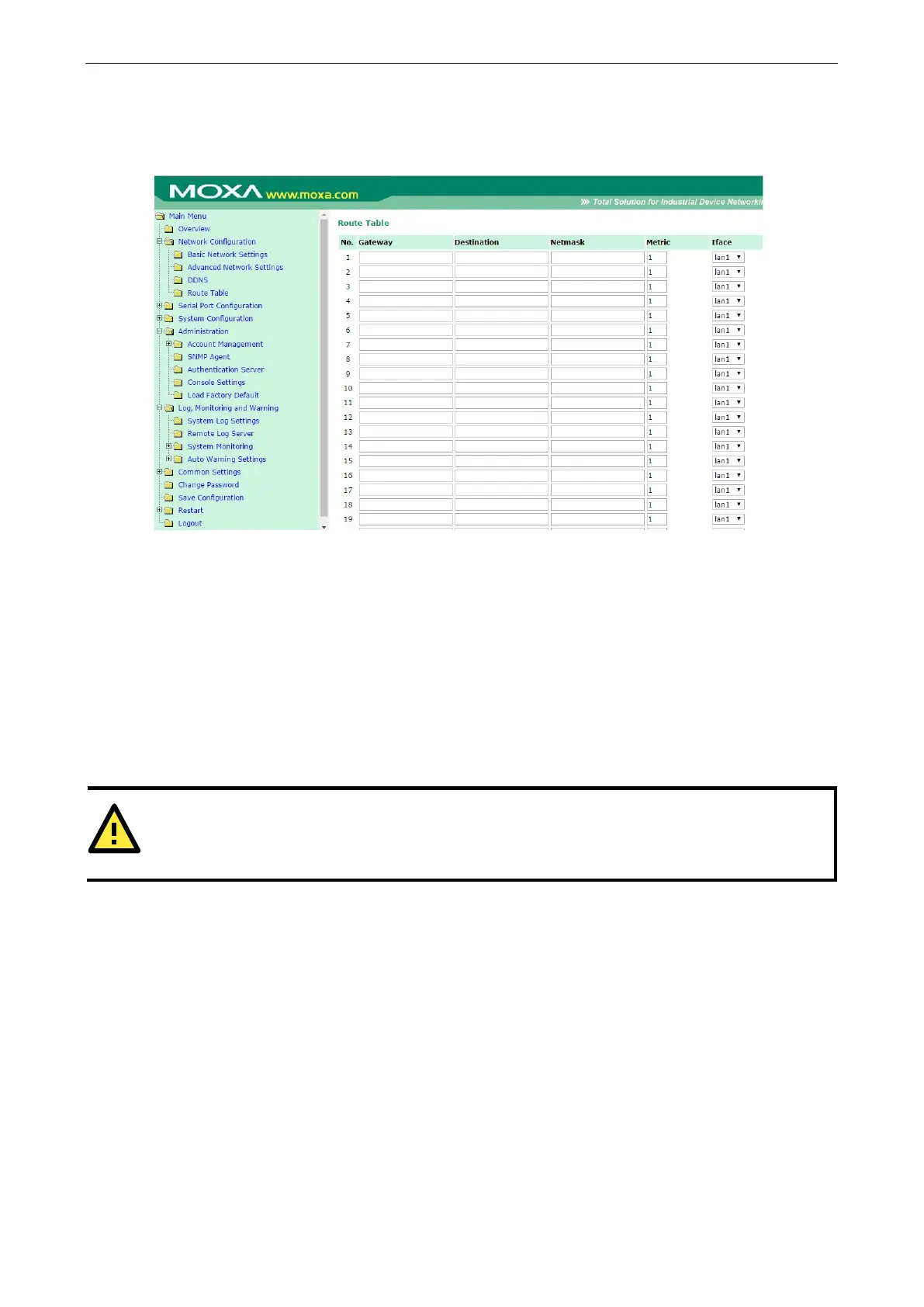

Configuring the Route Table
The route table is where you configure how the NPort 6000 will connect to an outside network.
You are allowed to have up to 32 entries in the route table. For each entry, you must provide information on the
gateway, destination, netmask, metric hops, and interface.
Gateway: This is the IP address of the next-hop router.
Destination: This is the host’s IP address or the network address of the route’s destination.
Netmask: This is the destination network’s netmask.
Metric: You may use this optional field to enter the number of hops from the source to the destination. This
allows the NPort 6000 to prioritize the routing of data packets if more than one router is available to reach a
given destination.
Iface: This is the network interface to which the packet must be sent.
ATTENTION
When a serial port is configured for PPP/SLIP, the
Iface field must be set to that serial port for proper
communication.

Moxa Technologies NPORT 6150 Specifications

General

Display	-
Baud rate	921.6 Kbit/s
Data bits	5, 6, 7, 8
Isolation	1.5 kV
Stop bits	1, 1.5, 2
RS-232 signals	CTS, DCD, DSR, DTR, GND, RTS, Rx, Tx
RS-422 signals	GND, RxD+, RxD-, TxD+, TxD-
RS-485 signals	Data+, Data-, GND, RxD+, RxD-, TxD+, TxD-
Flow Control type	RTS/CTS, XON/XOFF
Flow control support	Yes
Serial interface type	RS-232, RS-422, RS-485
Serial ports quantity	1
Ethernet LAN data rates	10, 100 Mbit/s
Surge protection voltage	0.5 kV
Mean time between failures (MTBF)	2097705 h
Cabling technology	10/100Base-T(X)
USB 2.0 ports quantity	0
Built-in processor	No
Input voltage	12 - 48 V
Power consumption	285 mA
Power source type	DC
Storage temperature (T-T)	-40 - 75 °C
Maximum operating altitude	2000 m
Operating temperature (T-T)	0 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Supported network protocols	ICMP, IPv4/v6, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1/V2c/V3, HTTP, SMTP, ARP, PPPoE
Security algorithms	AES, DES, SSH, SSL/TLS
Product color	Black, Blue, Grey
Housing material	Metal
Sustainability certificates	RoHS

Weight and Dimensions

Weight	700 g
Dimensions (WxDxH)	67 x 100.4 x 29 mm
