Moxa Technologies NPORT 6150 User Manual

NPort 6000 Series RADIUS Server
E-3
Setting up the NPort 6000

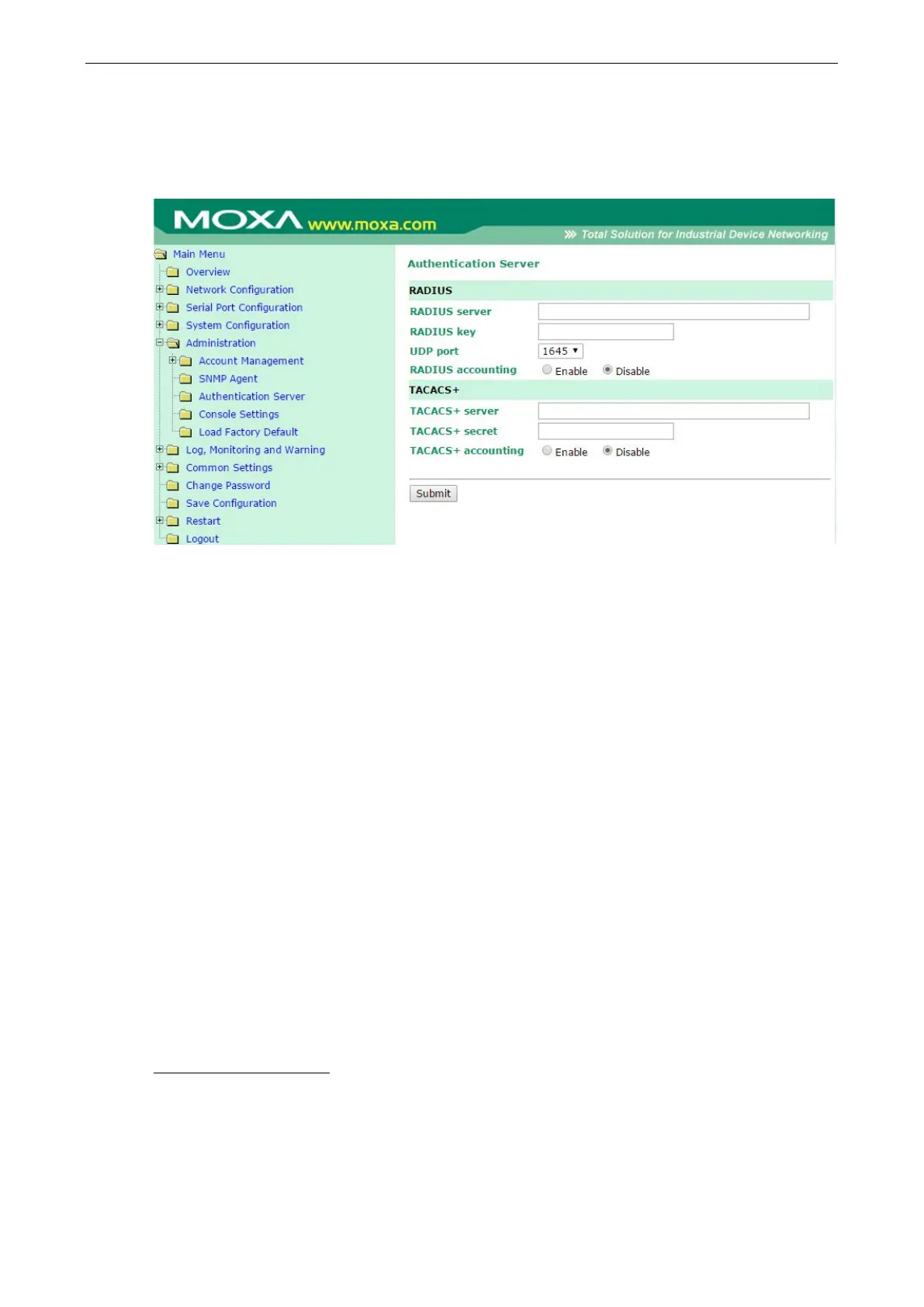

Setting up the RADIUS Server IP Address
RADIUS server: This is the IP address of the RADIUS server.
RADIUS key: This is the password that is used to access the RADIUS server IUS server
UDP port: This is the RADIUS server’s assigned UDP port.
RADIUS accounting: This field enables or disables RADIUS accounting.
Serial Port Configuration
RADIUS is an effective authentication method for dial-up services. In addition to dial-up services (PPP, SLIP,
and Dynamic), the NPort 6000 supports RADIUS settings for terminal applications and console management
applications. You will see it as an option for Authentication type when configuring the port’s operation mode.
Please refer to Chapter 7, Configuring Serial Port Operation Modes, for detailed information and configuration
instructions.
Setting up UNIX Hosts
Moxa recommends the FreeRADIUS server for UNIX users. FreeRADIUS is the premiere open-source RADIUS
server and is one of the top five RADIUS servers in use worldwide. It is effective for both embedded systems
with small amounts of memory and for systems with millions of users. It is fast, flexible, and configurable, and
it supports more authentication protocols than many commercial servers.
The server is released under the GNU General Public License (GPL), which means that it is free to download and
install. FreeRADIUS can be downloaded from the following website:
http://www.freeradius.com/

Moxa Technologies NPORT 6150 Specifications

General

Display	-
Baud rate	921.6 Kbit/s
Data bits	5, 6, 7, 8
Isolation	1.5 kV
Stop bits	1, 1.5, 2
RS-232 signals	CTS, DCD, DSR, DTR, GND, RTS, Rx, Tx
RS-422 signals	GND, RxD+, RxD-, TxD+, TxD-
RS-485 signals	Data+, Data-, GND, RxD+, RxD-, TxD+, TxD-
Flow Control type	RTS/CTS, XON/XOFF
Flow control support	Yes
Serial interface type	RS-232, RS-422, RS-485
Serial ports quantity	1
Ethernet LAN data rates	10, 100 Mbit/s
Surge protection voltage	0.5 kV
Mean time between failures (MTBF)	2097705 h
Cabling technology	10/100Base-T(X)
USB 2.0 ports quantity	0
Built-in processor	No
Input voltage	12 - 48 V
Power consumption	285 mA
Power source type	DC
Storage temperature (T-T)	-40 - 75 °C
Maximum operating altitude	2000 m
Operating temperature (T-T)	0 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Supported network protocols	ICMP, IPv4/v6, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1/V2c/V3, HTTP, SMTP, ARP, PPPoE
Security algorithms	AES, DES, SSH, SSL/TLS
Product color	Black, Blue, Grey
Housing material	Metal
Sustainability certificates	RoHS

Weight and Dimensions

Weight	700 g
Dimensions (WxDxH)	67 x 100.4 x 29 mm
