NPort 6000 Series Common Settings and Others
12-3

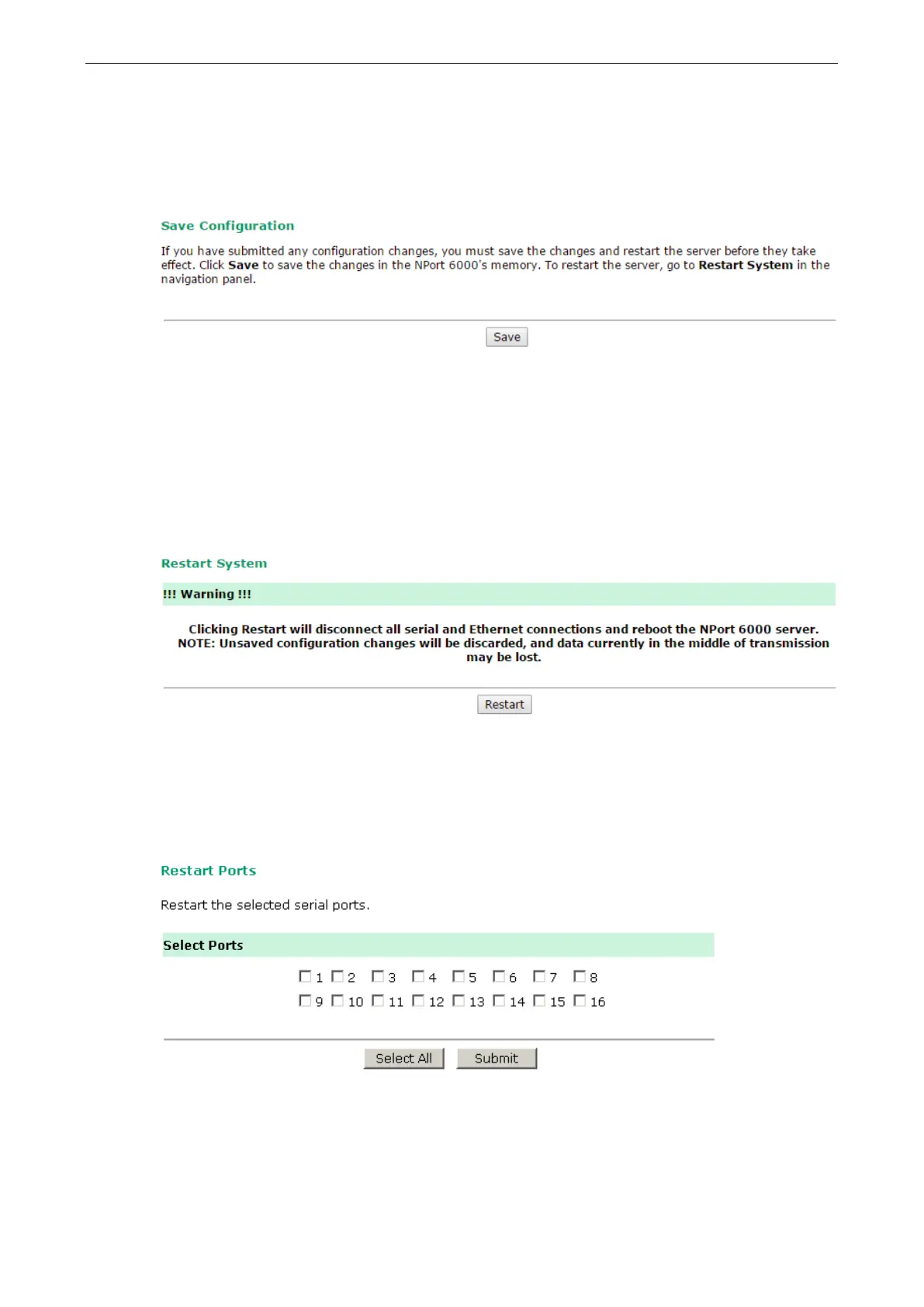

Save Configuration
Go to Save Configuration and then click Save to save your submitted configuration changes to the NPort
6000’s flash memory. The configuration changes will then be effective when the NPort 6000 is restarted. If you
do not save your changes before restarting, they will be discarded.
Restart
Restart System
Go to Restart System under Restart and then click Restart to restart the NPort 6000. Ensure that you save
all your configuration changes before you restart the system or else these changes will be lost.
Restart Ports
Go to Restart Ports under Restart and then select the ports to be restarted. Click Select All to select all the
ports. Click Submit to restart the selected ports.

Moxa Technologies NPORT 6150 Specifications

General

Display	-
Baud rate	921.6 Kbit/s
Data bits	5, 6, 7, 8
Isolation	1.5 kV
Stop bits	1, 1.5, 2
RS-232 signals	CTS, DCD, DSR, DTR, GND, RTS, Rx, Tx
RS-422 signals	GND, RxD+, RxD-, TxD+, TxD-
RS-485 signals	Data+, Data-, GND, RxD+, RxD-, TxD+, TxD-
Flow Control type	RTS/CTS, XON/XOFF
Flow control support	Yes
Serial interface type	RS-232, RS-422, RS-485
Serial ports quantity	1
Ethernet LAN data rates	10, 100 Mbit/s
Surge protection voltage	0.5 kV
Mean time between failures (MTBF)	2097705 h
Cabling technology	10/100Base-T(X)
USB 2.0 ports quantity	0
Built-in processor	No
Input voltage	12 - 48 V
Power consumption	285 mA
Power source type	DC
Storage temperature (T-T)	-40 - 75 °C
Maximum operating altitude	2000 m
Operating temperature (T-T)	0 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Supported network protocols	ICMP, IPv4/v6, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1/V2c/V3, HTTP, SMTP, ARP, PPPoE
Security algorithms	AES, DES, SSH, SSL/TLS
Product color	Black, Blue, Grey
Housing material	Metal
Sustainability certificates	RoHS

Weight and Dimensions

Weight	700 g
Dimensions (WxDxH)	67 x 100.4 x 29 mm
