Moxa Technologies NPORT 6150 User Manual

NPort 6000 Series Administration Settings
10-7

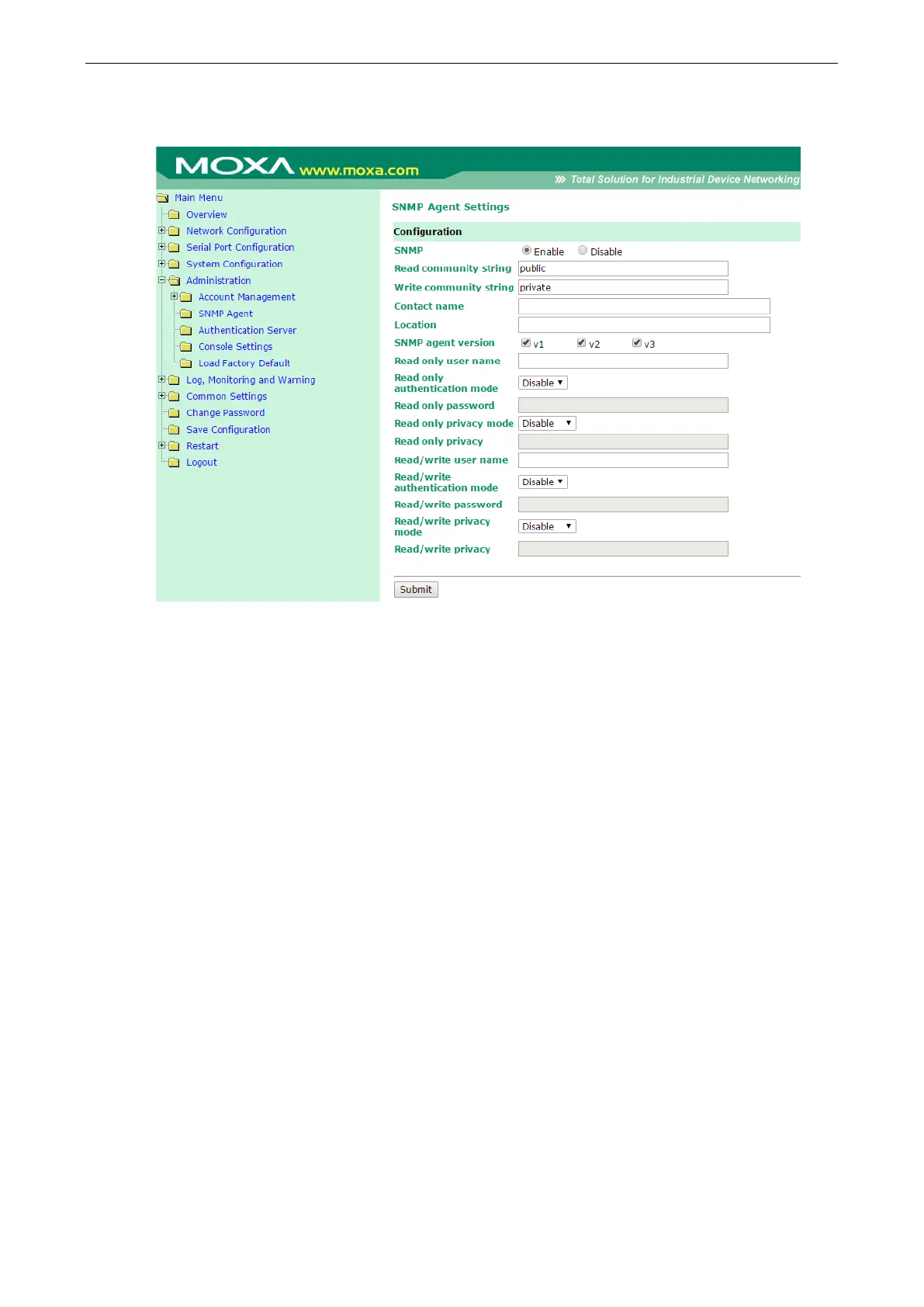

SNMP Agent
SNMP: To enable the SNMP Agent function, select the Enable option, and enter a community name (e.g.,
public).
Read community string (default=public_admin): This is a text password mechanism that is used to weakly
authenticate queries to agents of managed network devices.
Write community string (default=private_admin): This is a text password mechanism that is used to weakly
authenticate changes to agents of managed network devices.
Contact name: The optional SNMP contact information usually includes an emergency contact name and
telephone or pager number.
Location: Use this optional field to specify the location string for SNMP agents such as the NPort 6000. This
string is usually set to the street address where the NPort 6000 is physically located.
SNMP agent version: The NPort 6000 supports SNMP V1, V2, and V3.
Read-only and Read/write access control
The following fields allow you to define usernames, passwords, and authentication parameters for two levels of
access: read-only and read/write. The name of the field will indicate which level of access it refers to. For
example, Read-only authentication mode allows you to configure the authentication mode for read-only
access, whereas Read/write authentication mode allows you to configure the authentication mode for
read/write access. For each level of access, you may configure the following:
Username: Use this optional field to identify the username for the specified level of access.
Authentication mode (default=Disable): Use this field to select MD5 or SHA as the method of password
encryption for the specified level of access, or to disable authentication
Privacy mode (default=Disable): Use this field to enable to disable DES_CBC data encryption for the specified
level of access.

Moxa Technologies NPORT 6150 Specifications

General

Display	-
Baud rate	921.6 Kbit/s
Data bits	5, 6, 7, 8
Isolation	1.5 kV
Stop bits	1, 1.5, 2
RS-232 signals	CTS, DCD, DSR, DTR, GND, RTS, Rx, Tx
RS-422 signals	GND, RxD+, RxD-, TxD+, TxD-
RS-485 signals	Data+, Data-, GND, RxD+, RxD-, TxD+, TxD-
Flow Control type	RTS/CTS, XON/XOFF
Flow control support	Yes
Serial interface type	RS-232, RS-422, RS-485
Serial ports quantity	1
Ethernet LAN data rates	10, 100 Mbit/s
Surge protection voltage	0.5 kV
Mean time between failures (MTBF)	2097705 h
Cabling technology	10/100Base-T(X)
USB 2.0 ports quantity	0
Built-in processor	No
Input voltage	12 - 48 V
Power consumption	285 mA
Power source type	DC
Storage temperature (T-T)	-40 - 75 °C
Maximum operating altitude	2000 m
Operating temperature (T-T)	0 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Supported network protocols	ICMP, IPv4/v6, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1/V2c/V3, HTTP, SMTP, ARP, PPPoE
Security algorithms	AES, DES, SSH, SSL/TLS
Product color	Black, Blue, Grey
Housing material	Metal
Sustainability certificates	RoHS

Weight and Dimensions

Weight	700 g
Dimensions (WxDxH)	67 x 100.4 x 29 mm
