Moxa Technologies NPORT 6150 User Manual

NPort 6000 Series Introducing Serial Port Operation Modes
4-4
Reverse Real COM Mode
Real COM mode will not work when the NPort 6000 is using a private IP address, or if the NPort 6000 is in a
dynamic IP address environment. In either of these cases, the remote host/server will not be able to connect
to the NPort 6000.

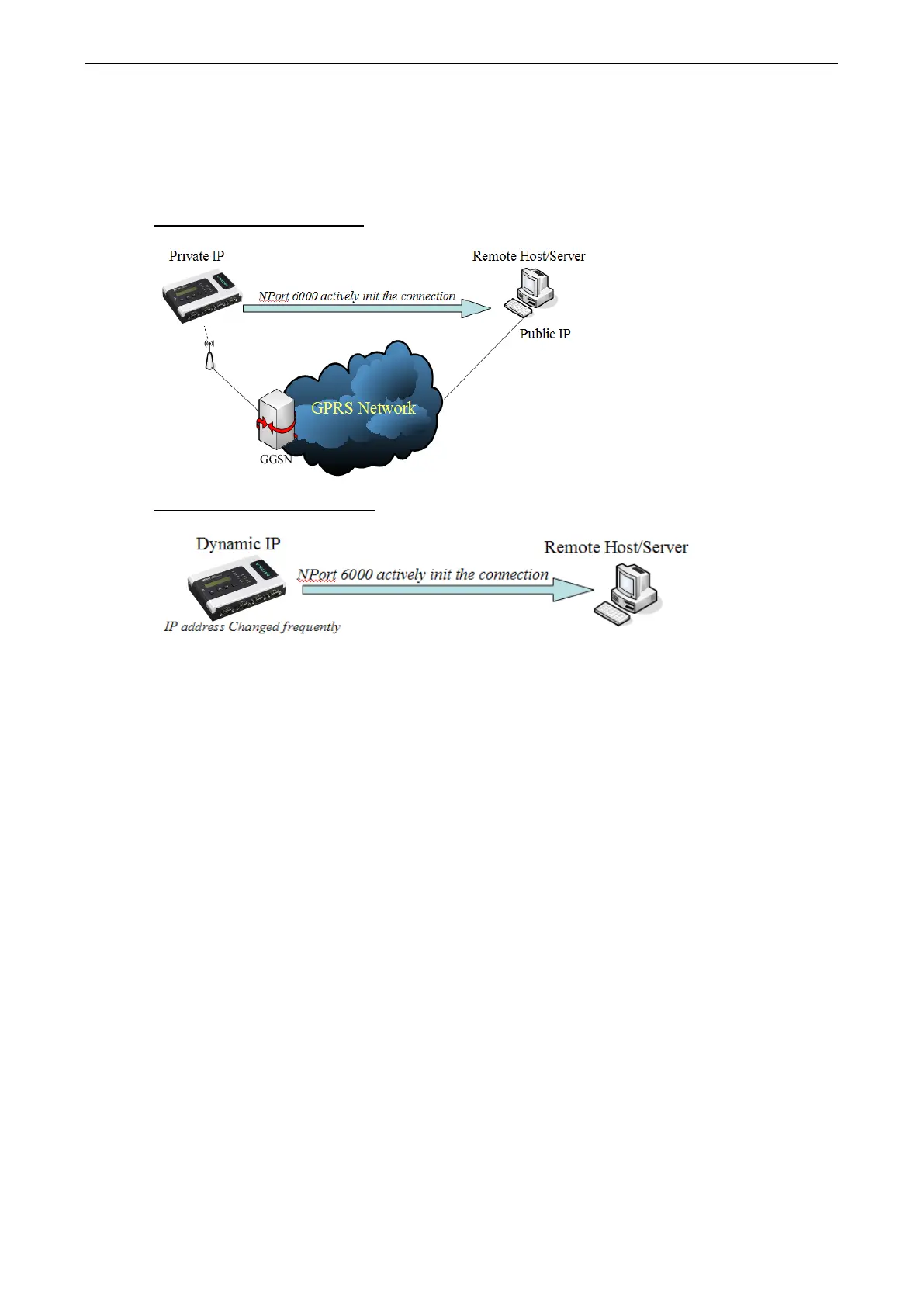

Private IP address application
Dynamic IP address application
Reserve Real COM mode is an innovative operation mode developed by Moxa. It allows NPort 6000 terminal
servers to achieve the same effect as Real COM mode, but without needing to apply for a public IP address. In
other words, Reverse Real COM mode can be used even if the NPort is using a private IP address, or is being
used in a dynamic IP address environment.
In Reserve Real COM mode, the NPort 6000 will actively initiate a connection to the remote host/server that is
listed in the destination IP field after it boots up.
RFC2217 Mode
RFC-2217 mode is similar to Real COM mode. That is, a driver is used to establish a transparent connection
between a host computer and a serial device by mapping the serial port on the NPort 6000 to a local COM port
on the host computer. RFC2217 defines general COM port control options based on the Telnet protocol. Third-
party drivers supporting RFC-2217 are widely available on the Internet and can be used to implement Virtual
COM mapping to your NPort 6000 serial port(s).

Moxa Technologies NPORT 6150 Specifications

General

Display	-
Baud rate	921.6 Kbit/s
Data bits	5, 6, 7, 8
Isolation	1.5 kV
Stop bits	1, 1.5, 2
RS-232 signals	CTS, DCD, DSR, DTR, GND, RTS, Rx, Tx
RS-422 signals	GND, RxD+, RxD-, TxD+, TxD-
RS-485 signals	Data+, Data-, GND, RxD+, RxD-, TxD+, TxD-
Flow Control type	RTS/CTS, XON/XOFF
Flow control support	Yes
Serial interface type	RS-232, RS-422, RS-485
Serial ports quantity	1
Ethernet LAN data rates	10, 100 Mbit/s
Surge protection voltage	0.5 kV
Mean time between failures (MTBF)	2097705 h
Cabling technology	10/100Base-T(X)
USB 2.0 ports quantity	0
Built-in processor	No
Input voltage	12 - 48 V
Power consumption	285 mA
Power source type	DC
Storage temperature (T-T)	-40 - 75 °C
Maximum operating altitude	2000 m
Operating temperature (T-T)	0 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Supported network protocols	ICMP, IPv4/v6, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1/V2c/V3, HTTP, SMTP, ARP, PPPoE
Security algorithms	AES, DES, SSH, SSL/TLS
Product color	Black, Blue, Grey
Housing material	Metal
Sustainability certificates	RoHS

Weight and Dimensions

Weight	700 g
Dimensions (WxDxH)	67 x 100.4 x 29 mm
