Use and warning instructions in compliance with EC regulations - Page 43
11
2
18
3
1
4
24
5
7
6
8 9 10
12 13 14 15 16 17
20 19 21
22 23

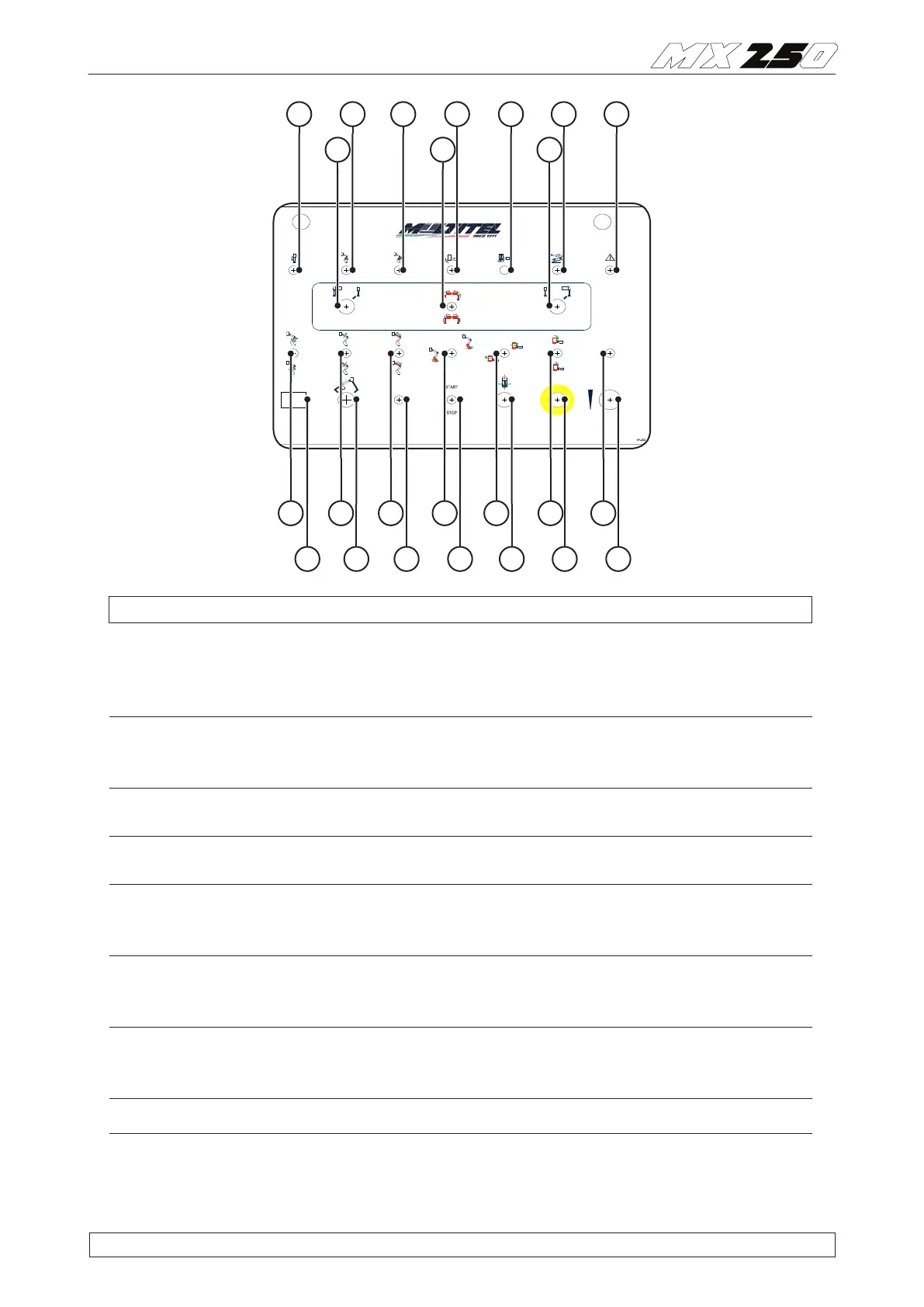

POS. DESCRIPTION
1
Key selector with two positions.
The first position allows to use the controls from the cage only, while the second position allows to use the controls from the
base-cage only.
Each position mutually excludes the others. This control is always subject to the safety checks applied to each condition of use.
2
Control of the orientation and telescopic function of the main boom.
By pushing the lever, the main boom moves up and afterwards extends, by pulling the joystick downward the main boom retracts
and afterwards moves down.
3
Control of the jib boom direction.
By pushing the lever, the second boom moves up, by pulling the joystick downward the second boom moves down.
4
Proportional control of the jib boom telescopic function.
By pushing the lever, the jib boom extends, by pulling the joystick downward, the jib boom retracts.
5
Proportional control of turret rotation.
By tilting the lever to the left, the turret rotates in a clockwise direction; by tilting the joystick to the right, the turret rotates in a
counter clockwise direction.
6
Cage rotation control.
By tilting the lever to the left, the cage rotates in a clockwise direction; by tilting the lever to the right, the cage rotates in a counter
clockwise direction.
7
START-STOP control.
To be used to stop and start the vehicle engine (push the lever to start the engine, pull the lever downward to stop it).
Even with the engine stopped, electricity is still used up; keep your eye on the batteries to make sure they are charged.
8
Fifth wheel automatic centring command / automatic rest positioning. Optional.
