5-58 Installing and Using Utilities
Procedure in NEC ESMPRO Manager
1. Select the target module in the [ft] tree.
2. Check the current state with the "State" display on the target module screen. If CPU and IO
modules of the target module are running, stop them.
3. Click the [Diagnostics] button in the [Maintenance] screen for the IO module of the target
module.
When the diagnostics is started, the CPU and IO modules are diagnosed together.
The diagnostics result can be confirmed by "Result" of the diagnostics on the target
component screen. The result of the diagnostics is reported by the server as an alert.
The result of diagnostics executed last is displayed in the [Diagnostics Information] column.
In addition, if a fault is detected by the result of the diagnostics, the state of the [General
Information] tree of the component is changed.
CHECK:
When stopping IO module, check that the status of Ethernet is “Duplex” on NEC ESMPRO
Manager. Do not stop the IO module especially when LAN is connected only to the IO
module on that side.

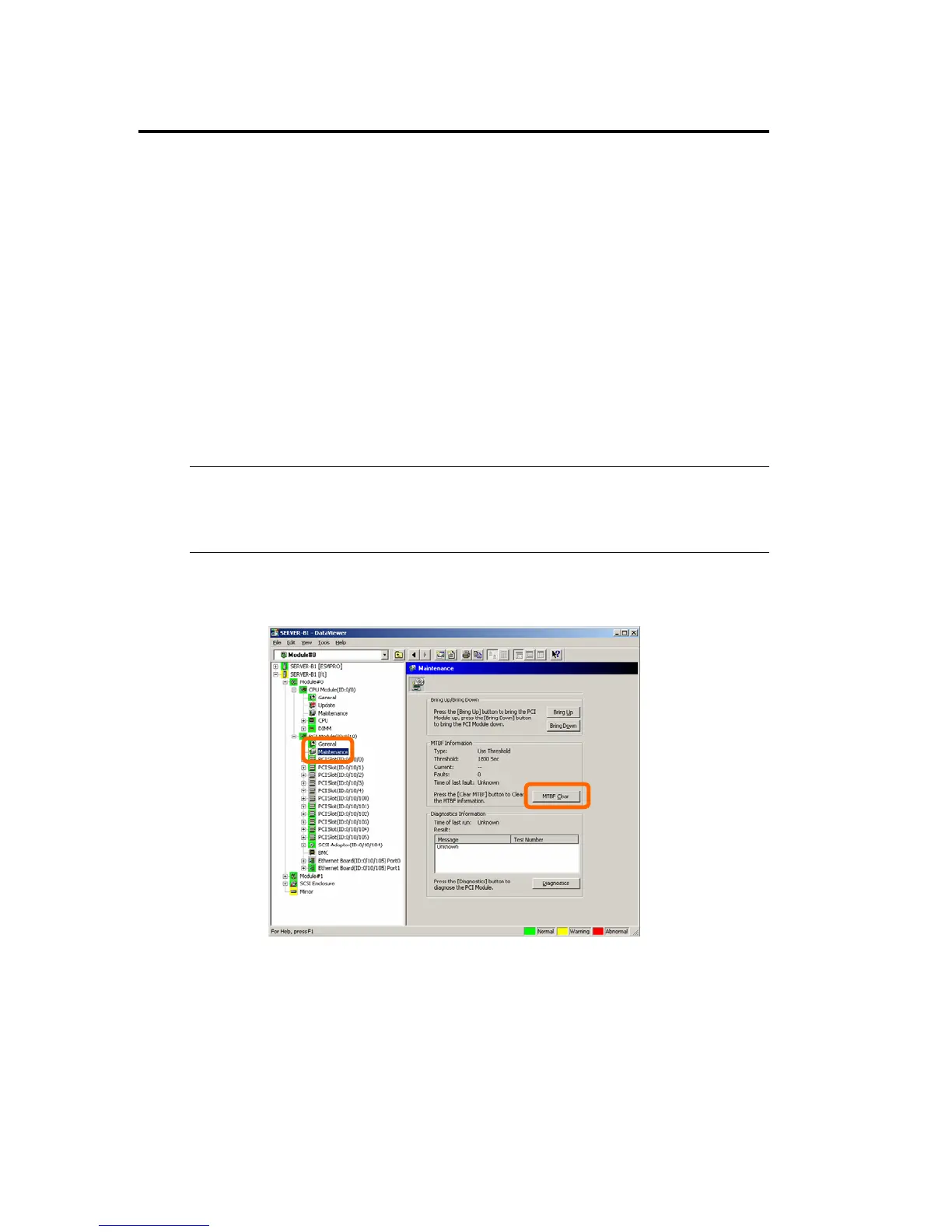

Sample screen of NEC ESMPRO Manager
[Maintenance] screen of IOᴾmodule
[PCI Module] – [Maintenance]
To Next Page
