2-6 General Description
NAMES AND FUNCTIONS OF COMPONENTS
Names and functions of components are shown below: ᴾ
ᴾ
ᴾ

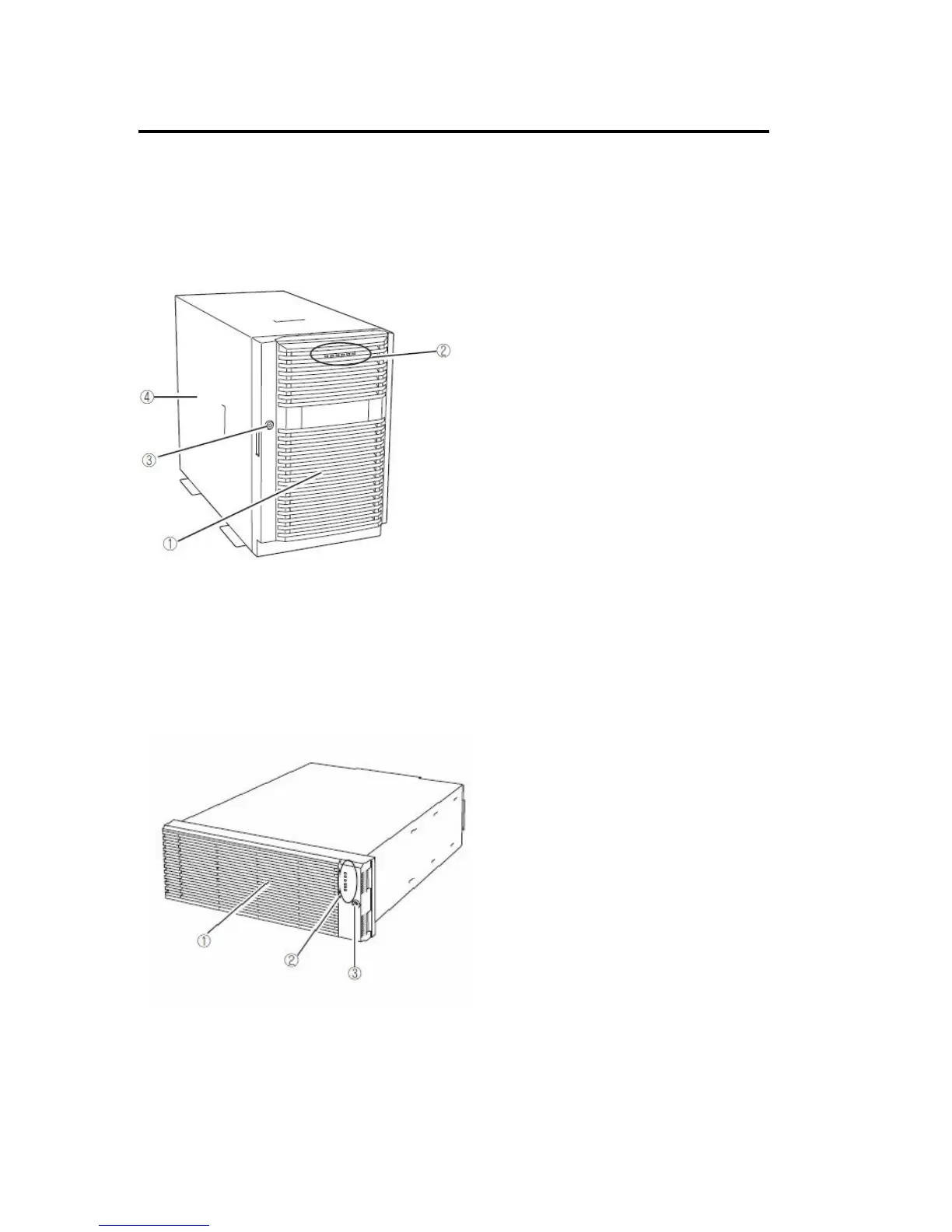

(1) Front door
The cover to protect devices in the front
in daily operations: this cover can be
locked by the security key shipped
together.
(2) LEDs
For more information, see the description
on the front view (page 2-7).
(3) Key slot
The slot you insert the security key to
unlock the front door
(4) Drive cover
The cover to be detached when removing
the backup device bay
Tower model
(1) Front bezel
The cover to protect devices in the
front: this cover can be locked by the
security key shipped together.
(2) LEDs
For more information, see the
description on the front view (page
2-11).
(3) Key slot
The slot you insert the security key to
unlock the front bezel.
Rack-mount model
