General Description 2-21

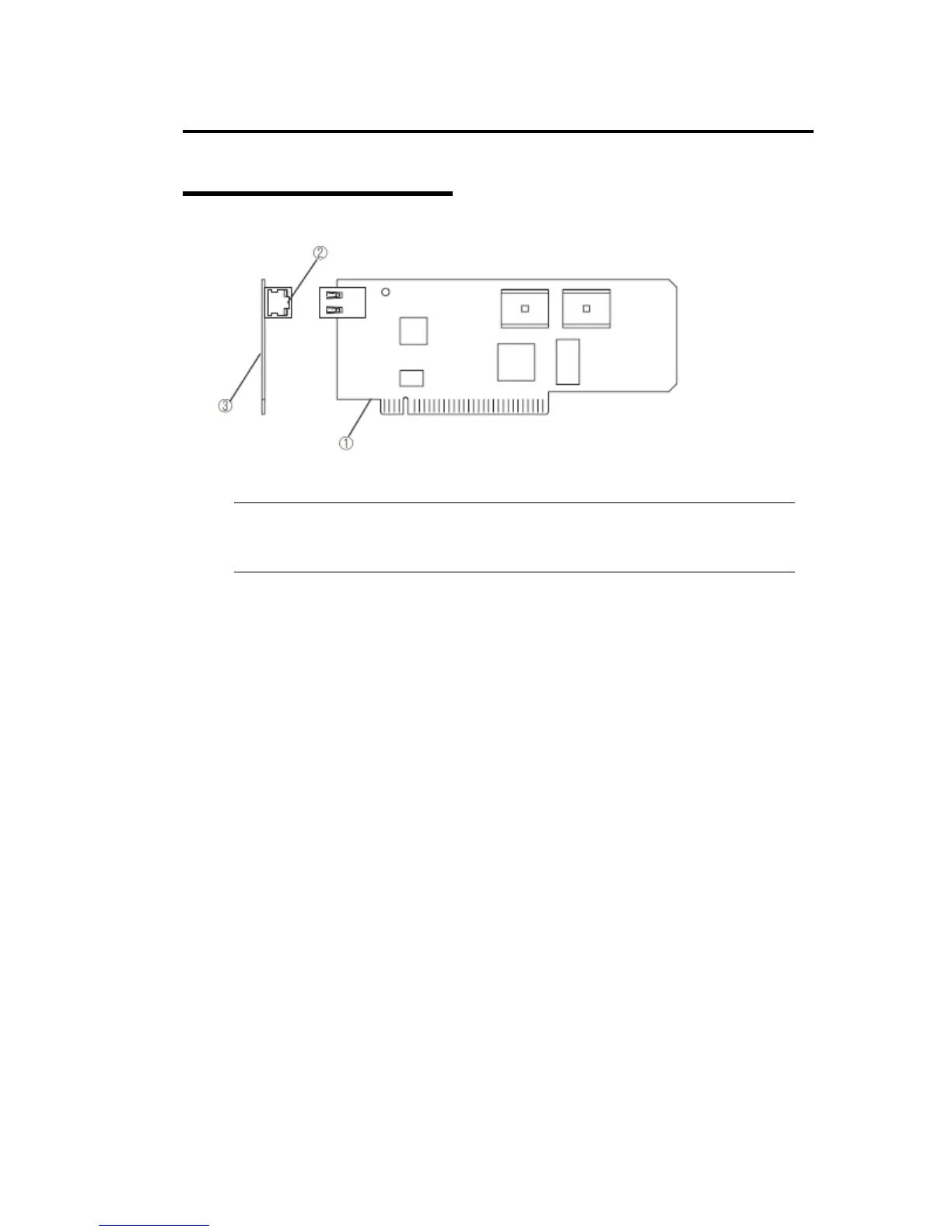

ft Remote Management Card
(1) Edge connecting to a server
This edge of the card connects to the connector for this card in this device
IMPORTANT:
Attaching this card to a slot or device other than those specified may cause problems. Do
not attach this card to any non-specified slot or device.
(2) Management LAN port
This port supporting 100Mbps/10Mbps is used to connect to a network. You cannot use this
port to connect to a telephone line directly. This port is also used for management by NEC
DianaScope, the management software shipped with the server.
LINK/ACT LED
This LED indicates the network port status. When power is supplied to this card and a
connected device such as a hub and they are connected properly, the LED illuminates in
green (LINK). When the network port is sending/receiving data successfully the LED
blinks in green (ACT).
Speed LED
This LED indicates the network interface on which network port’s communication
mode is running. When the LED illuminates in amber, it indicates the network interface
is working on 100Mbps. If the LED does not illuminate, it indicates the network
interface is working on 10Mbps.
(3) MAC address
The label containing MAC address information is attached on the other side of this card. You
can also check the MAC address on the BIOS setup screen on the server.
