DVR Server Manual

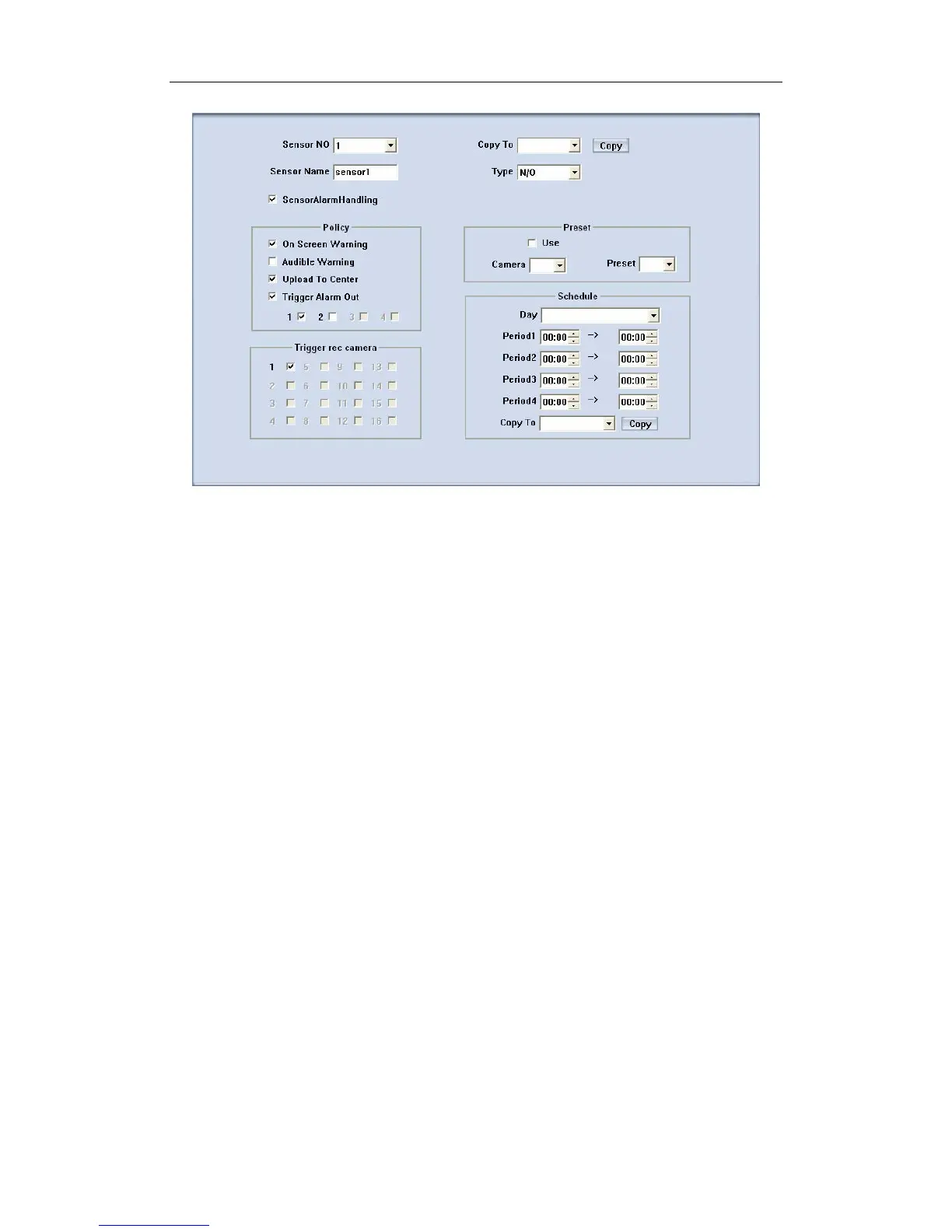

【Sensor NO】Select one sensor to be set.
【Sensor Name】Enter the name description of the sensor.
【Type】Select alarm type (sensor type) from “NO”(Normally Open) or
“NC”(Normally Closed).
【Policy】Select “Sensor Alarm Handling” firstly, handling policies will be
available as below:
On screen warning—Display the alarm information on the monitor.
Audio warning—Indicate the alarm with voice.
Upload to center—Upload the alarm information to center.
Trigger alarm out—Trigger alarm box to output the alarm.
【Trigger record camera】Set cameras to record triggered by the alarm.
You can select one or more channels. When there is an alarm input, the
cameras will be triggered to record (the record type of the channel is Alarm
Record), and the monitor will switch to preview the cameras (warning on
monitor is enable).
【Preset】Set camera that will move to its preset position when the alarm
happened.
【Schedule】Set alarm input precaution time firstly, then set time segment
according to the sequence. The time of each segment should not be
overlapped with each other and no skips are allowed. After the precaution time
of a certain day is set, you can copy the parameters to other dates by select a
day and press copy button.
89
