DVR Server Manual
Restore function.
Note:
The 4 functions as above are only suitable for the IP camera.
14. About IP Register

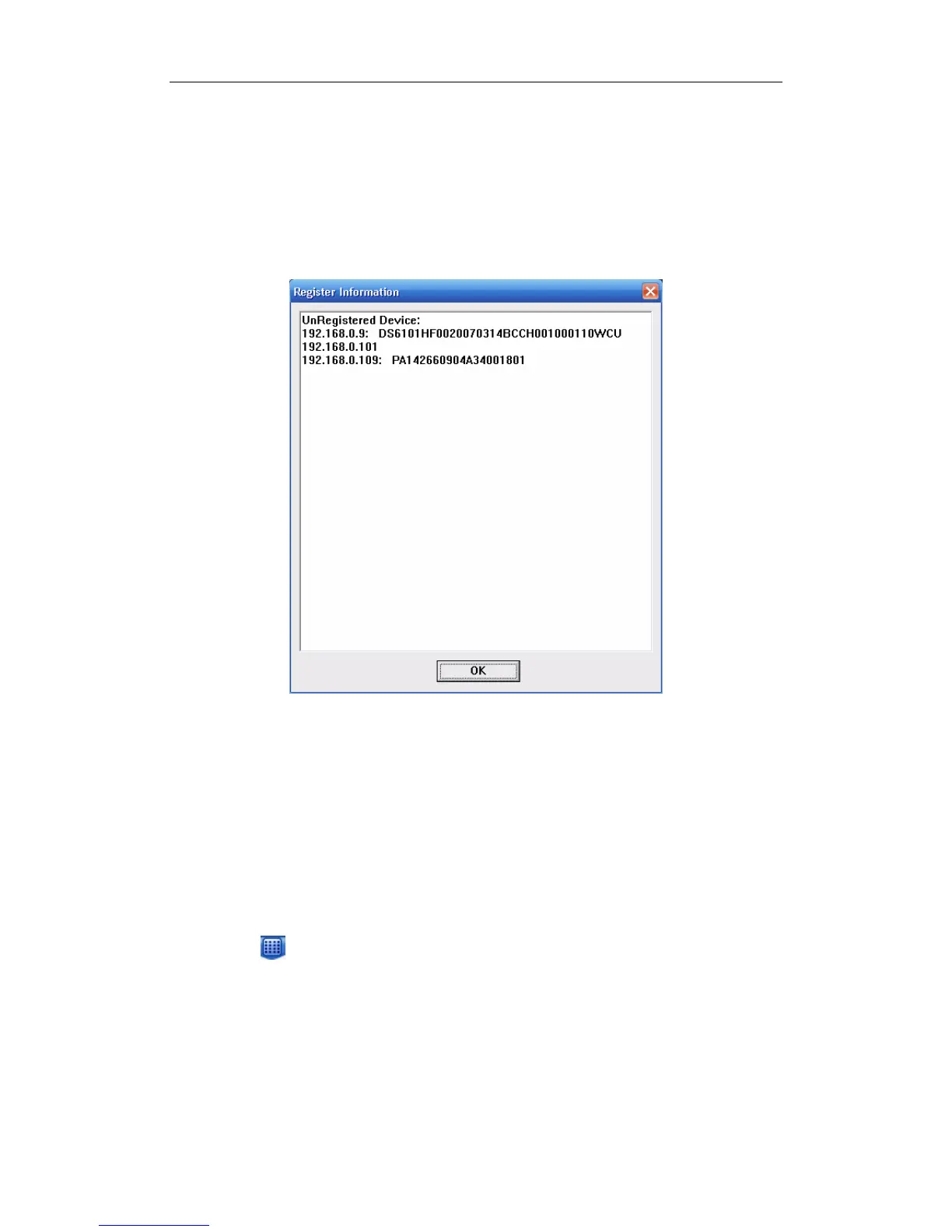

Select this option to get your register information as below:
System will display the serial number of unregistered NV series IP, DG
series EMDVR and Dahua series IP. And display the server name only when
they are registered. To other series, system will display their USB dog serial
number when they are registered. Otherwise, only display the server name.
1.4.3 Interface Description
1. Partition Mode
Press button to set the window’s partition mode of the main screen.
There are many types of partitions; the available partition is determined by the
total channels of cards, you can select the suitable partition according to the
number of video inputs.
However, the partition mode is changing according to the size of the main
interface. For example: When the size of the main interface is set as 1280*768,
the partition mode will be changed into the later one.
28
