9.1 Specifications

9-8 ZM2371/ZM2372

Pure L [H] and C [F] can be converted into |Z| [] by the following expression:

|Z|[] = 2    Frequency [Hz]  L [H]

|Z|[] = 1 / (2    Frequency [Hz]  C [F])

Approximate value can be read from the following graph.

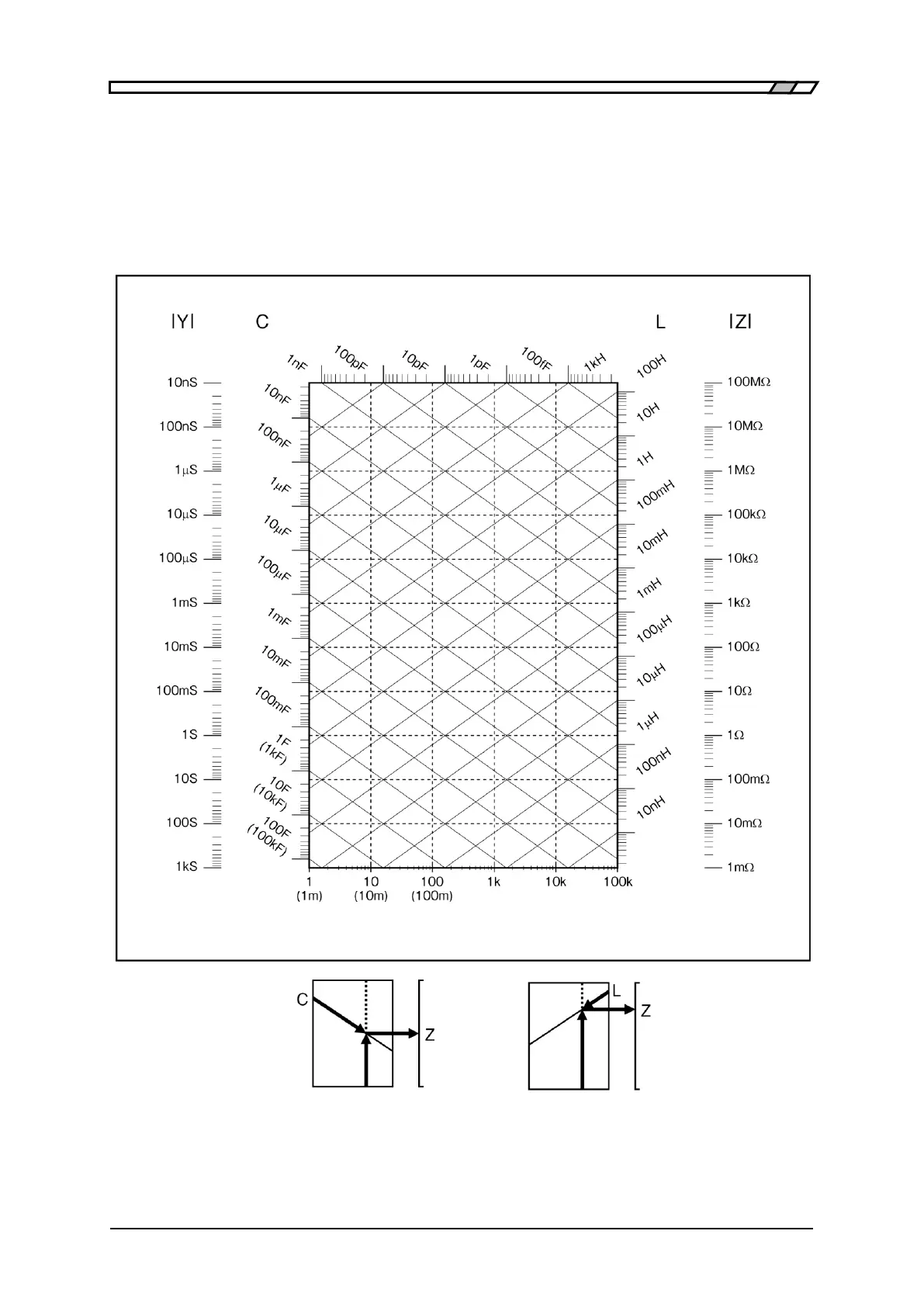

Figure 9–2 LC - Z conversion graph

Frequency Hz

Frequency
