SCHEMATIC
SLIDESMART SCHEMATICS

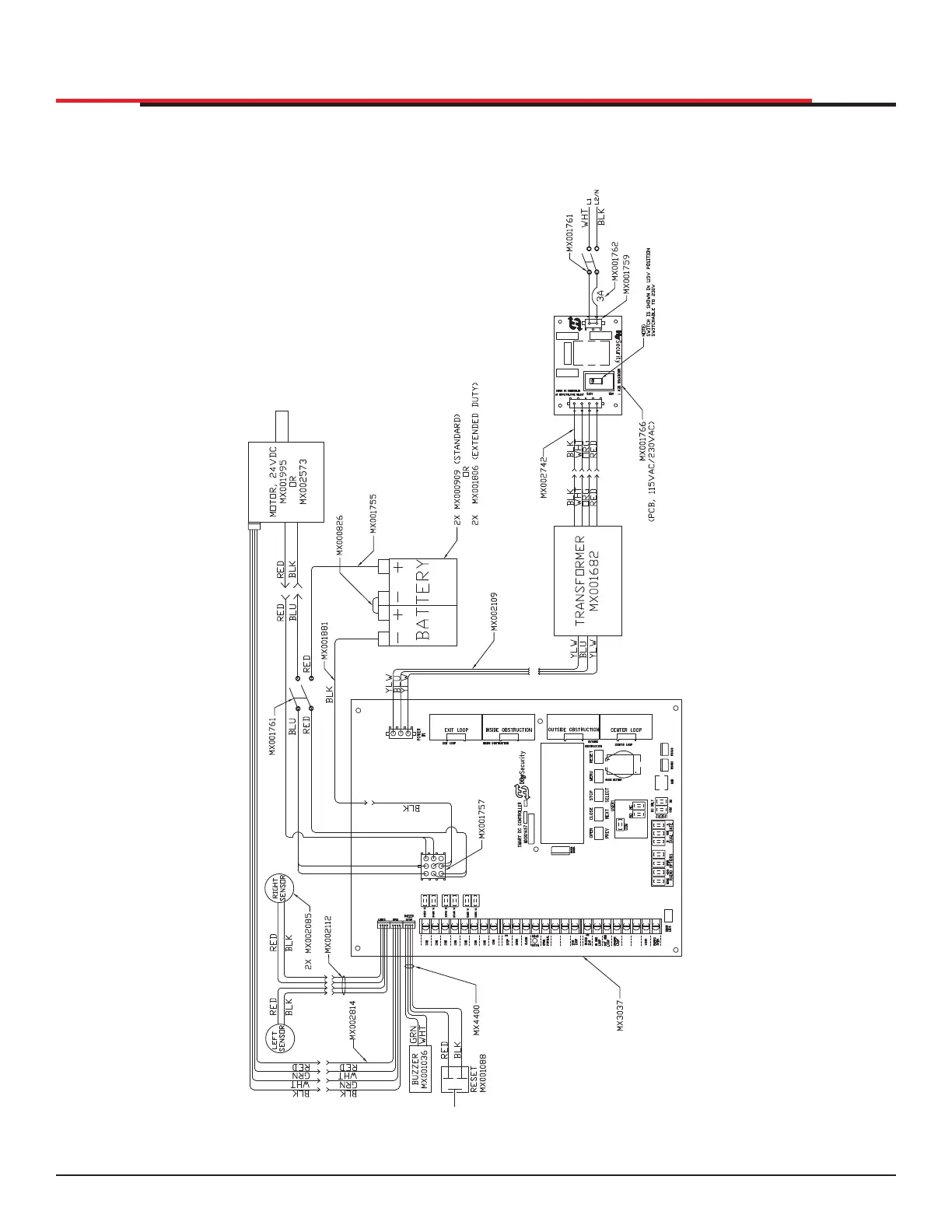

Figure 72 illustrate the schematics for SlideSmart DC HD25 and SlideSmart DC HD30.
Figure 72. SlideSmart DC HD25 andHD30 Schematics
SENSOR 2
SENSOR 3
SENSOR 1
SENSOR
COM
S1
SlideSmart HD Programming and Operations
105105
MX4435 Rev.G ©2022
